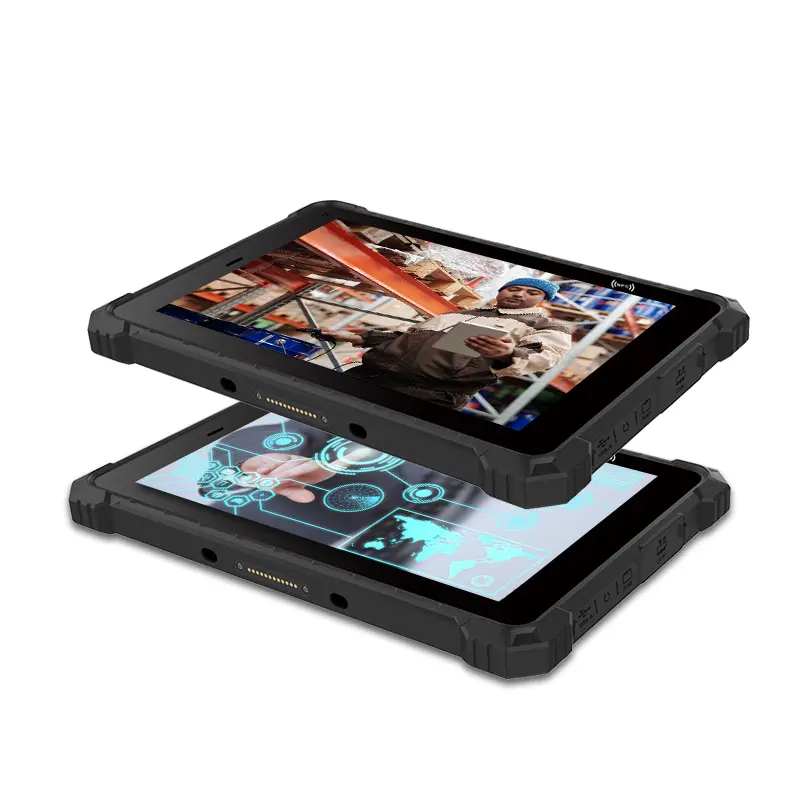

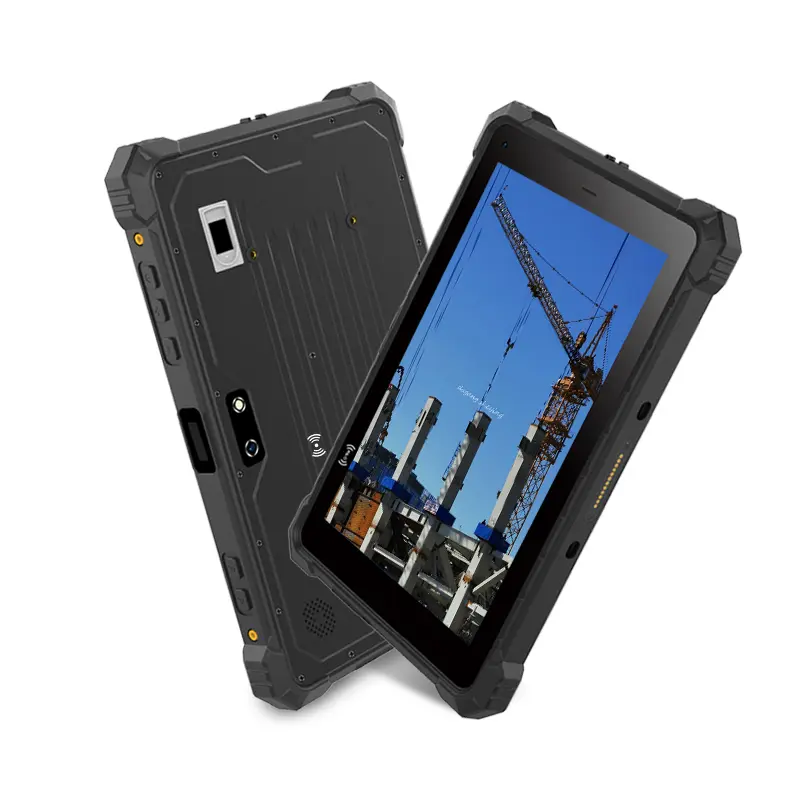

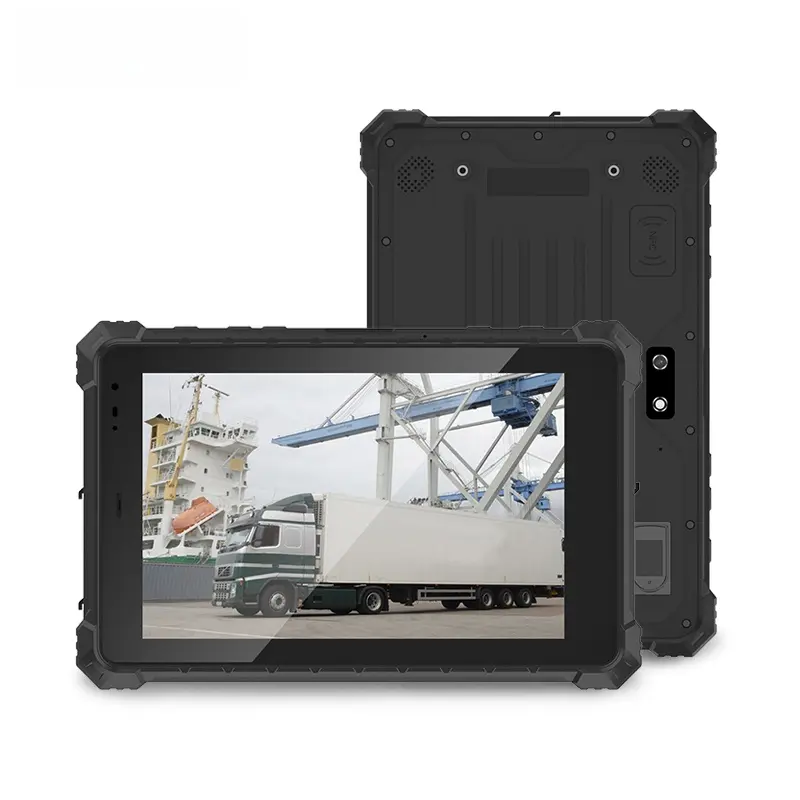

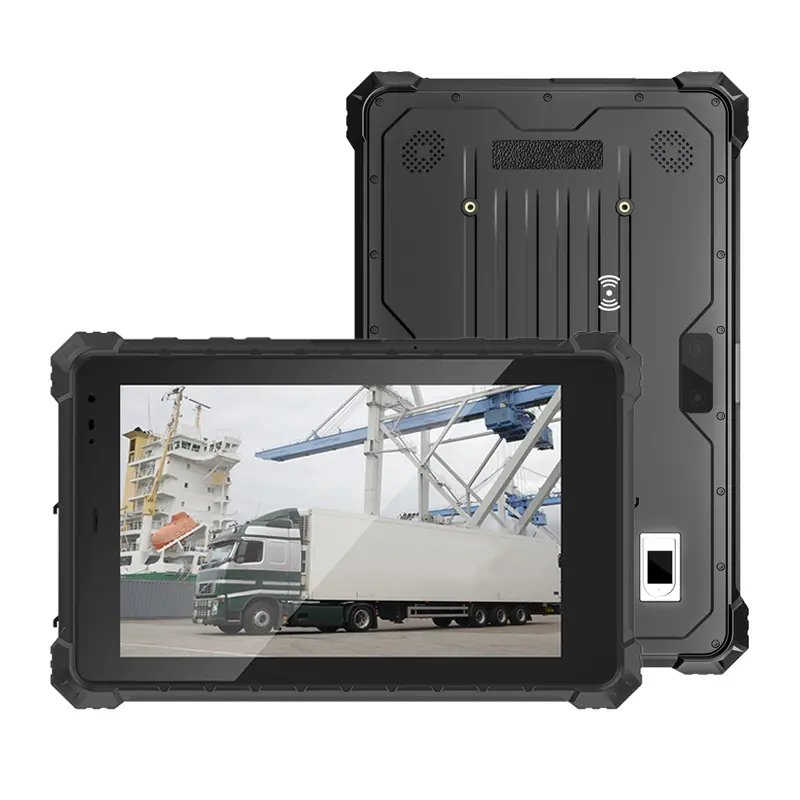

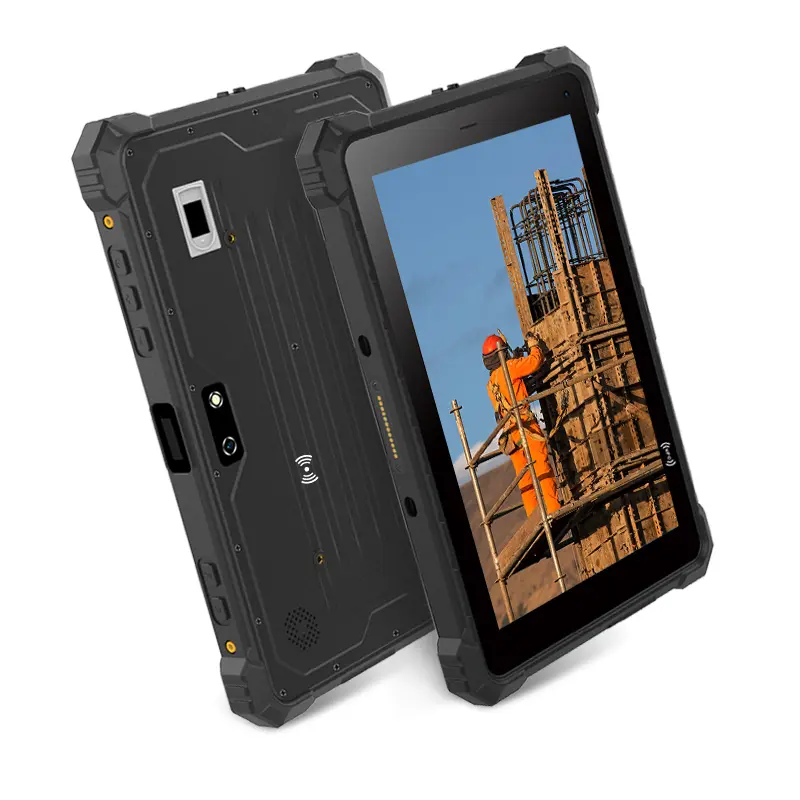

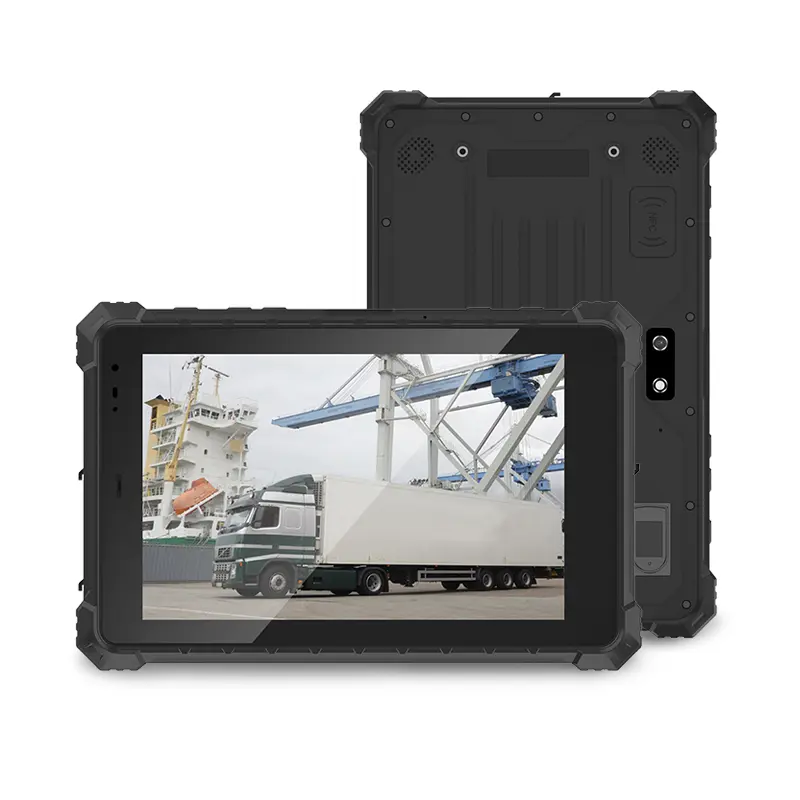

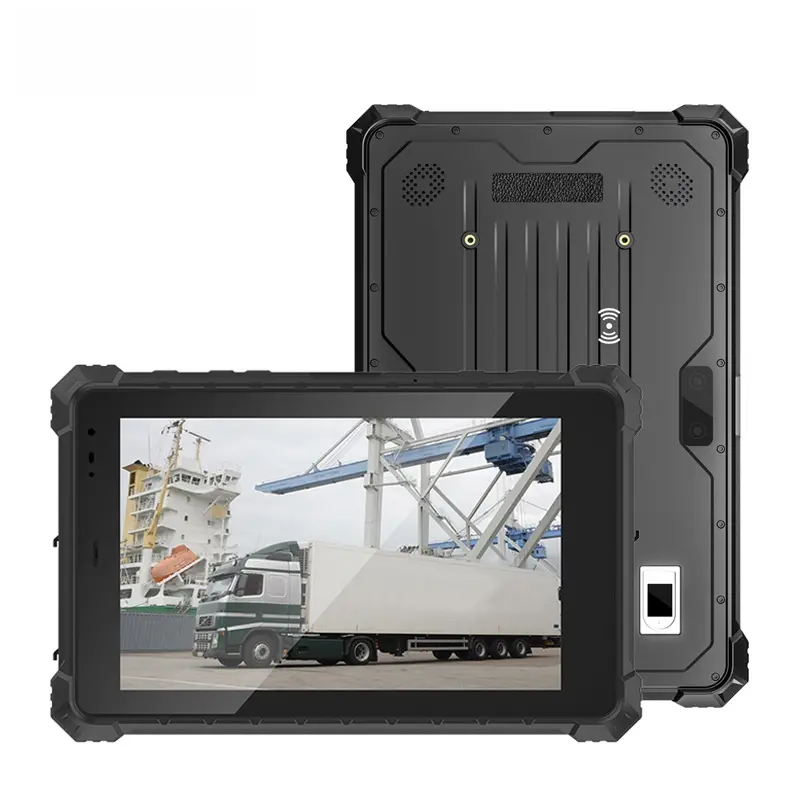

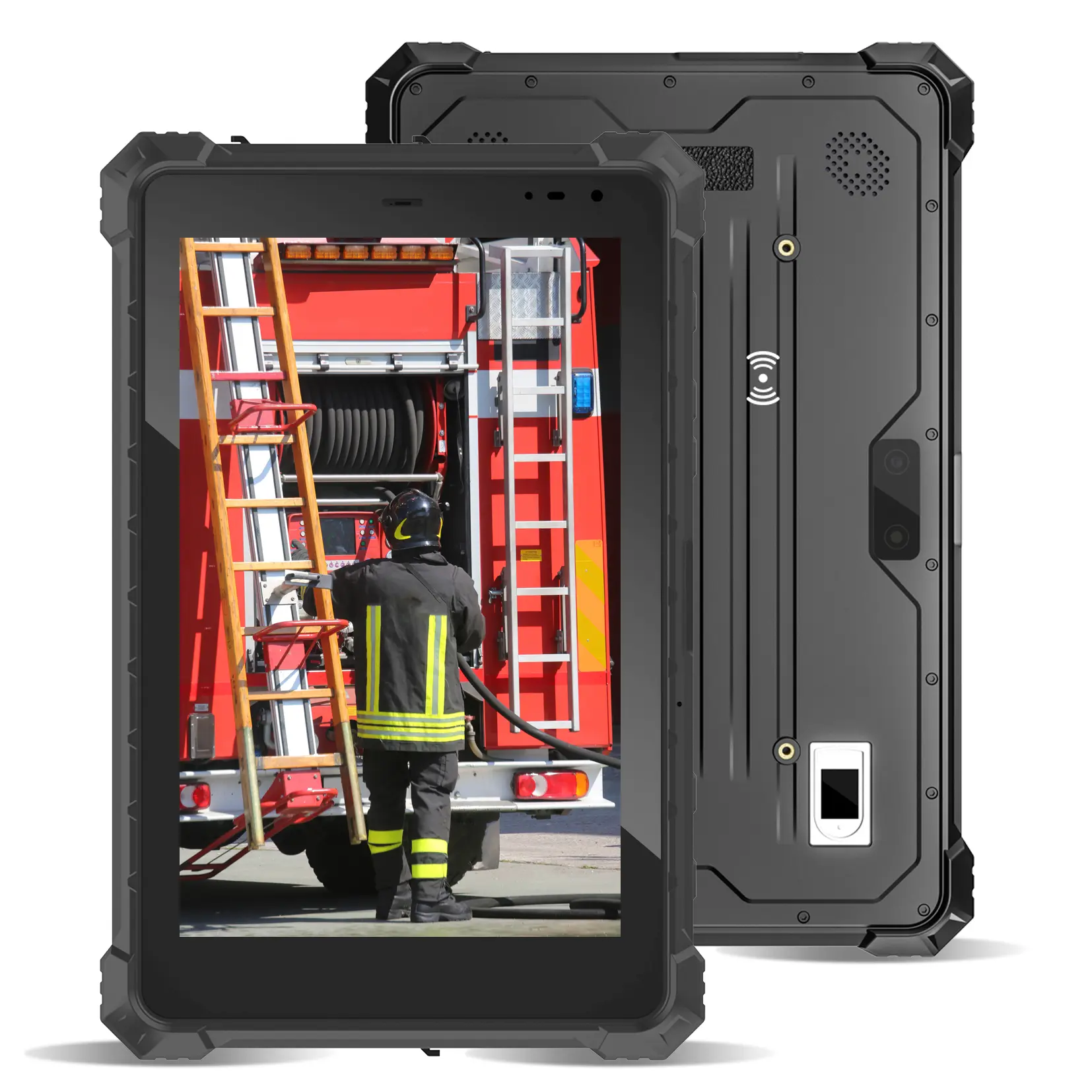

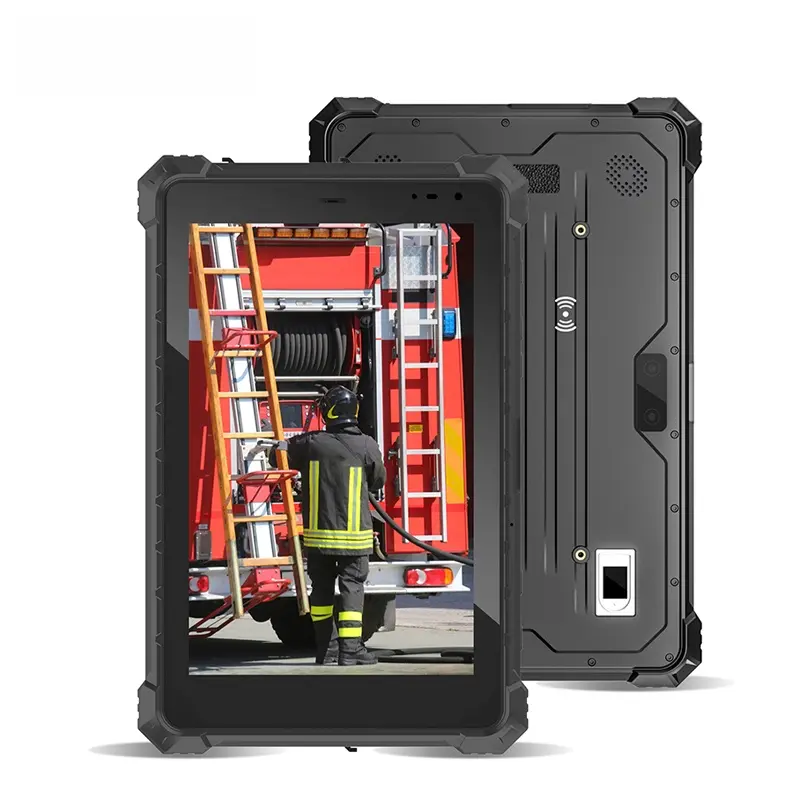

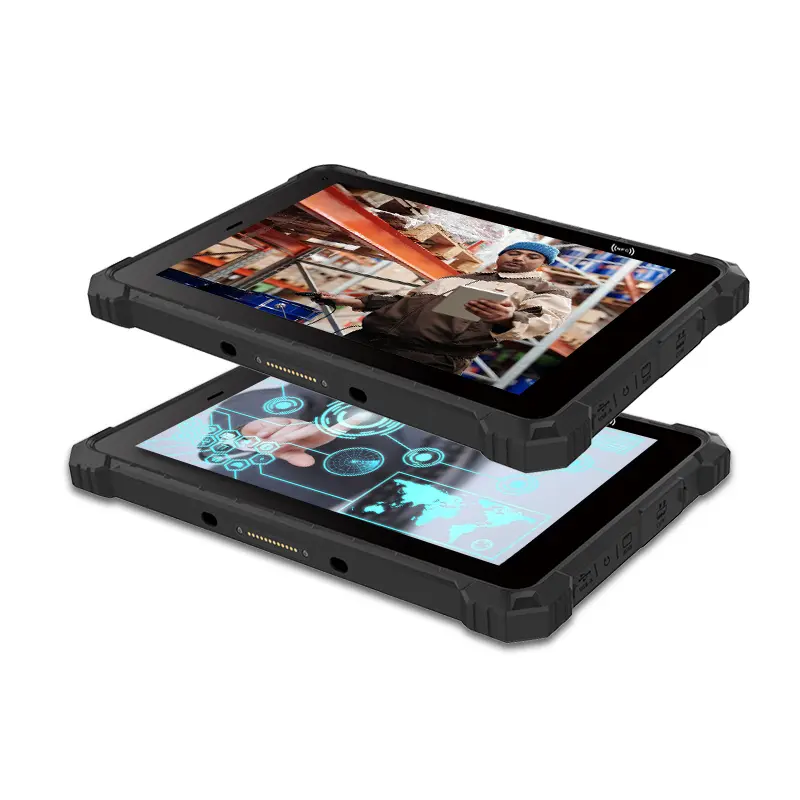

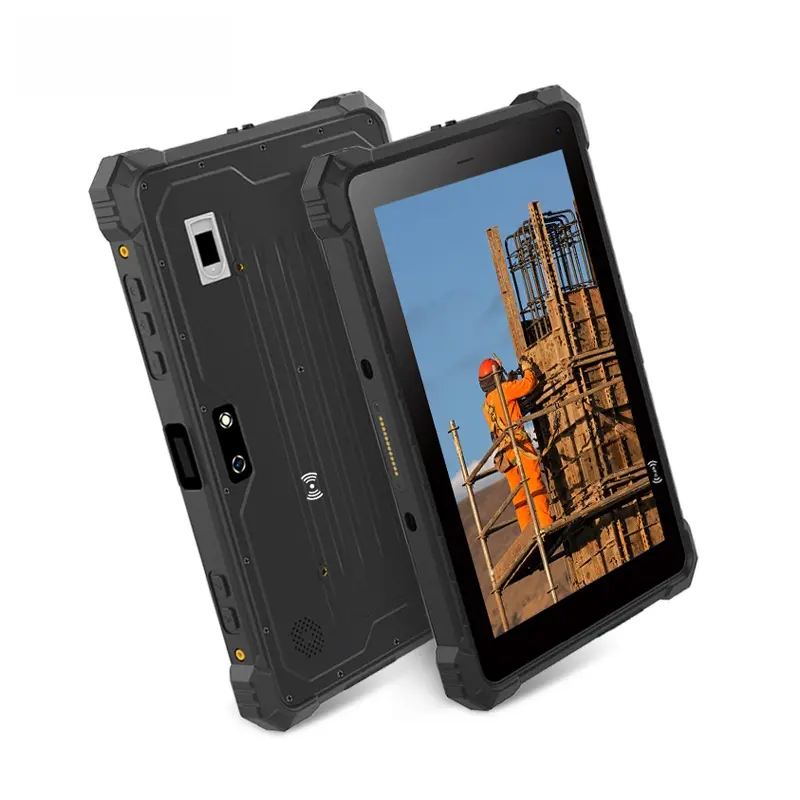

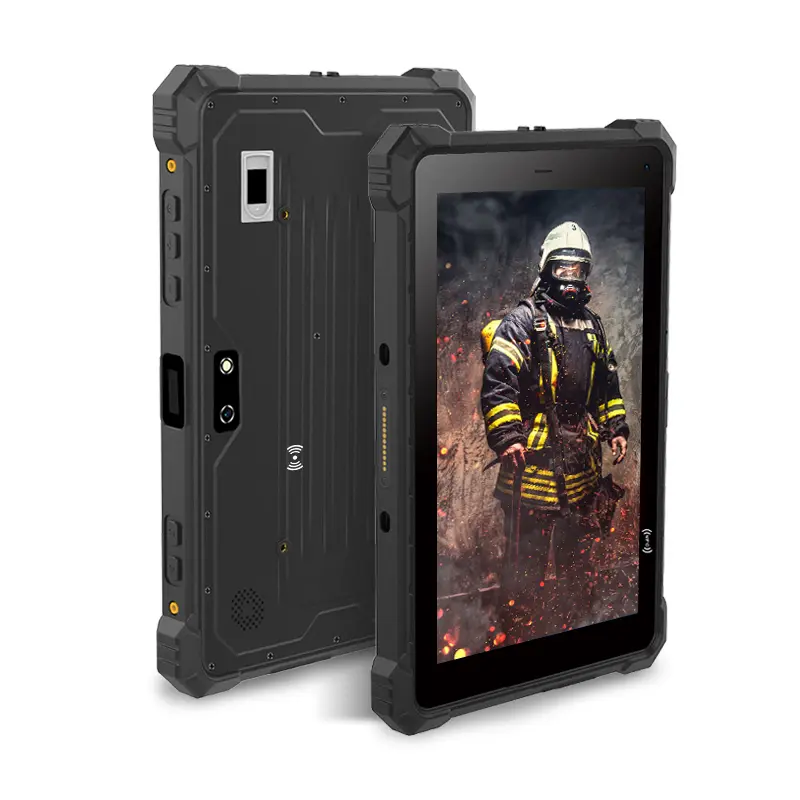

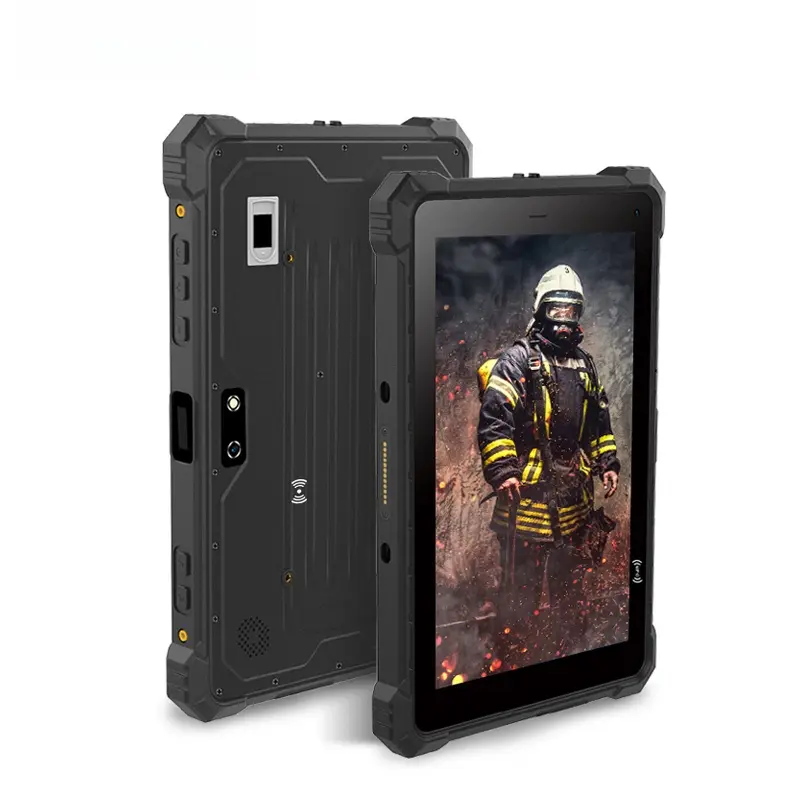

W80Y & W10Y IP68 Three Proof Rugged Tablet
W10Y 16+256GB i7 10510Y
| Product form | Model | W10Y |
| Picture |  | |
| Size weight | 276*180.5*22.5mm/1235g | |
| color | Black, color can be customized | |
| screen size | 10.1inch | |
| screen resolution | 1920*1200 | |
| screen brightness | 700cd/㎡ | |
| TP touch screen | 10-point touch G+G, hardness ≥7H, support wet hand touch screen, glove touch screen | |
| Battery | 7.6V 5000mAh high voltage lithium battery, non-removable, battery life ≥7h (1080P+50% brightness) | |
| Camera | Front camera: 5.0MP fixed focus Rear camera: 12MP auto focus | |
| Buttons | Power button*1 Volume keys*2, Vol+, Vol- Custom keys*2, P key, F key | |
| Hardware configeration | Speaker, receiver, microphone | *2, speaker 1W/8Ω aluminum film, waterproof speaker; *1, MIC,waterproof rating |
| CPU | Intel(R) Core(TM) i7-10510Y Quad Core 8 Thread 1.2GHz-4.5GHz | |
| RAM/ROM | 16G+256GB (M.2 SSD) | |
| Gravity sensor | YES | |
| Operation system | Windows 10 Windows 11(Optional ） | |
| Wireless connection | WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI |
| Bluetooth | Bluetooth 5.0 transmit distance：10m | |
| 2G/3G/4G (custom function) | GSM：Band3/8 TD-SCDMA：Band 34/39 WCDMA：Band1/8 TDD-LTE：Band38/39/40/41 FDD-LTE：Band1/3/8 | |
| 5G (custom function) | EA:Region:EMEA,Australia,Japan,Korea 5G SA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD:B34/B38/B39/B40/B41/B42 WCDMA:B1/B5/B8CN:Region:China 5G SA&NSA: N1/N28/N41/N78/N79; LTE-FDD:B1/B3/B5/B8/B28 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 | |
| GPS | GPS、Beidou, Galileo、GLONASS | |
| Date collection | 1D/2D scanner (custom function) | 2D：PDF417, QR Code, Micro QR, Data Matrix 1D：Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey |
| ID card (custom function) | Standard second-generation offline Ministry of Public Security certified ID card reader module | |
| UHF (custom function) | （optional ） distance1：1.5M-3M: distance2：5M-8M distance3：10M-18M | |
| NFC High frequency (custom function) | 13.56MHZ adapt 14443A/14443B/15693 protocals | |
| Fingerprint (custom function) | 1: Ordinary industrial fingerprint 2: Fingerprint certified by the Ministry of Public Security 3: FBI certified fingerprint | |
| Ports | TYPE-C | *1，Type-C USB3.0 |
| Type -A | *1，Type-A USB3.0 | |
| DB9 | *1，RS232 | |
| Earphone Jack | *1，3.5mmStandard headphone jack | |
| TF Card | *1，Maximum support 256GB expansion | |
| SIM Card | *1，Standard Micro SIM card slot | |
| MINI HDMI | *1，Micro HDMI | |
| DC port | *1，12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) | |
| POGO PIN | *1，12Pin USB+charger | |
| RJ45 | *1，100/1000M | |
| Product reliability | Drop height | 1.2m Free fall to wooden floor |
| Working temperature | ‘-20℃~60℃ | |
| Storage temperature | ’-30℃~70℃ | |
| Humidity | Humidity: 95% Non-Condensing | |
| Certificates | IP68, 3C, CE, US military standard-810G certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test | |
| Adapter | 12V-4A，DC interface adapter | |
| Strap |  | |
| Tempered film（Optional) |  | |
| Strap（Optional) |   | |
| Base (optional purchase) |    | |
| Fixed bracket (without base charger) (optional) |      | |
| Full aluminum alloy desktop bracket (optional) |     | |
| Portable waterproof case (optional) |    | |
