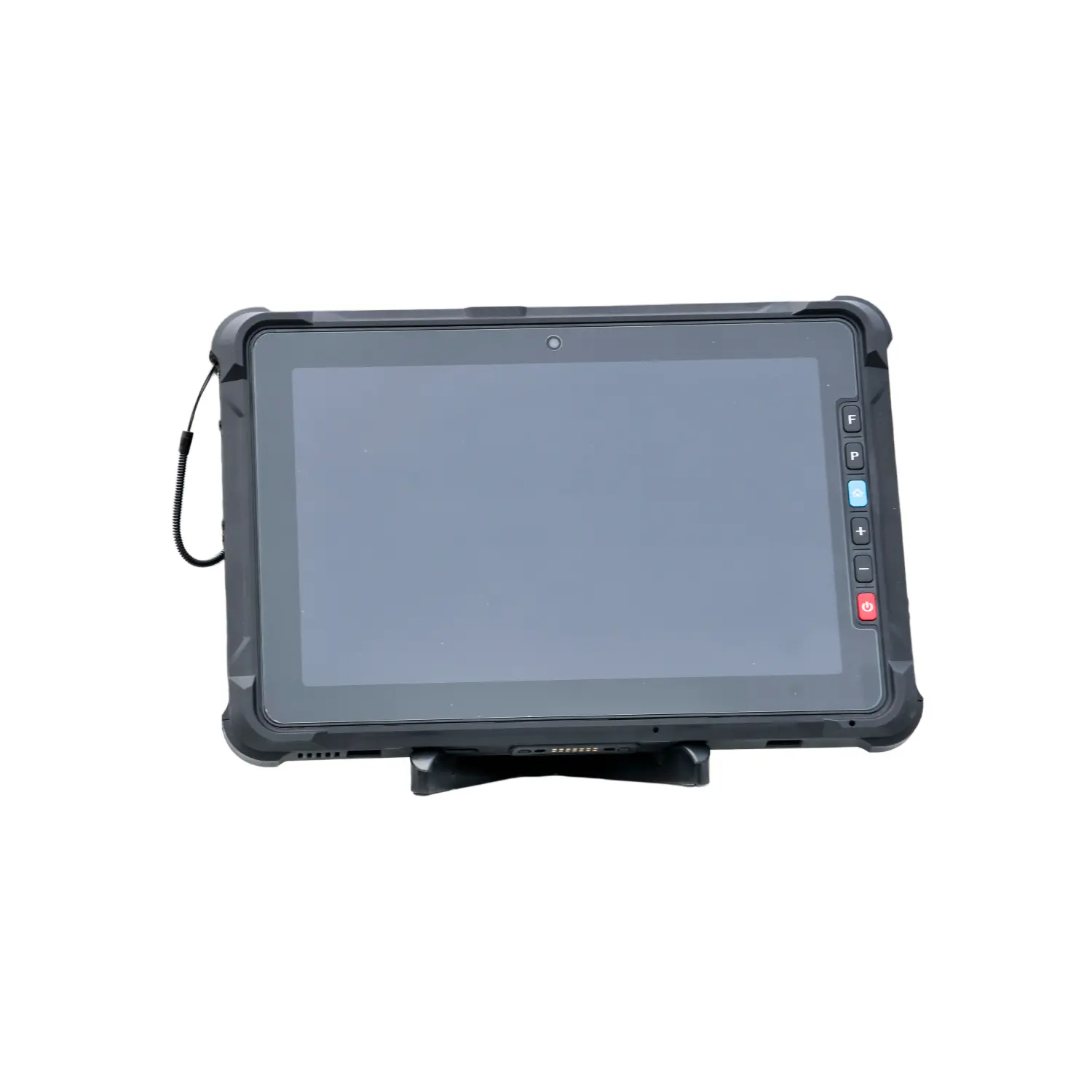

A1095Z IP65 Three Proof Rugged Tablet

A1095Z P7885-Octa-core 10.95  inch-8+128_12+256GB-RJ45 USB3.0  4G5G 2D fingerprint NFC ID card UHF

Category:

Product form Model A1095Z
Explosion-proof(optional ) Petrochemical Class II,Mining Class I,Coal Safety Class I
Size weight Bare metal: 300.5*204.1*23.3mm/Approx.1500g
Wall hole pitch / screw 258.5×177.5mm/ M4.5*4.5mm
color Black, color can be customized
screen size 10.95inch
screen resolution 1920*1200
screen brightness 550cd/㎡
TP touch screen 10-point touch G+FF, hardness ≥6H, supports touch screen with wet hands, touch screen with gloves
Battery 3.8V 20000mAh high-voltage lithium battery, removable, battery life ≥8h (1080P+50% brightness)

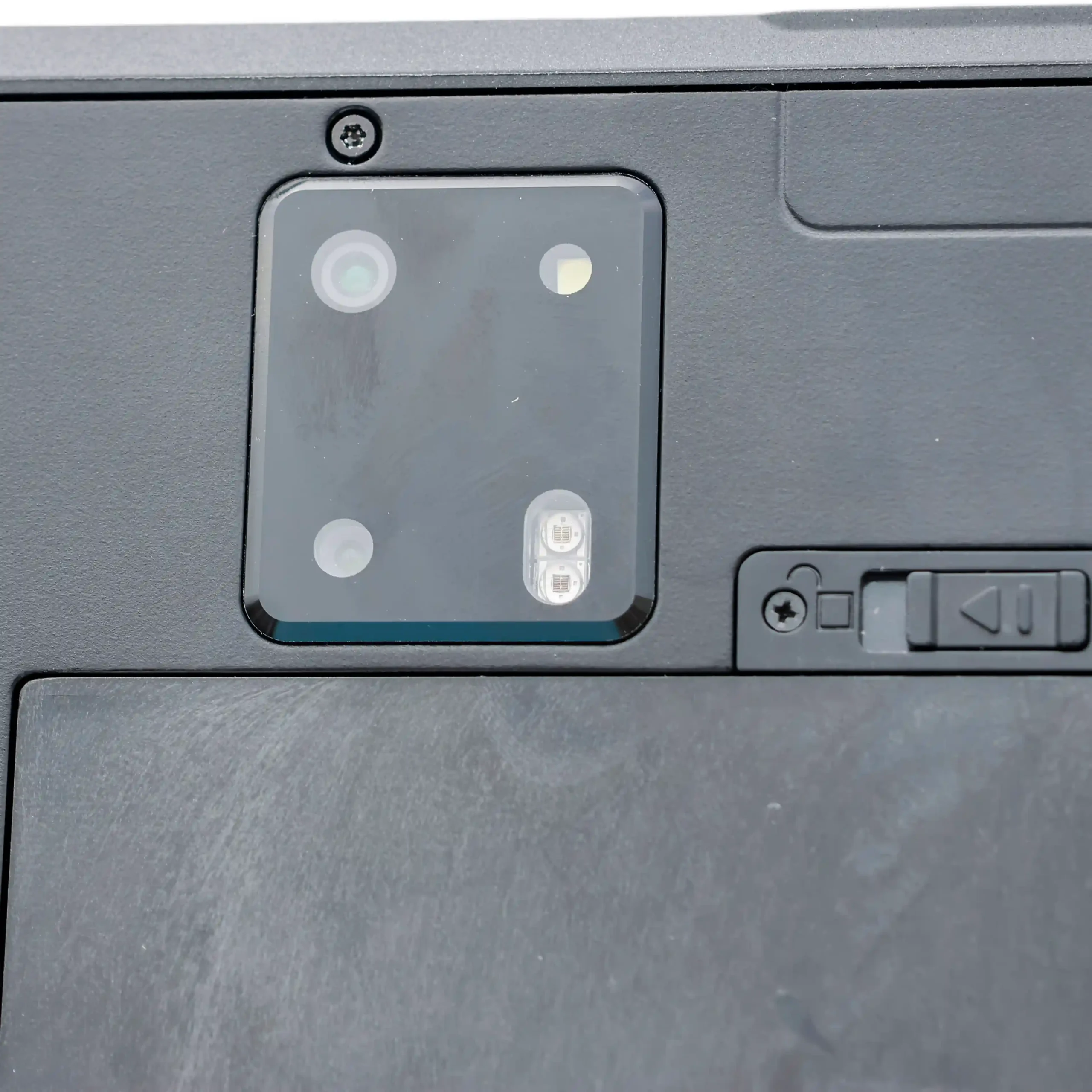

Camera Front Camera: 24.0MP Fixed Focus Camera
Rear Camera: 48.0MP Autofocus Camera with Flash
Optional: 2000W Night Vision/Scan Head (choose one), Thermal Imaging/Fingerprint (choose one)

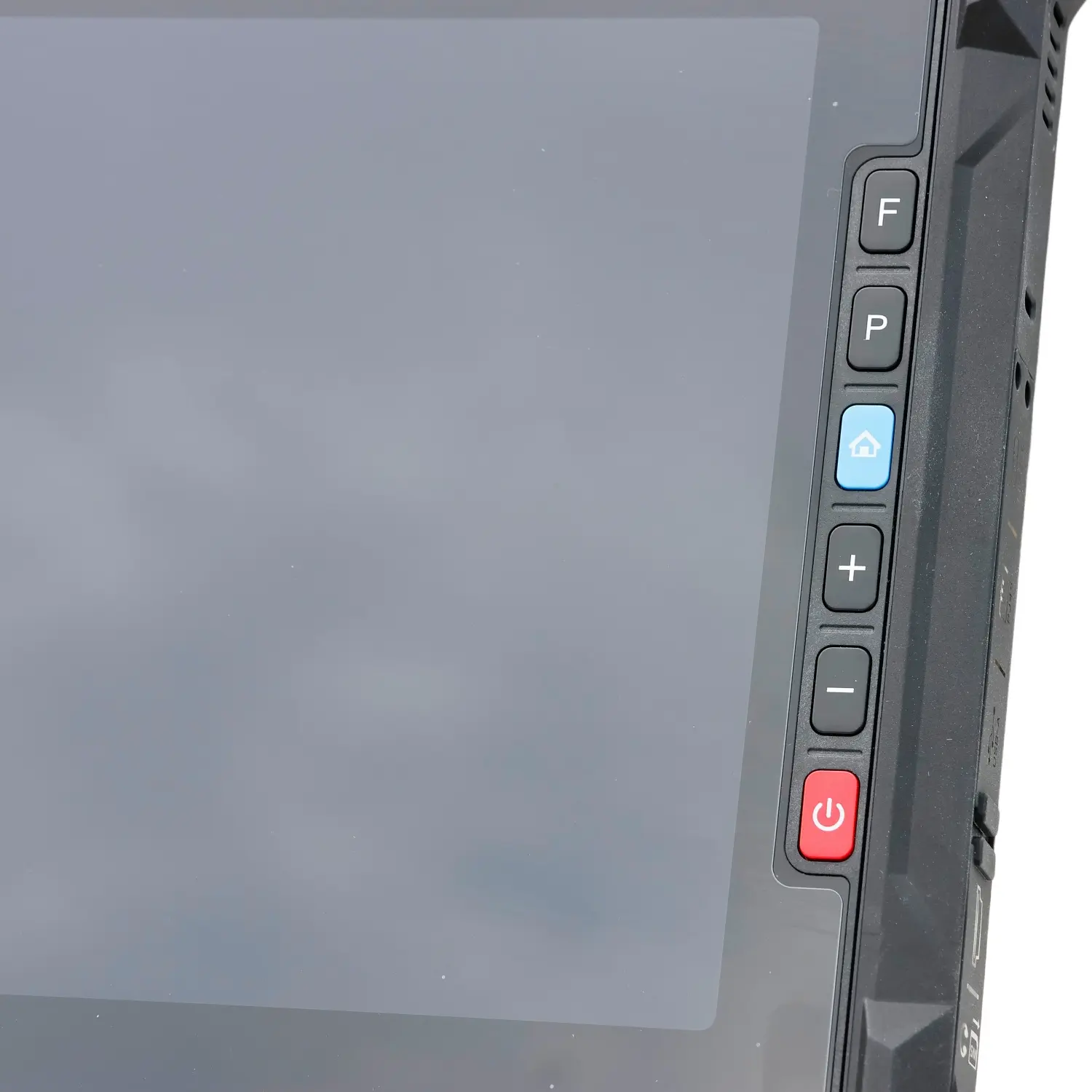

Buttons Power button*1
Volume keys*2, Vol+, Vol-
Custom keys*2, P key, F key
Home button*1
Hardware
configeration
Speaker, MIC,Motor *2, speaker 2W/4Ω
*2,  MIC,
*1, Motor, 1234
CPU Unisoc P7885 8-core 2.7GHz
RAM/ROM Standard configuration: 8+128G/12+256G, with a maximum support of 12G+512G
Gravity sensor YES
Compass YES
Gyroscope YES
Light sensor YES
Proximity sensor YES
NFC high frequency YES
System Operation system Standard Android 16
Wireless connection WIFI WIFI 802.11(a/b/g/n/ac)  WIFI5
Bluetooth Bluetooth 5.0  transmit distance:10m
2G/3G/4G/5G
(custom function)
Global Pass:
GSM:B2/B3/B5/B8;WCDMA:B1/2/4/5/6/8/19;CDMA:BCO/BC1/BC10;
FDD:B1/2/3/4/5/7/8/18/19/20/25/26/28/66
TDD:B34/38/39/40/41
5G NSA:N1/3/5/7/8/20/28/38/40/41/77/78/79
5G SA:N1/3/5/7/8/20/28/38/40/41/77/78/79
Positioning system GPS、Beidou, Galileo、GLONASS
Date collection 1D/2D scanner
(custom function)
Medium configuration(N4680):0.3M Pixels+Code 39 5mil 65~150mm+Red light
Read code system:
2D:Codablock A, CodablockF, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, 中文Sensible, Grid Matrix, Dot Code
1D:Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93ī, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC-E, UPC-A/EAN-13 with extension, Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 DataBarHigh configuration(N670)1.0M Pixels+Code 39 5mil 45~200mm+Cross laser
Read code system::
2D:QR Code, Data Matrix, PDF417,Han letter code,Dotcode
1D:UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar,MSI/MSI PLESSEY, GS1 DataBar
OCR:Support OCR-A,OCR-B
Optional 2000W night vision/scanning head (choose one)
ID card (custom function) Standard second-generation offline Ministry of Public Security certified ID card reader module
(customizable with a choice of second-generation ID card, ultra-high frequency, or Tiantong module)
Tiantong Module
(customized function)
Specialized communication module for the standard Tiantong-1 satellite communication system (customizable with a choice of second-generation ID card, ultra-high frequency, or Tiantong module)
UHF (custom function) (optional )
distance1:≤2M,Service frequency 840-960MHz
distance2:≤5M,Service frequency 860-960MHz
(customizable with a choice of second-generation ID card, ultra-high frequency, or Tiantong module)
Thermal imaging
(customized function)
Tiny1-C, miniature thermal imaging, 256*192/160*120 (supports batch customization), optional thermal imaging/fingerprint (choose one)
Low-light night vision
(customized function)
20MP, low-light night vision camera/scanner (choose one)
Fingerprint (custom function) 1: Ordinary industrial fingerprint
2: Fingerprint certified by the Ministry of Public Security
3: FBI certified fingerprint
Fingerprint/thermal imaging (choose one)

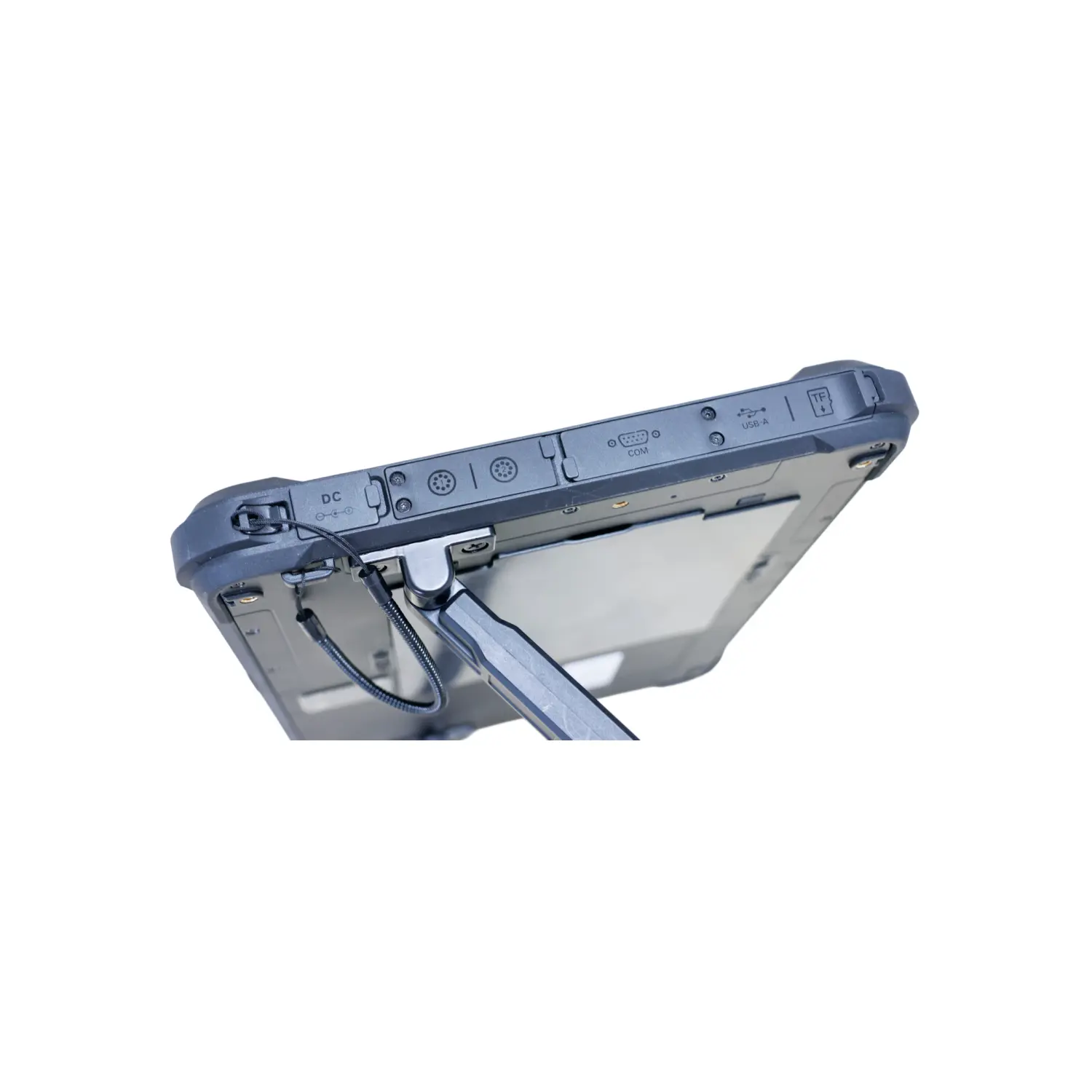

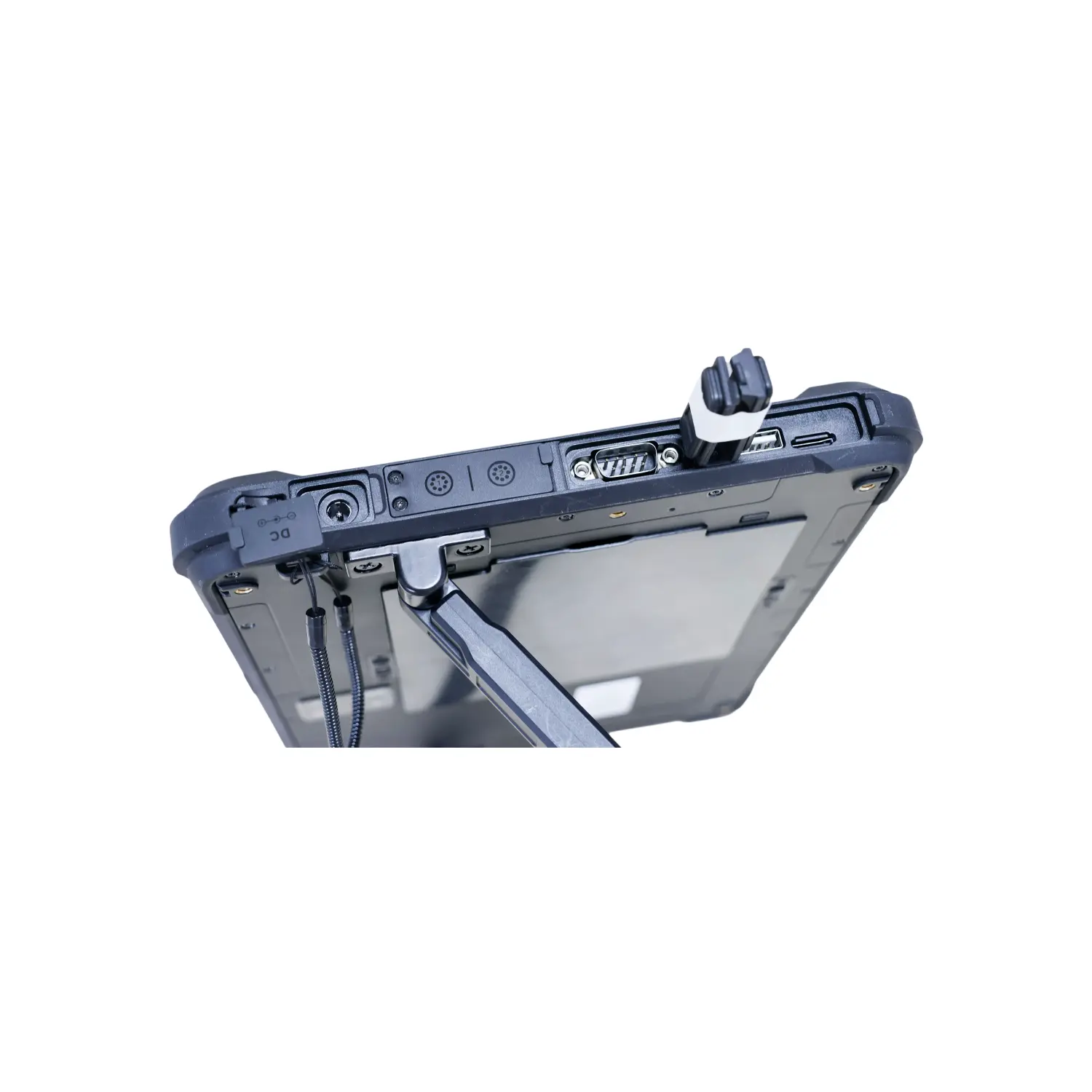

Ports TYPE-C *1, Type-C USB 3.0 full functionality (Android only supports one USB 3.0 port), supports 33W fast power adapter
Type -A *2,Type-A USB2.0
DB9 *1,RS232 serial port (optional 232/422/485 protocol)
Earphone Jack *1,3.5mmStandard headphone jack
TF Card *1,Maximum support 1T expansion
SIM Card *1,Standard Micro SIM card slot
HDMI *1,HDMI
DC port *1,5V-3A (DC plug OD 5.5mm ID 2.1mm)
RJ45 *1,100M
POGO PIN *1,14Pin USB+charger
Locking holes *1,lock hole

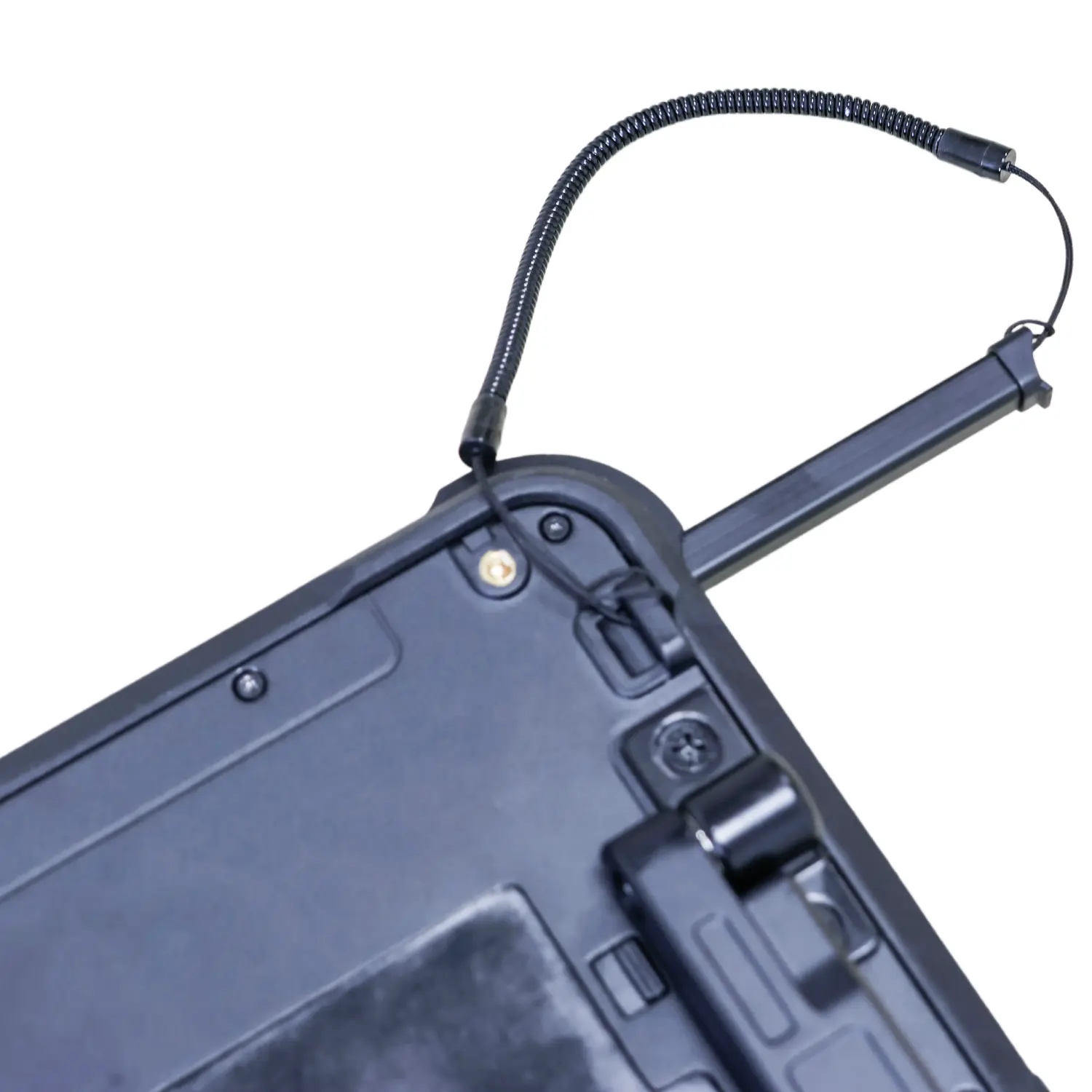

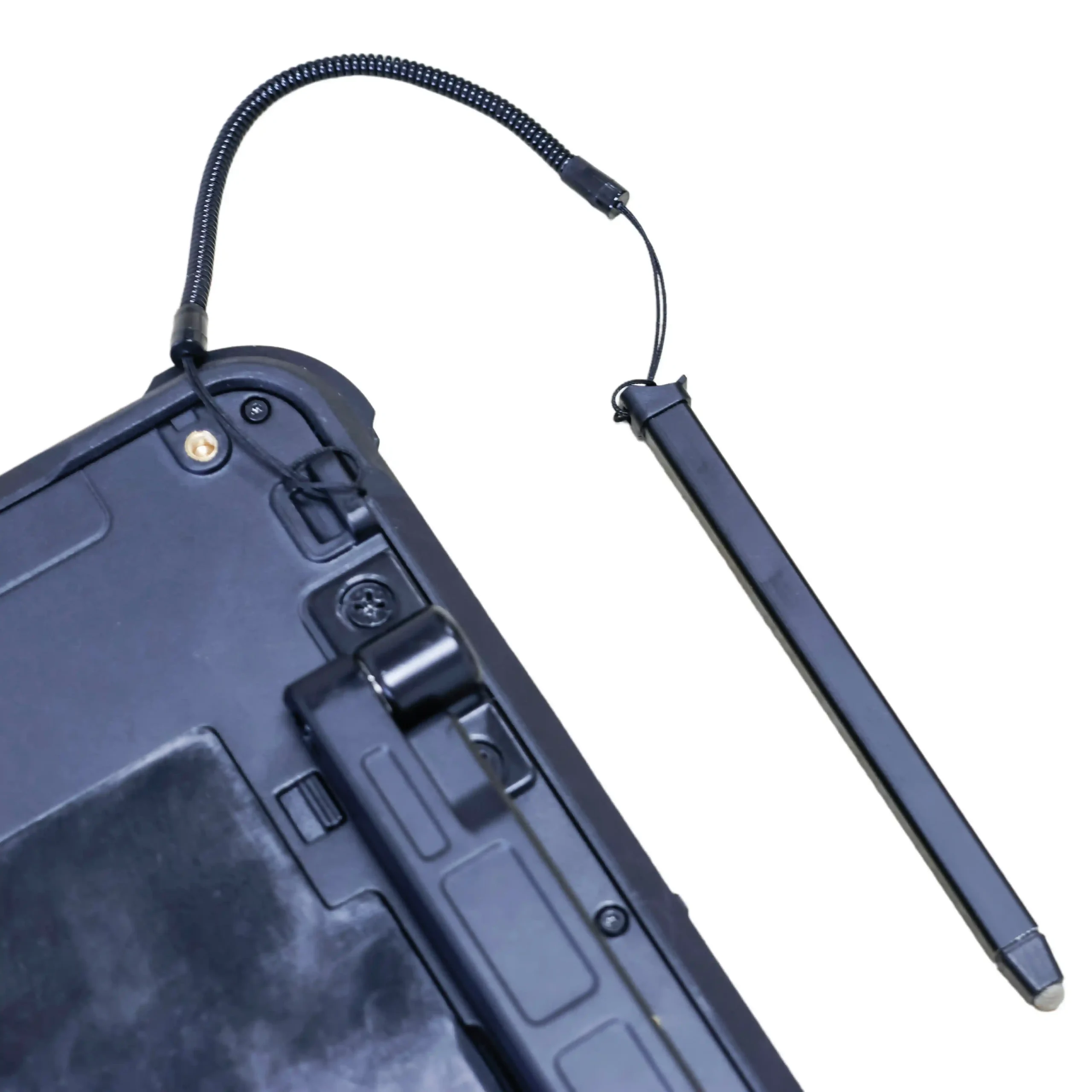

Stylus *1,stylus
Extensions Reserve aviation plugs sockets: 1*power input air-plug interface, 1*USB2.0 air-plug interface
Integratability Expandable, can be integrated with customer modules, can be customized to the functional interface, the motherboard built-in to reserve a variety of signals (SATA interface, PCIE interface, 3-way USB2.0)
Product reliability Drop height Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test
Working temperature -20℃~60℃ (custom-30℃~60℃)
Storage temperature -30℃~70℃ (custom-40℃~70℃)
Humidity Humidity: 95% Non-Condensing
Certificates IP67, 3C, CE, US military standard-810H certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test
Other Adapter TYPE C, 33W Fast Power Adapter

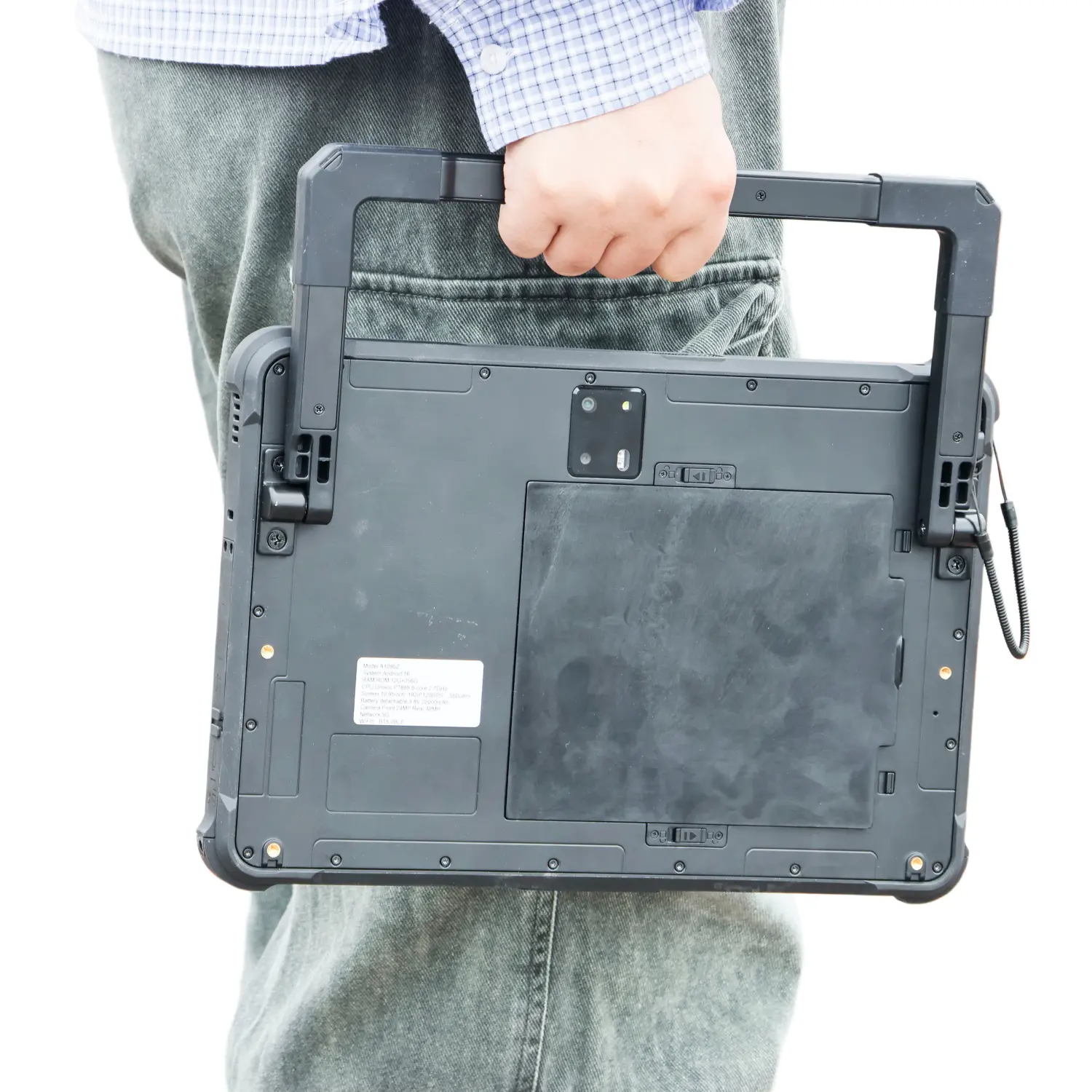

Optional Accessories Reserved for Handle strap, shoulder strap, and stylus;
Reserved for base expansion functions; network port, serial port, USB port, and charging;
Battery-compatible battery charging box;

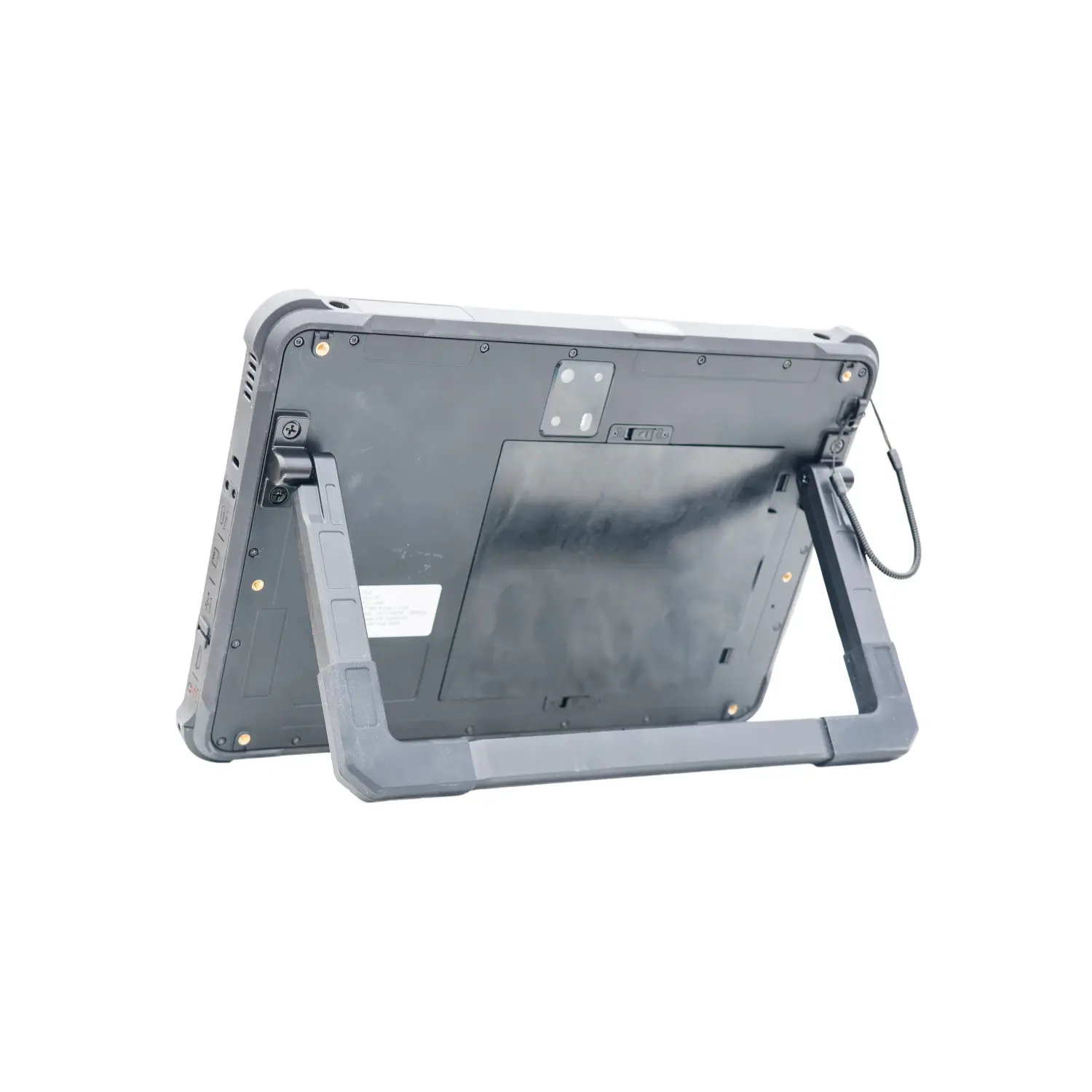

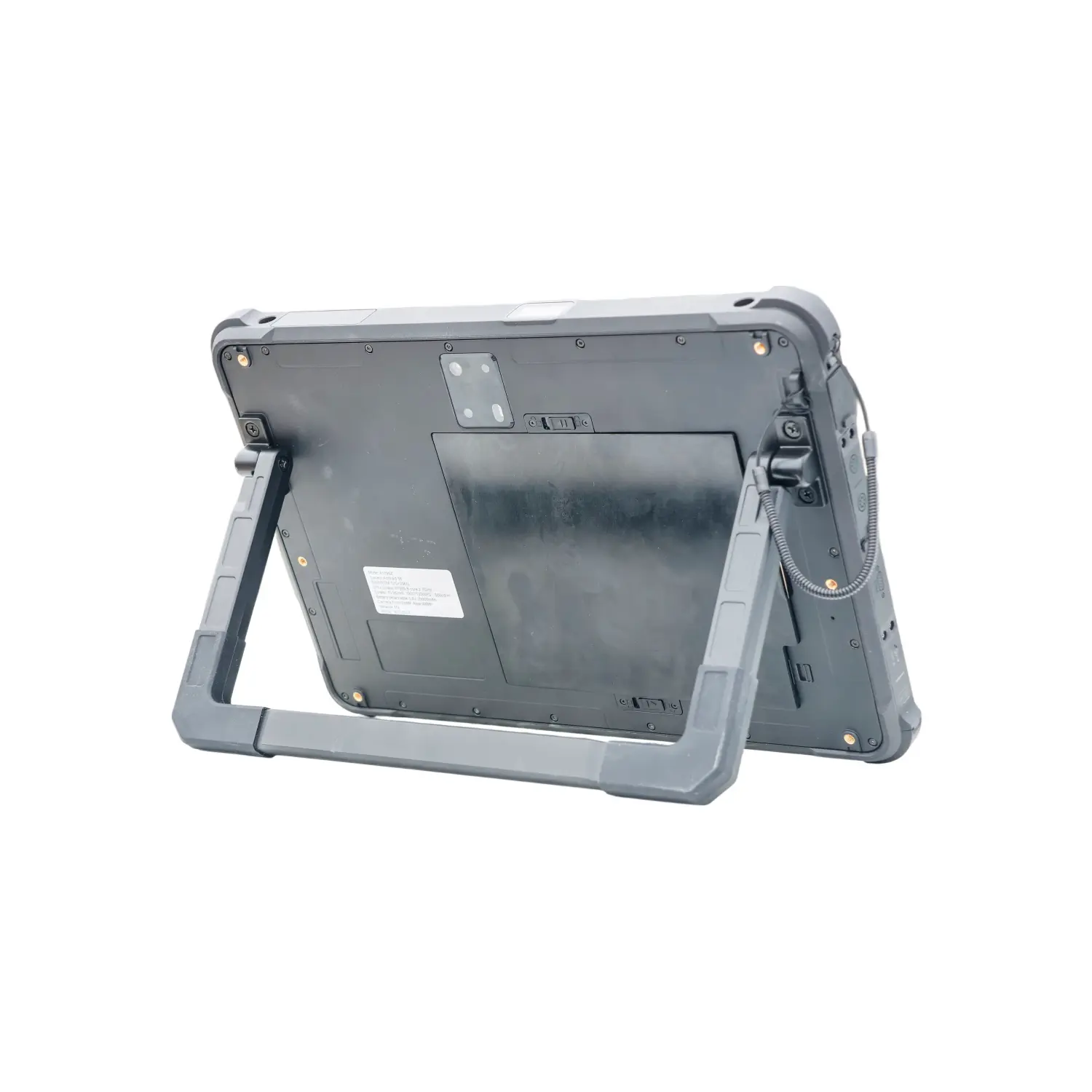

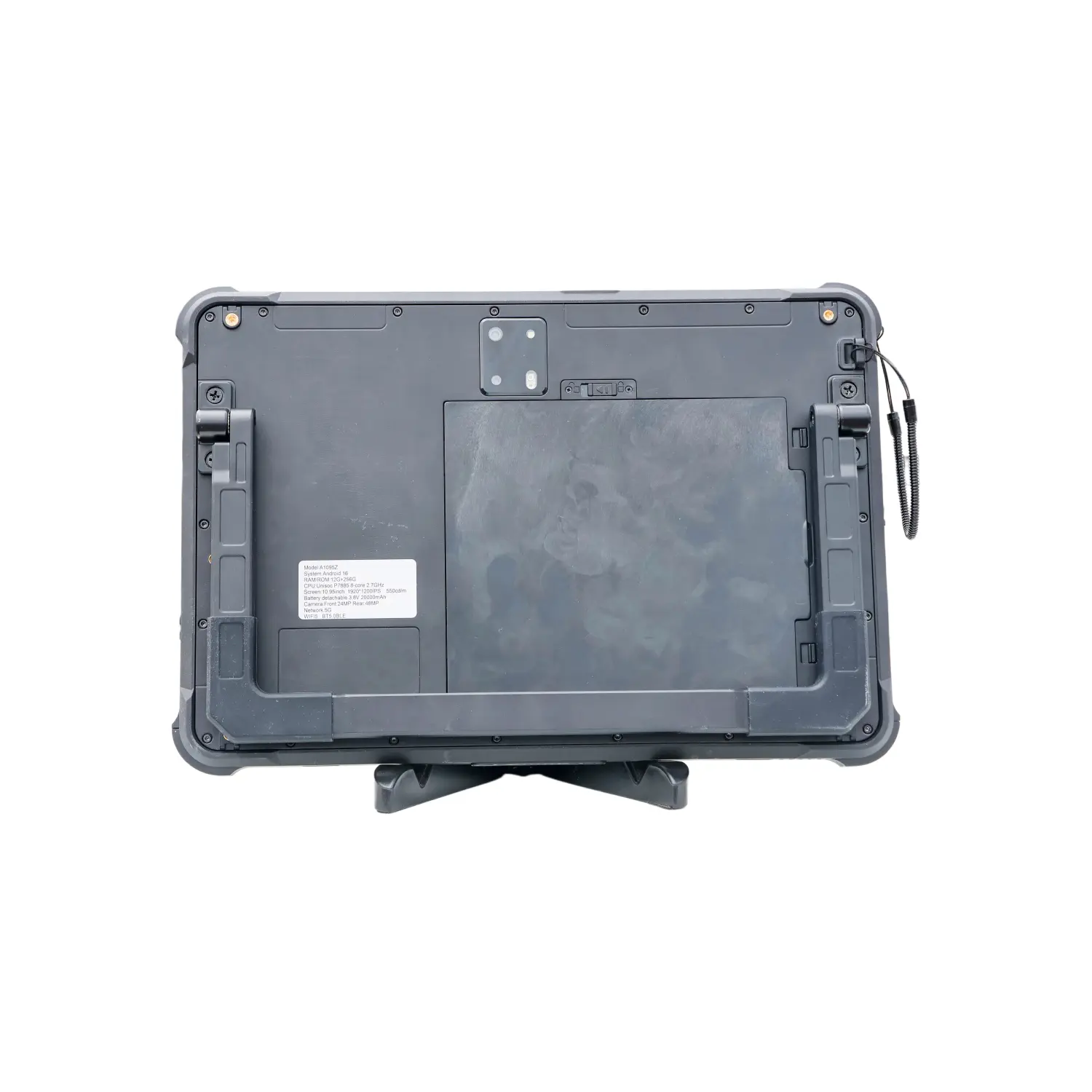

Adjustable stand
(standard)
Stylus (standard)
Portable waterproof case (optional)

Due to the different application configurations required by different projects and different corresponding functional modules, the normal default products are neutral marrking products( without LOGO and product model information on the appearance of the equipment). We accept customize logo company mark,customize device perform to adapt your software etc.
