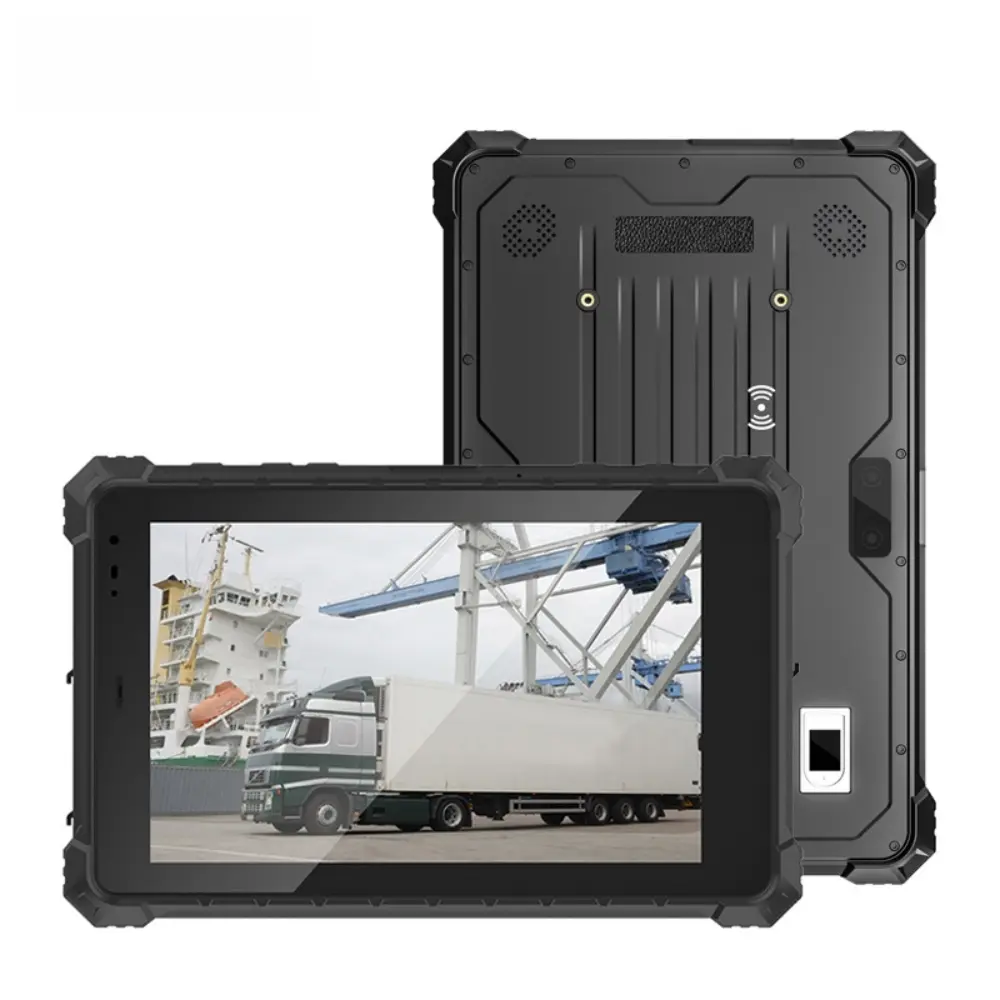

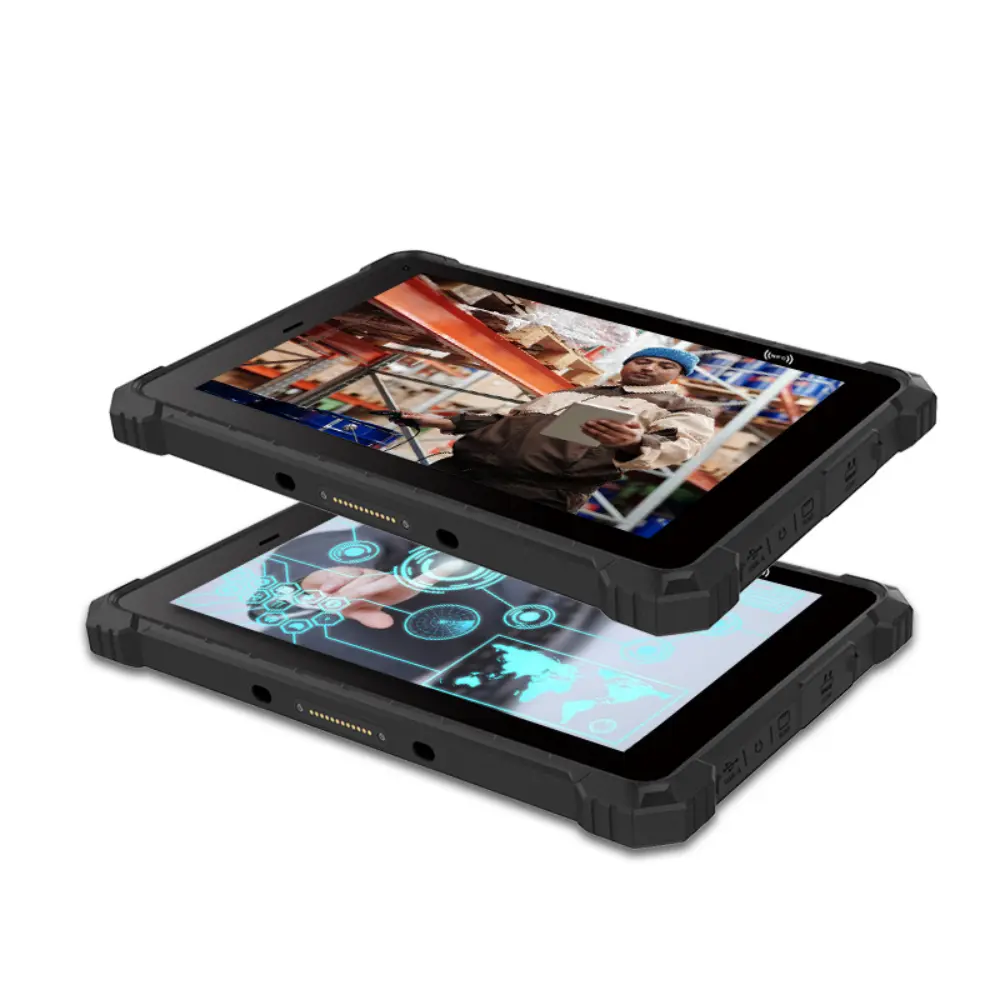

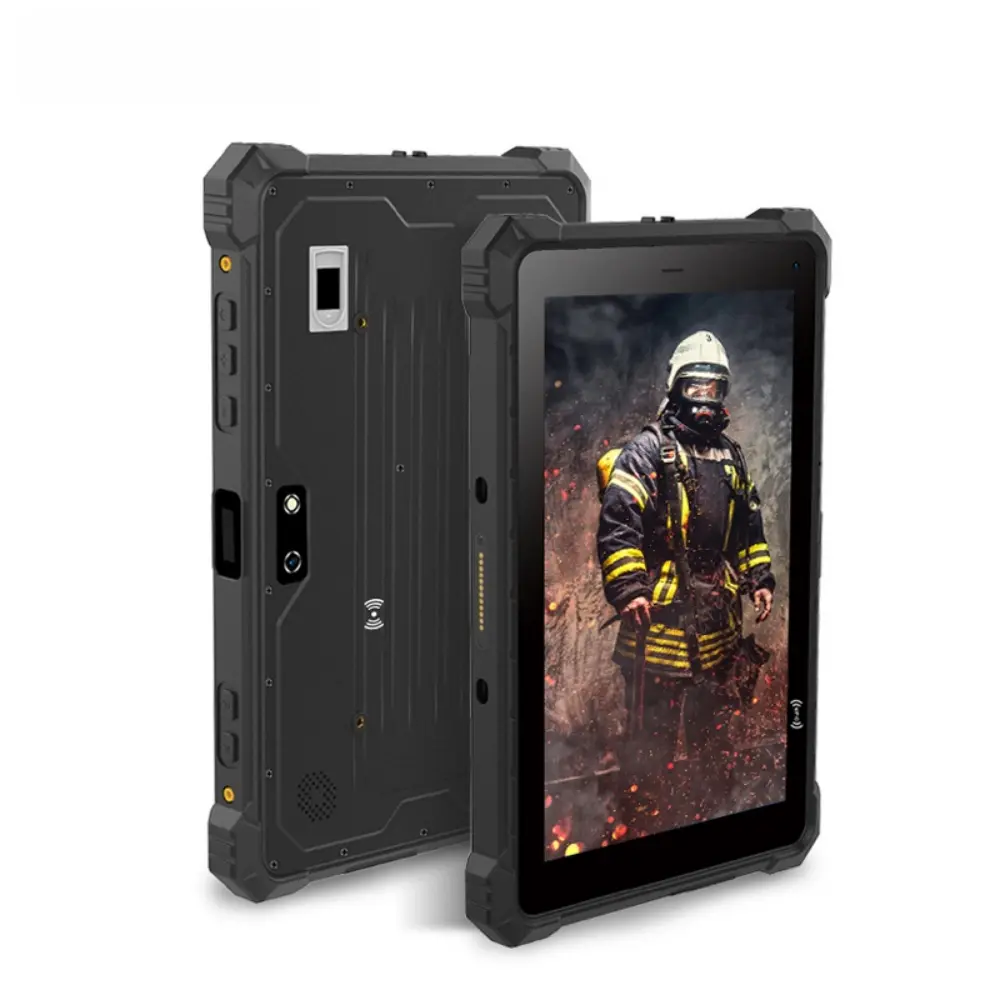

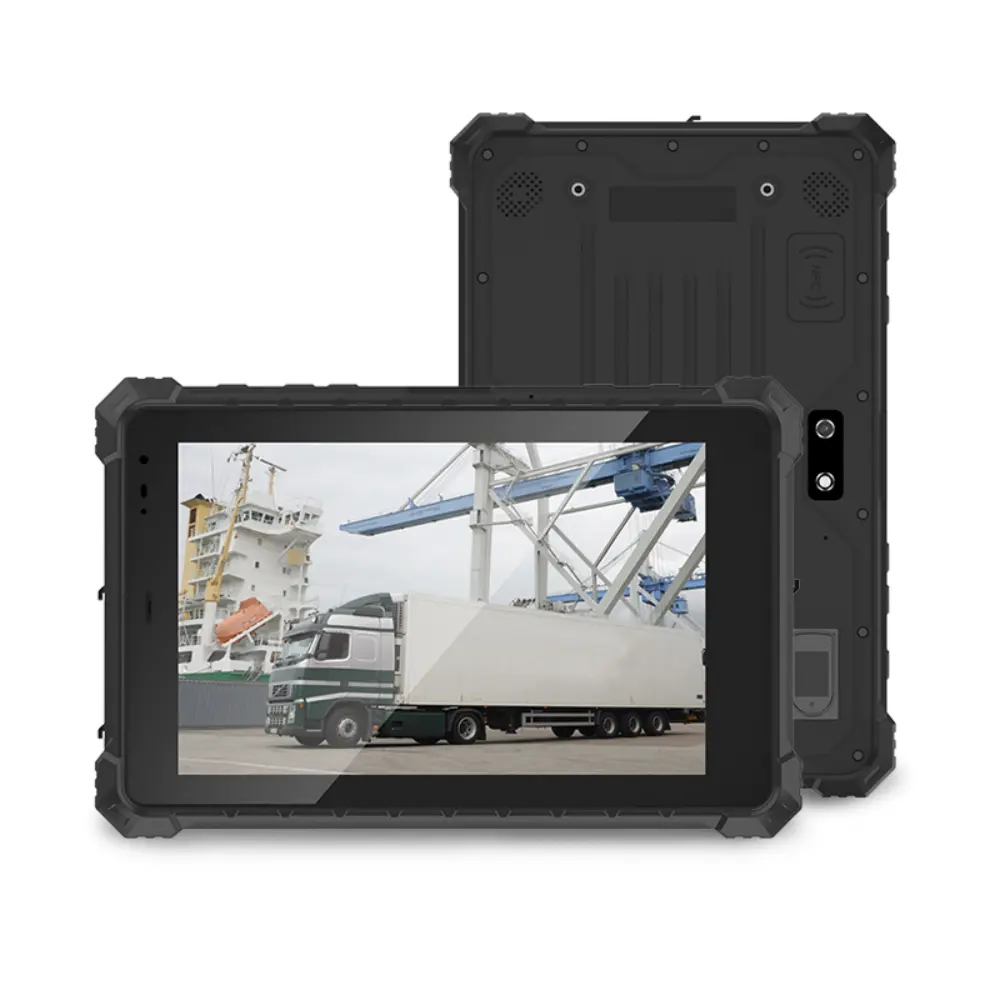

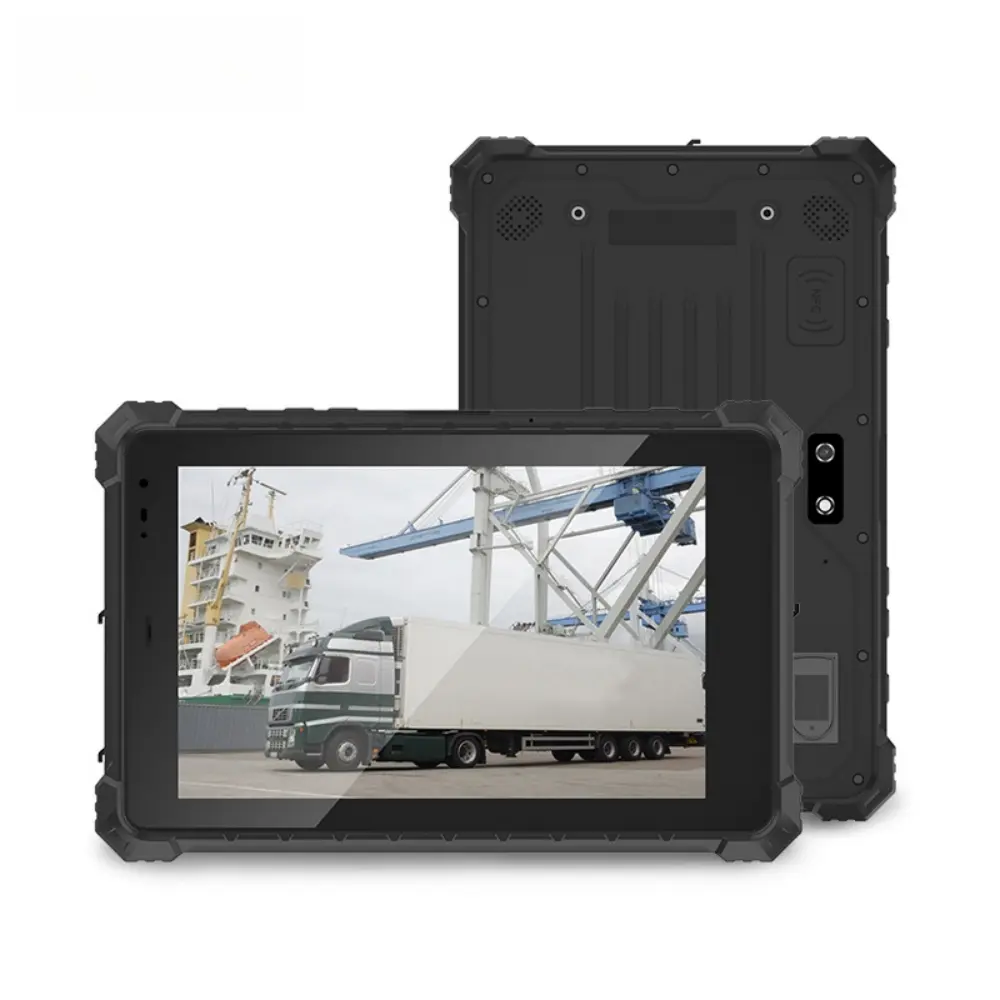

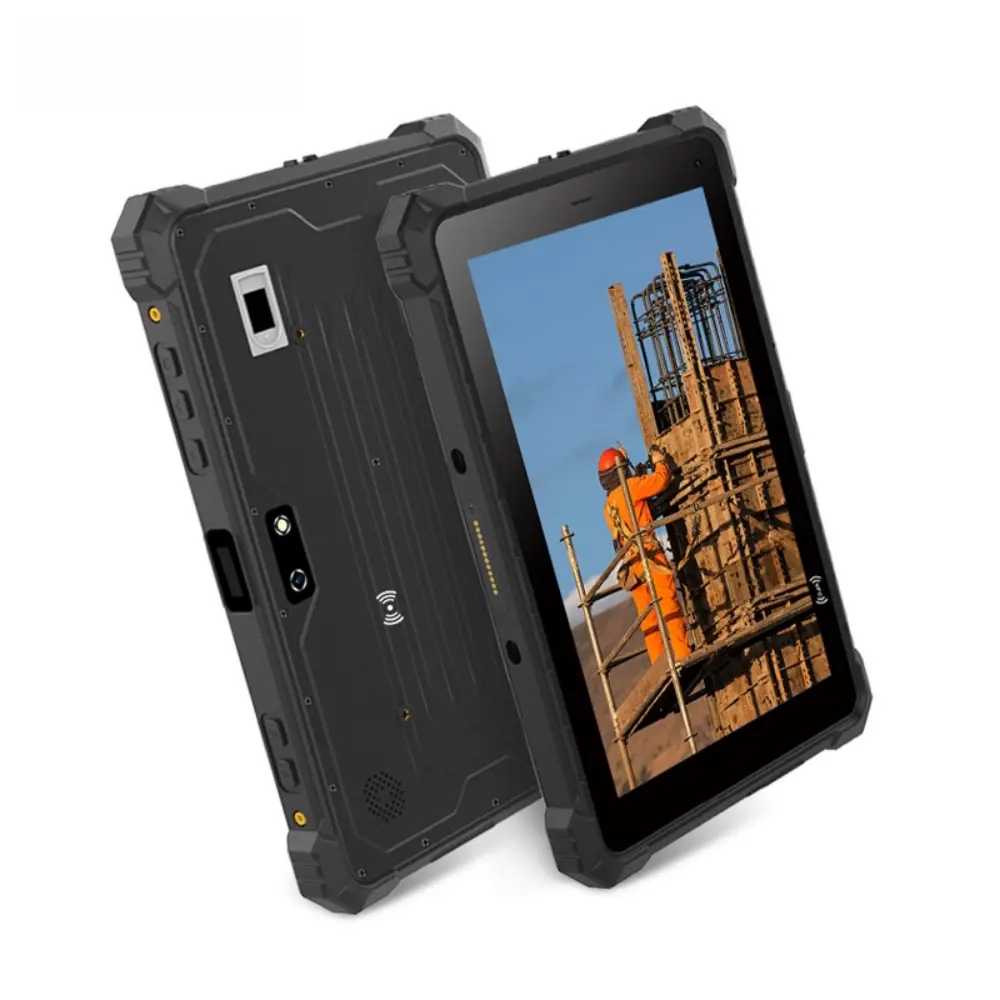

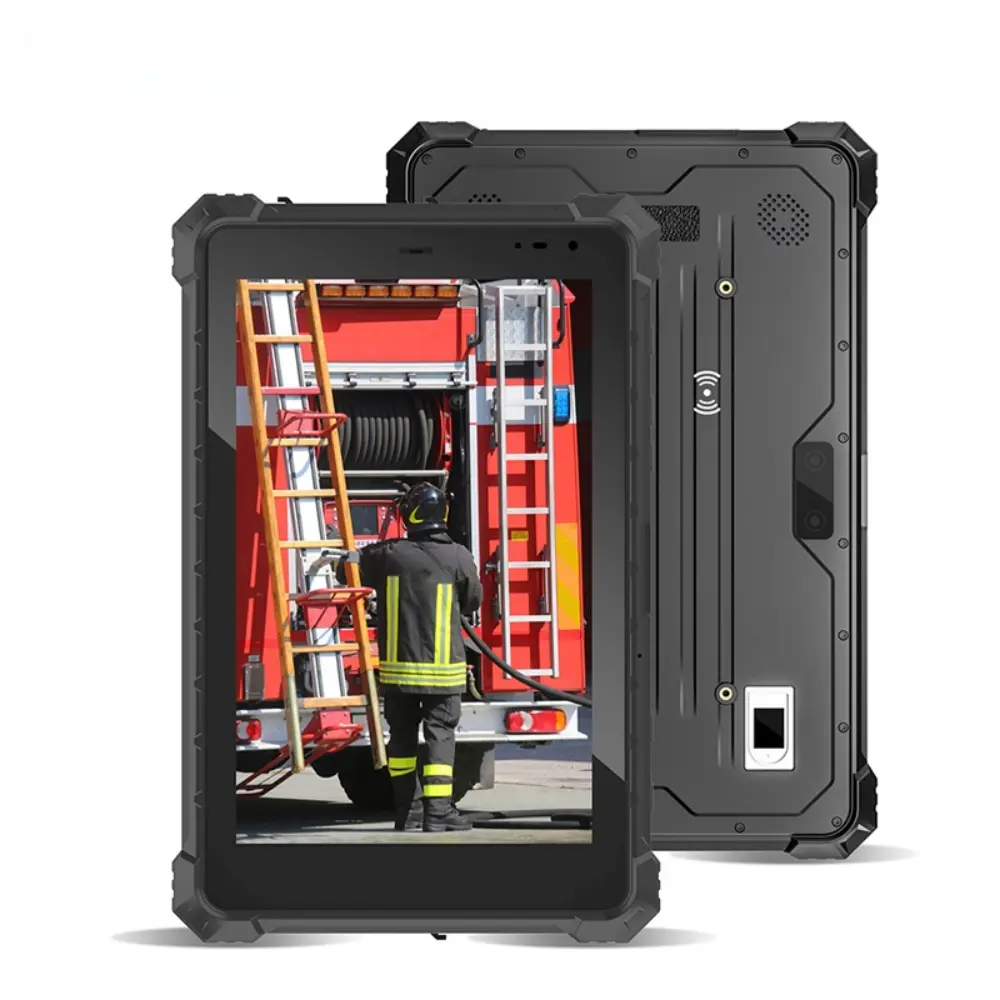

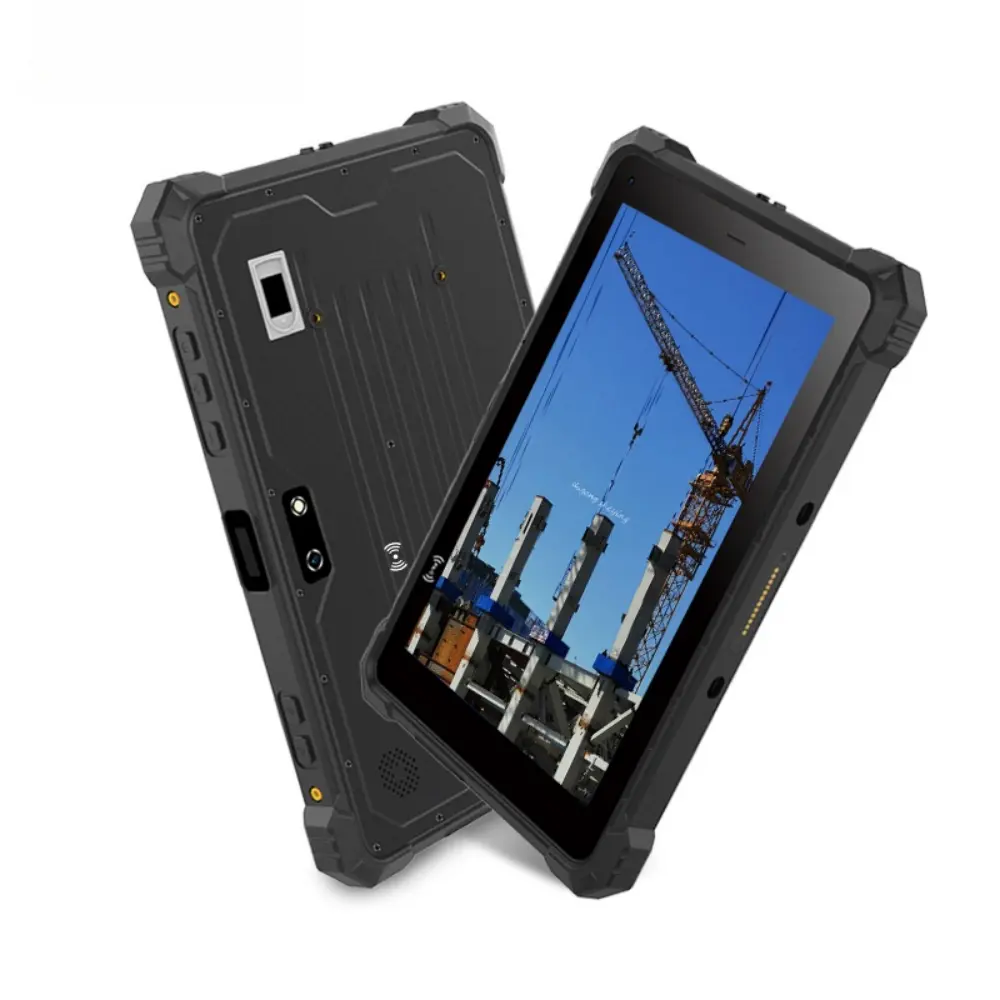

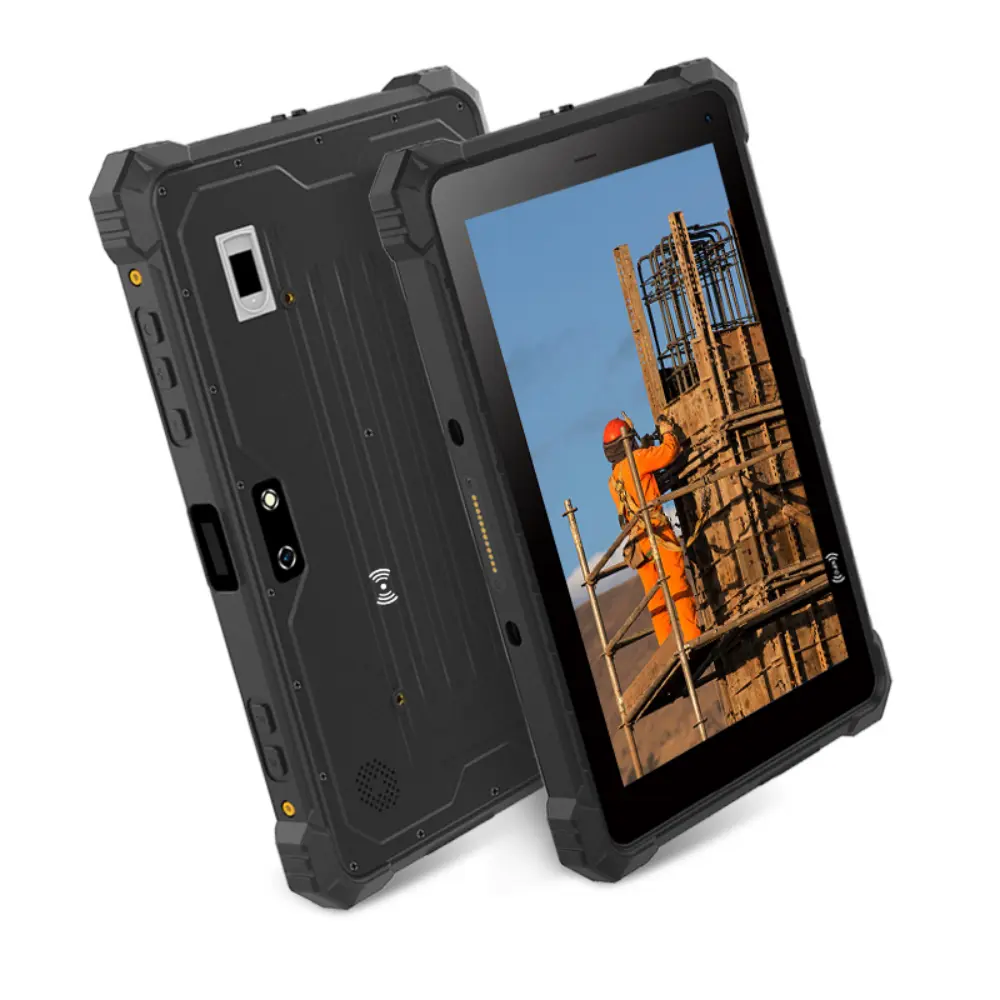

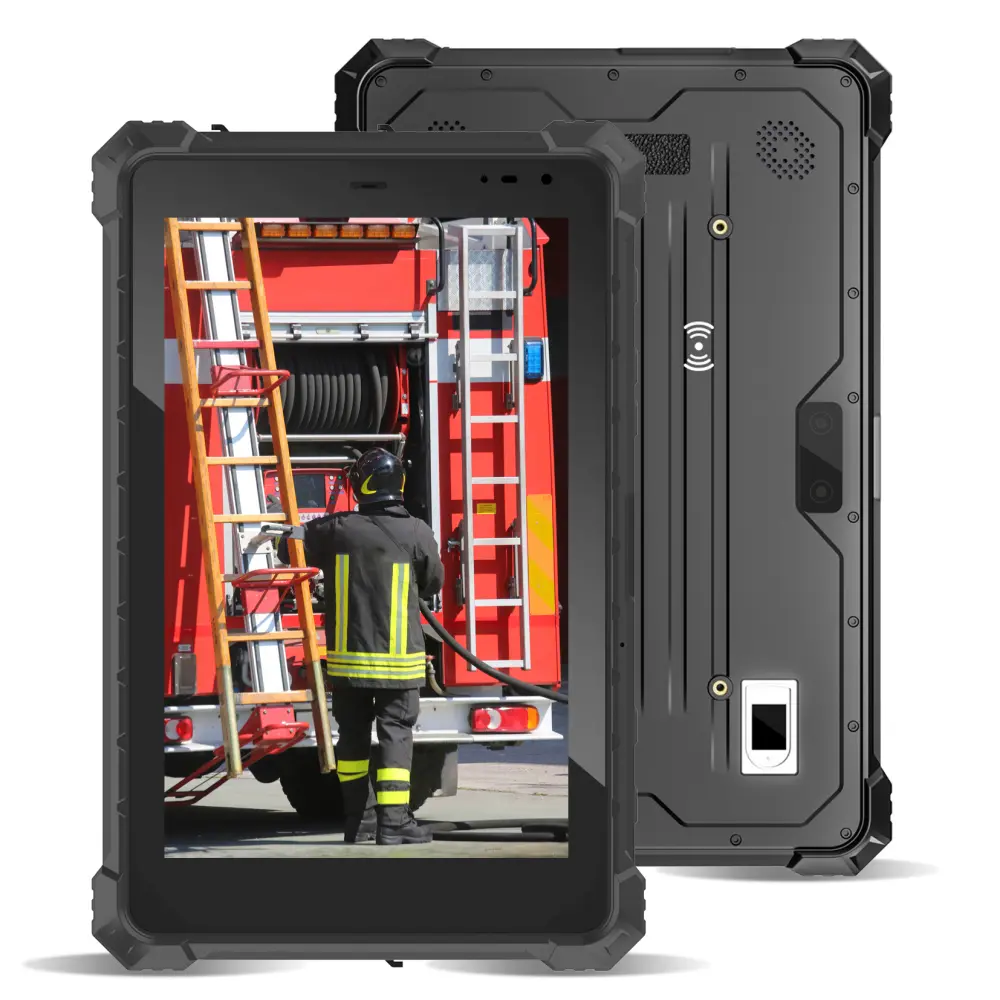

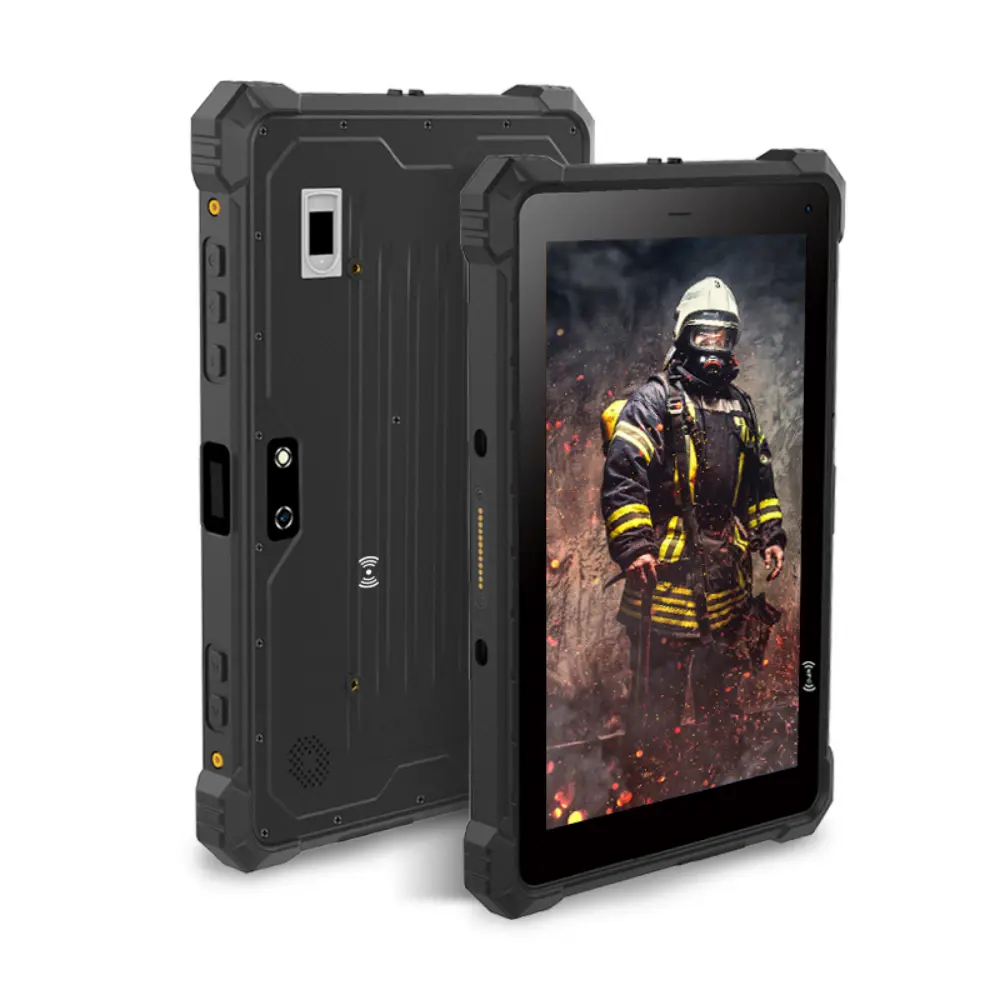

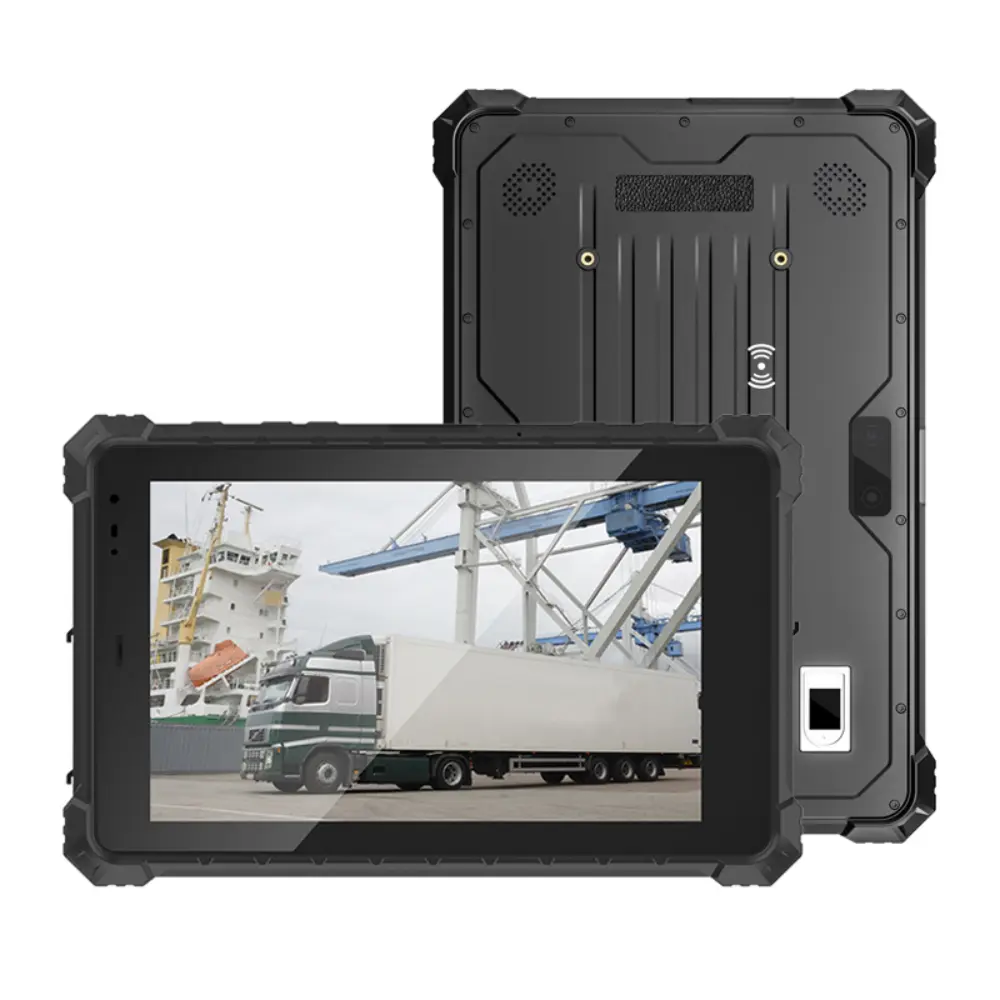

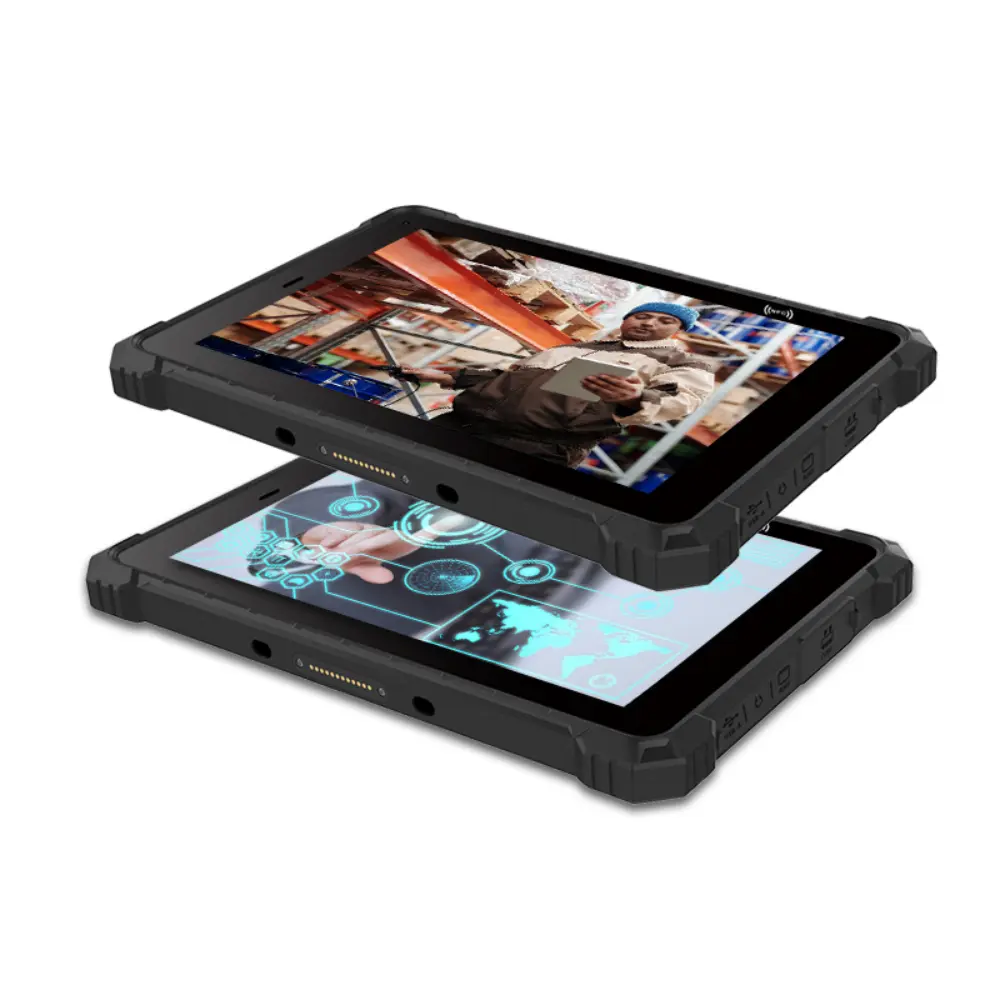

A10R RK3588 IP68 Three Proof Rugged Tablet

	Model	A10R
	Explosion-proof（optional ）	Petrochemical Class II，Mining Class I，Coal Safety Class I
Product form	Picture
	Size weight	Bare metal: 276.0*180.5*22.5mm/1138g With packaging accessories: 371*213*61mm/1877g
	Standard Packing Specification:	Quantity: 10 pcs/carton；Dimension: 38.5*33*44.5cm；Gross Weight: 19.6kg
	Wall hole pitch / screw	154×71.5mm/ M3*4.5mm

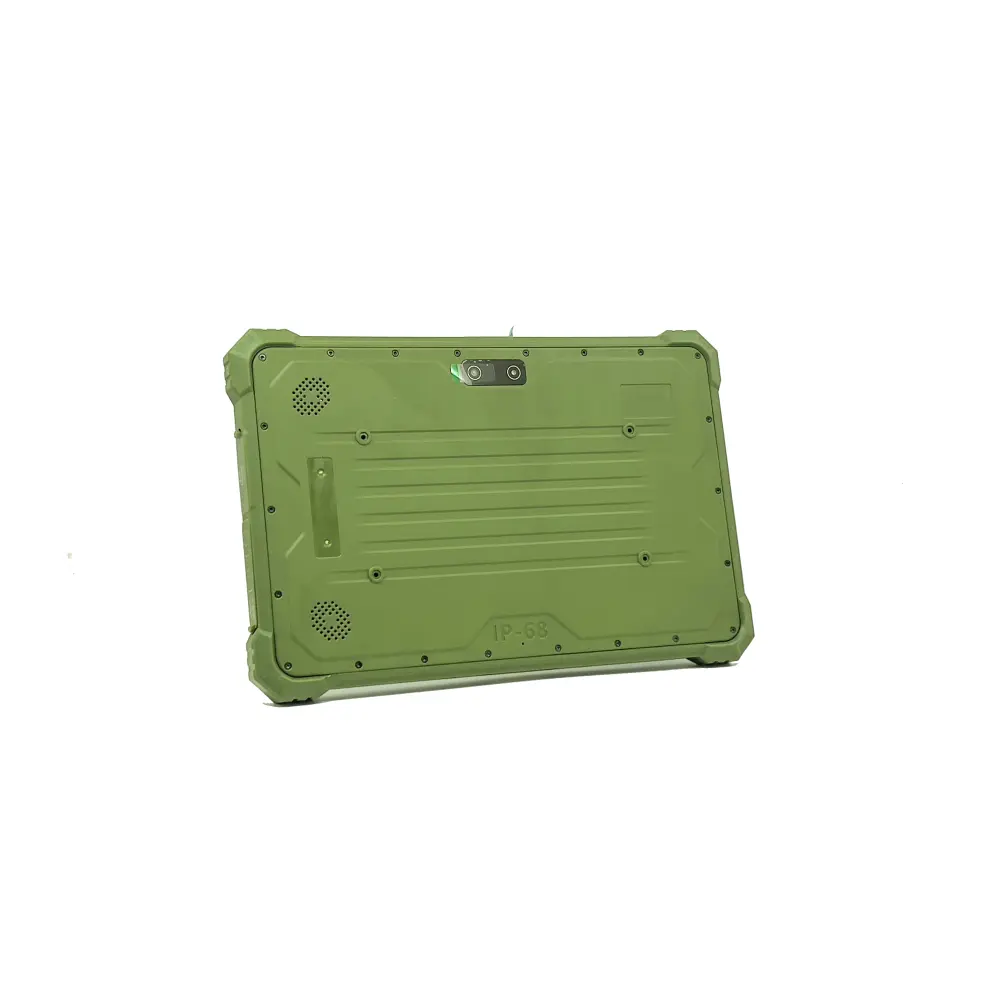

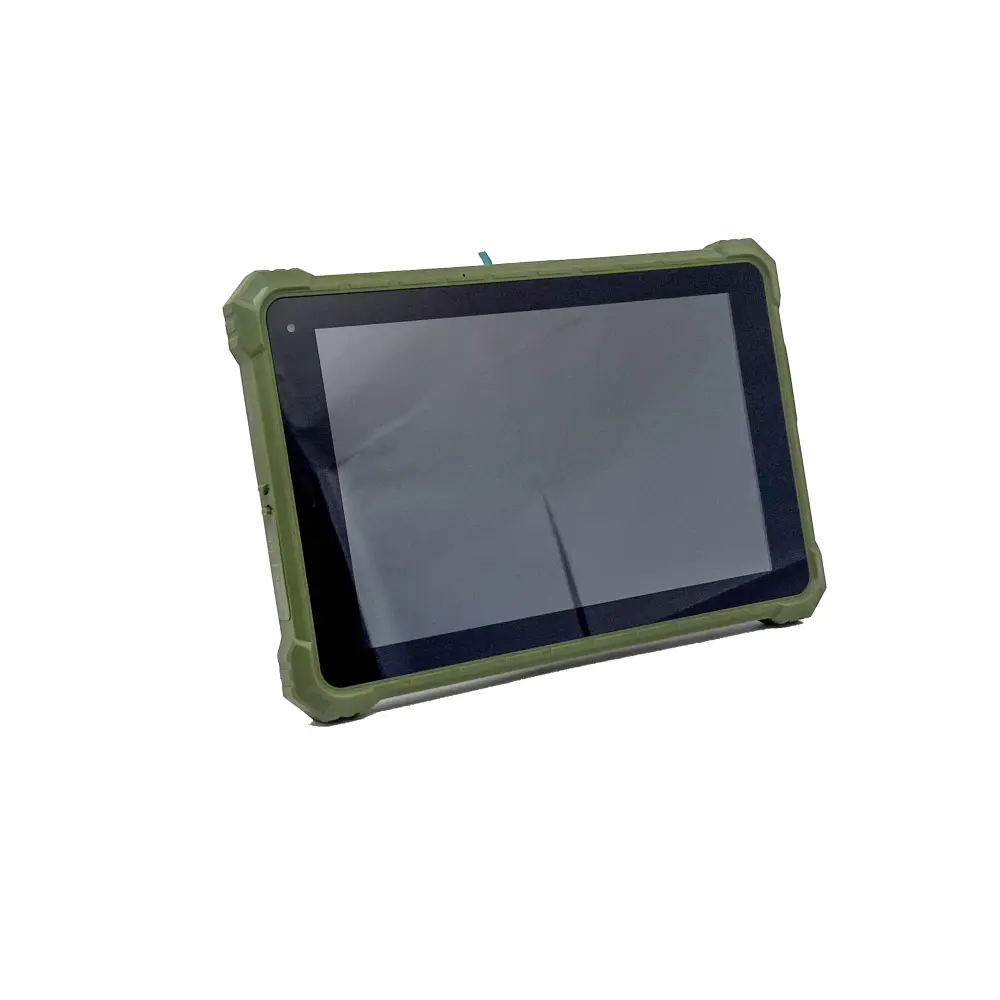

	Color	Black，color customizable
	Screen size	10.1inch，16:10
	Resolution	1920*1200
	Screen brightness	700cd/㎡，can be customized1000cd/㎡
	Tp touch screen	10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen)
	Battery	7.6V 5550mAh high-voltage lithium battery, non-removable, battery life ≥7h (Play 1080P HD video, 50% brightness and 50% sound) Supports custom large battery (10000mAh/7.6V,Overall thickness: Approximately 27.04mm)
Camera		Front camera: 13MP fixed focus camera Rear camera: 13MP autofocus camera
Buttons		Power button*1 Volume keys*2, Vol+, Vol- Customized keys*2, P key, F key
Hardware configeration	Speaker, microphone	*2, speaker 1.2W/8Ω *1,MIC
	CPU	RK3588,Octa core，4x ARM Cortex-A76 (@2.4GHz) + 4x ARM Cortex-A55 (@1.8GHz)
	RAM/ROM	8G+128GB+SSD, 16G+256GB+SSD optional in batches
	Gyroscope	YES
	Gravity sensor	YES
System	Operation system	Android 12,     Optional Star Kylin /OpenHarmony(openharmony V4.1)/KylinOS Desktop V10/ Ubuntu 24.04.2
	NFC	I²C interface, 13.56MHZ supports 14443A/14443B/15693 and other protocols (the card reading area is on the back of the fuselage by default and can be customized to the front)
Wireless connection	WIFI	WIFI 802.11(a/b/g/n/ac/ax) frequency  WIFI6
	BLE	Bluetooth 5.0 transmission distance: 10m
	2G/3G/4G (Customized function)	LTE-FDD：B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71 LTE-TDD：B38/39/40/41 WCDMA：B1/2/4/5/6/8/19
	5G (Customized function)	Europe Region:EMEA,Australia,Japan,Korea 5G SA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD:B34/B38/B39/B40/B41/B42 WCDMA:B1/B5/B8China Region:China 5G SA&NSA: N1/N28/N41/N78/N79 LTE-FDD:B1/B3/B5/B8/B28 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8North America Region: North America 5G NR : N2/N5/N7/N12/N13/N14/N25/N38/N41/N48/N66/N71/N77/N78 LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE-TDD:B38/B41/B42/B43/B48 WCDMA:B2/B4/B5
	Positioning system	GPS, Beidou, Galileo, GLONASS，Optional Single-System BeiDou Positioning
Date collection	1D/2D scanner (Customized function)	Standard version (N1) 300,000 pixels + depth of field Code 39 5mil 65~150mm + red light Reading code system: 2D: PDF417, QR Code, Micro QR, Data Matrix 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN- 128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-PlesseyHigh-end version (N670) 1 million pixels + depth of field Code 39 5mil 45~200mm + cross laser Read code system：： 2D：QR Code, Data Matrix, PDF417，Han letter code，Dotcode 1D：UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar,MSI/MSI PLESSEY, GS1 DataBar OCR：Support OCR-A，OCR-B
	ID card (custom function)	ID card reader module
	UHF (customized function)	2 options available: Distance within 2 meters, working frequency 840-960MHz Distance within 5 meters, working frequency 860-960MHz
	LF（custom function）	support 125kHz    distance：1-3cm
	Fingerprint login (customized function)	Support
	Fingerprint collection (customized function)	1: General industrial fingerprint 2: Fingerprint certification by the Ministry of Public Security (China) 3: FBI certified fingerprint
	RTK High-Precision Positioning (Custom Function)​	Positioning Accuracy Standalone (RMS): Horizontal 1.5 m  Vertical 2.5 m DGPS (RMS):​Horizontal 0.4 m Vertical 0.8 m RTK (RMS):​Horizontal 1 cm + 1 ppm  Vertical  1.5 cm + 1 ppm

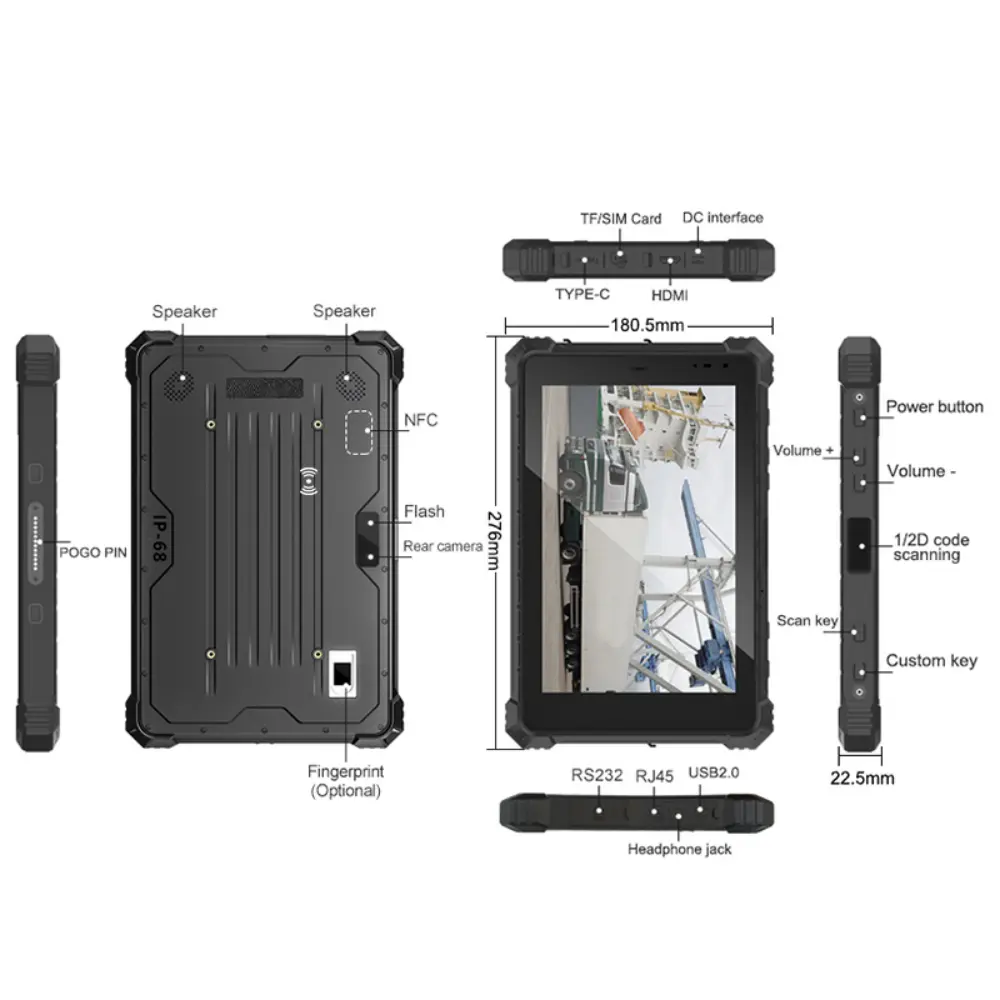

Ports	M.2 SSD	*1, reserved for the motherboard, supports M.2 2280 SSD PCIE protocol FAT32 format (maximum 1TB)
	TYPE-C	*1, Type-C USB3.0 (supports data transmission)
	Type -A	*1，Type-A USB3.0
	DB9	*1，RS232
	Earphone Jack	*1, 3.5mm standard headphone jack
	TF Card	*1, supports up to 2TB expansion
	SIM Card	*1, standard Micro SIM card slot
	HDMI	*1，Micro HDMI
	DC	*1, 12V-4A (DC plug outer diameter 3.5mm, inner diameter 1.35mm)
	RJ45	*1，100/1000M
	POGO PIN	*1, 12Pin USB+ charging
Mainboard reserved expansion interface		Interface requirements:3.3V-1A/5V-1A power supply, UART interface, interface level 3.3V, USB2.0 interface,5V 1A power supply
Product reliability	Drop height	Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test
	Working temperature	-20℃~60℃ （custom-30℃~60℃）
	Storage temperature	-30℃~70℃ （custom-40℃~70℃）
	Humidity	Humidity: 95% Non-Condensing
Certificates		IP68, 3C, CE, US military standard-810H certification, energy-saving certification, ISO quality certification system, ROHS, three-proof salt spray test
	Adaptor	5V/3A，DC interface adapter
	Option accessories	Strap/charging base/stand
2 points Strap（Free)
4 points Strap（Optional)
Backplate bracket（Optional)
Clip bracket（Optional)
Extended interface car mount (optional)
Tempered Film（Optional)
Base (optional purchase)
Full aluminum alloy desktop bracket (optional)
Portable waterproof case (optional)
Leather case(optional)

Due to the different application configurations required by different projects and different corresponding functional modules, the normal default products are neutral marrking products( without LOGO and product model information on the appearance of the equipment). We accept customize logo company mark,customize device perform to adapt your software etc.
