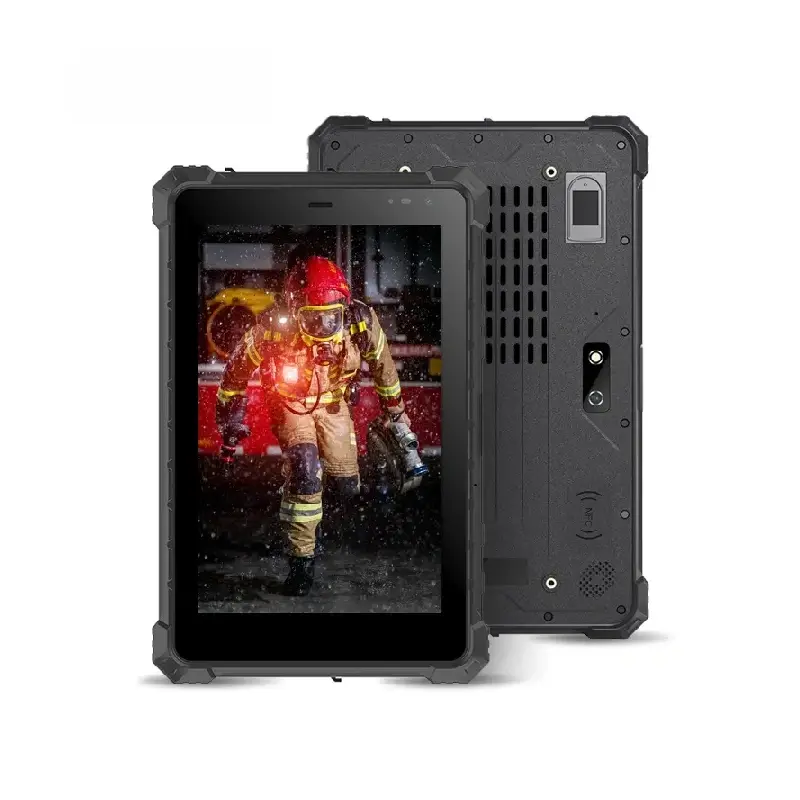

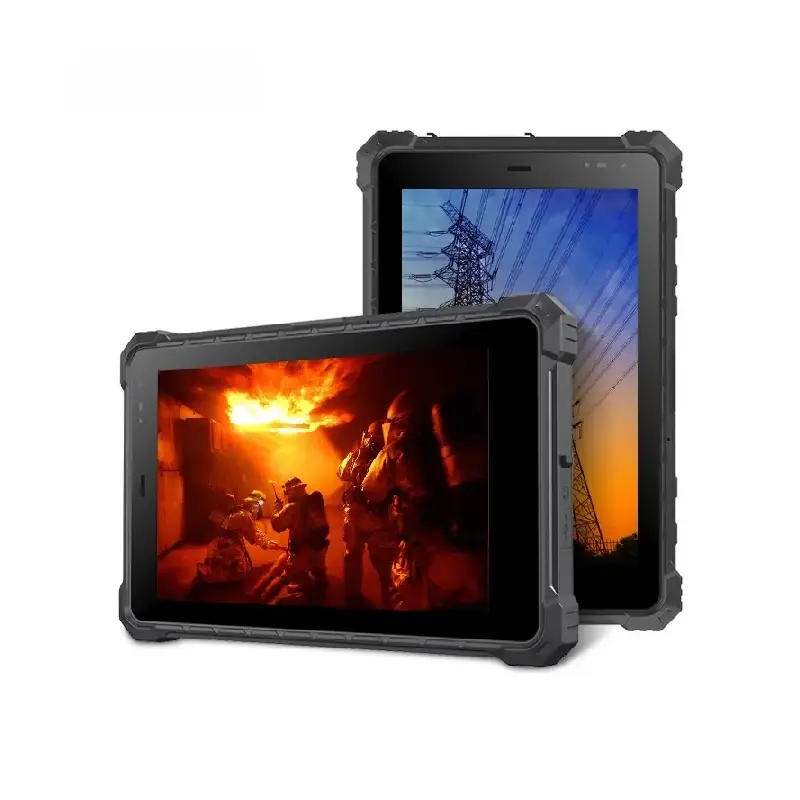

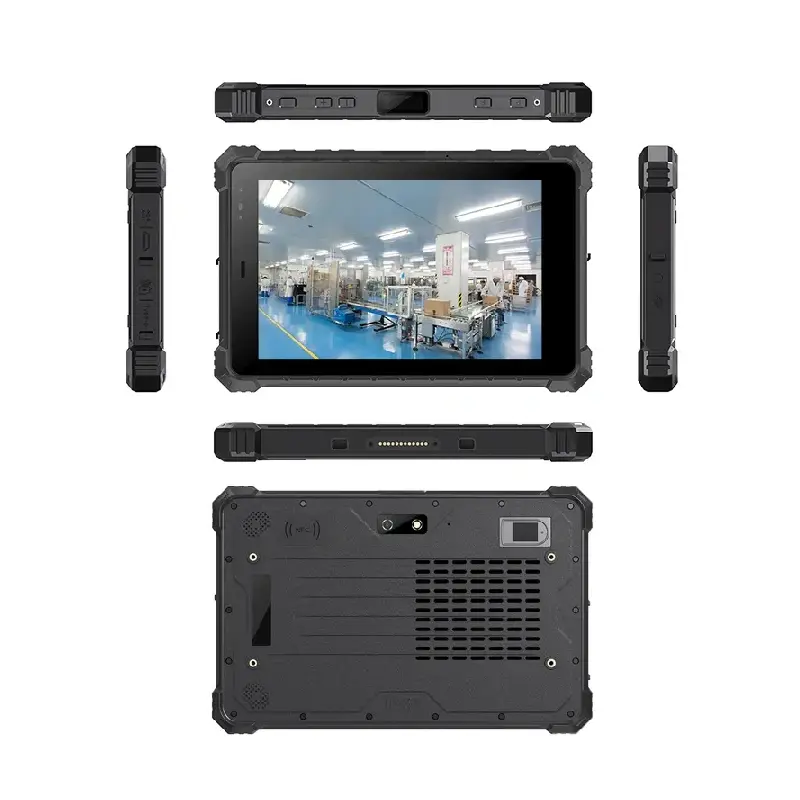

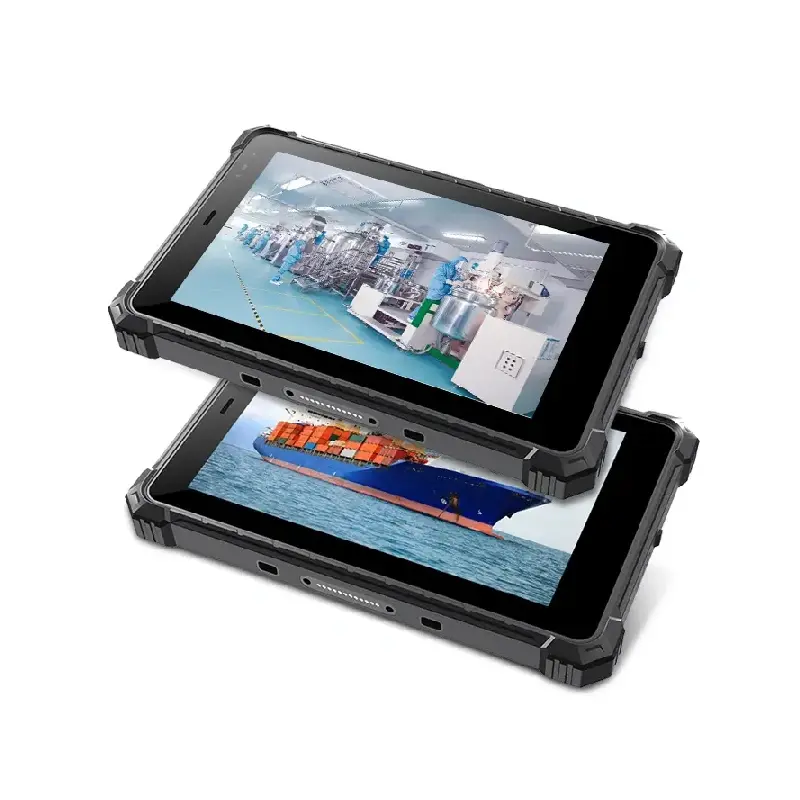

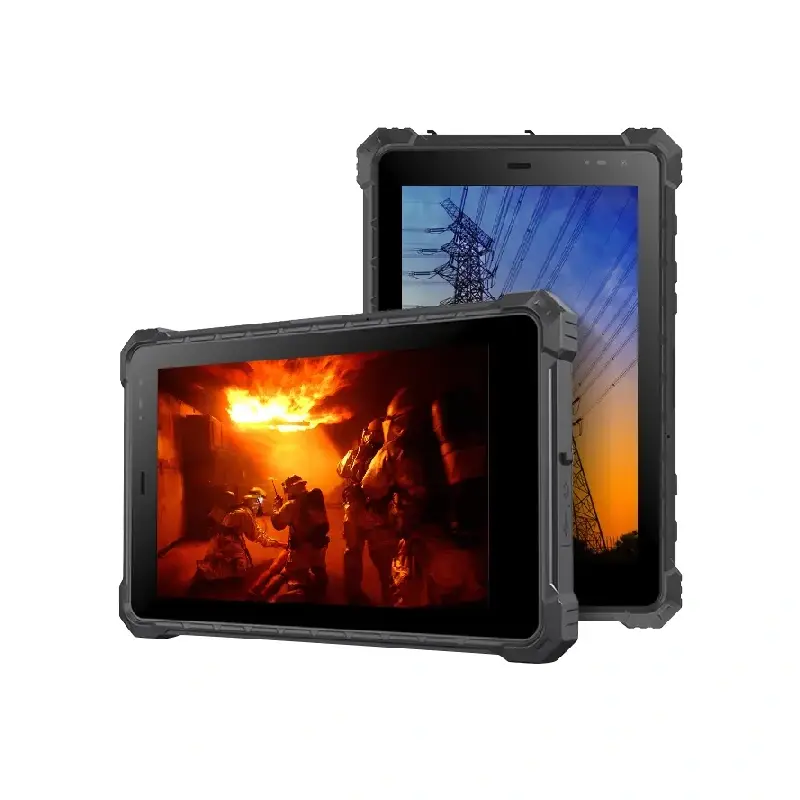

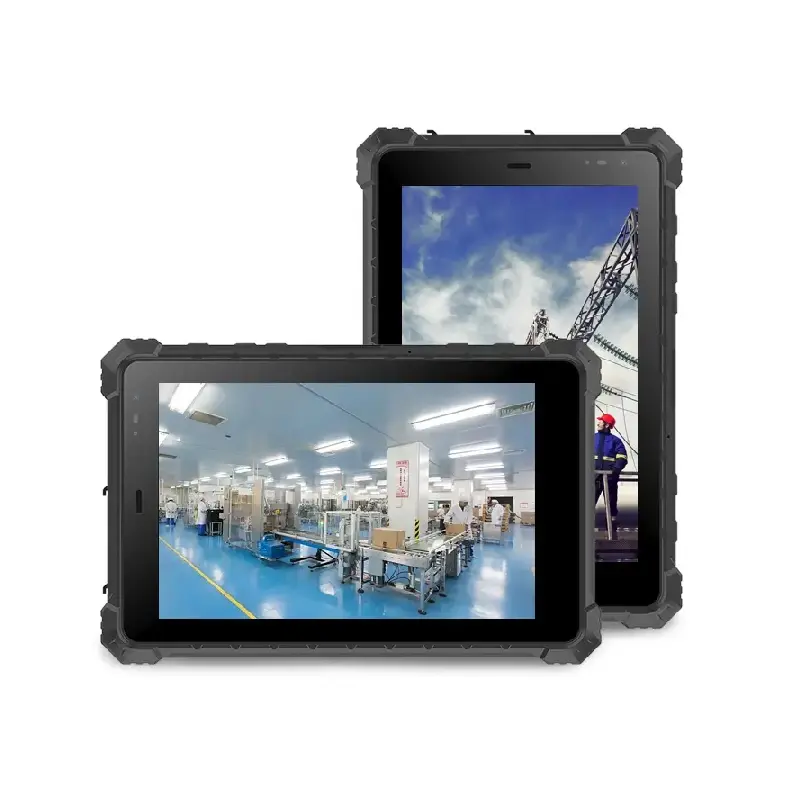

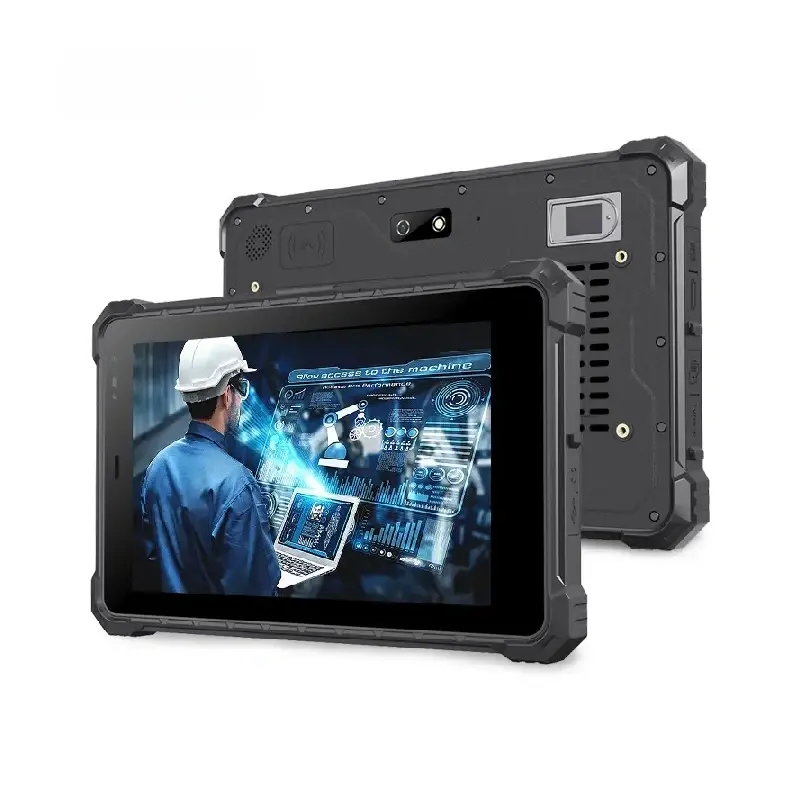

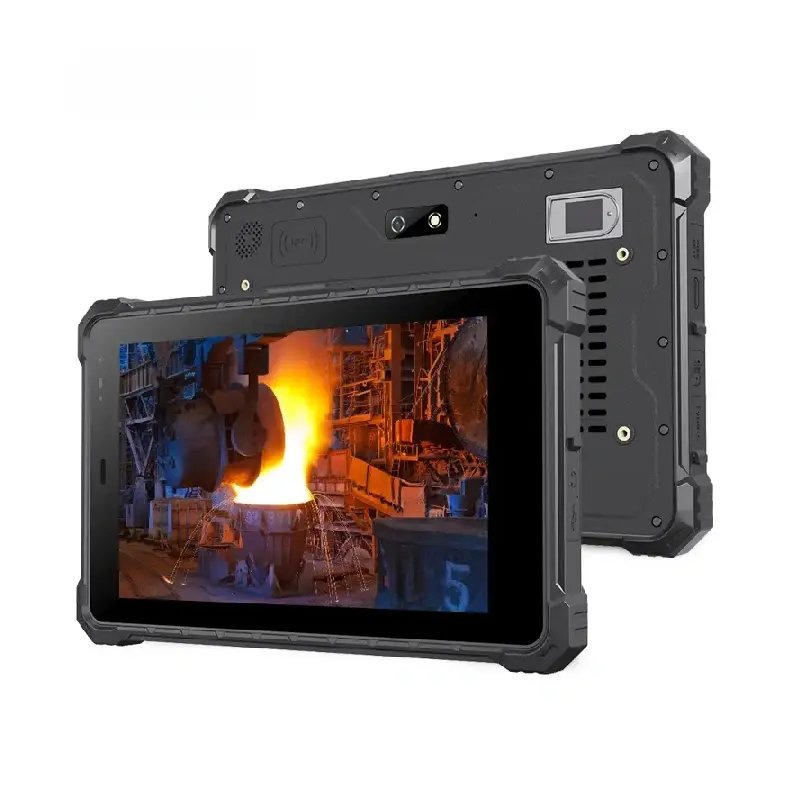

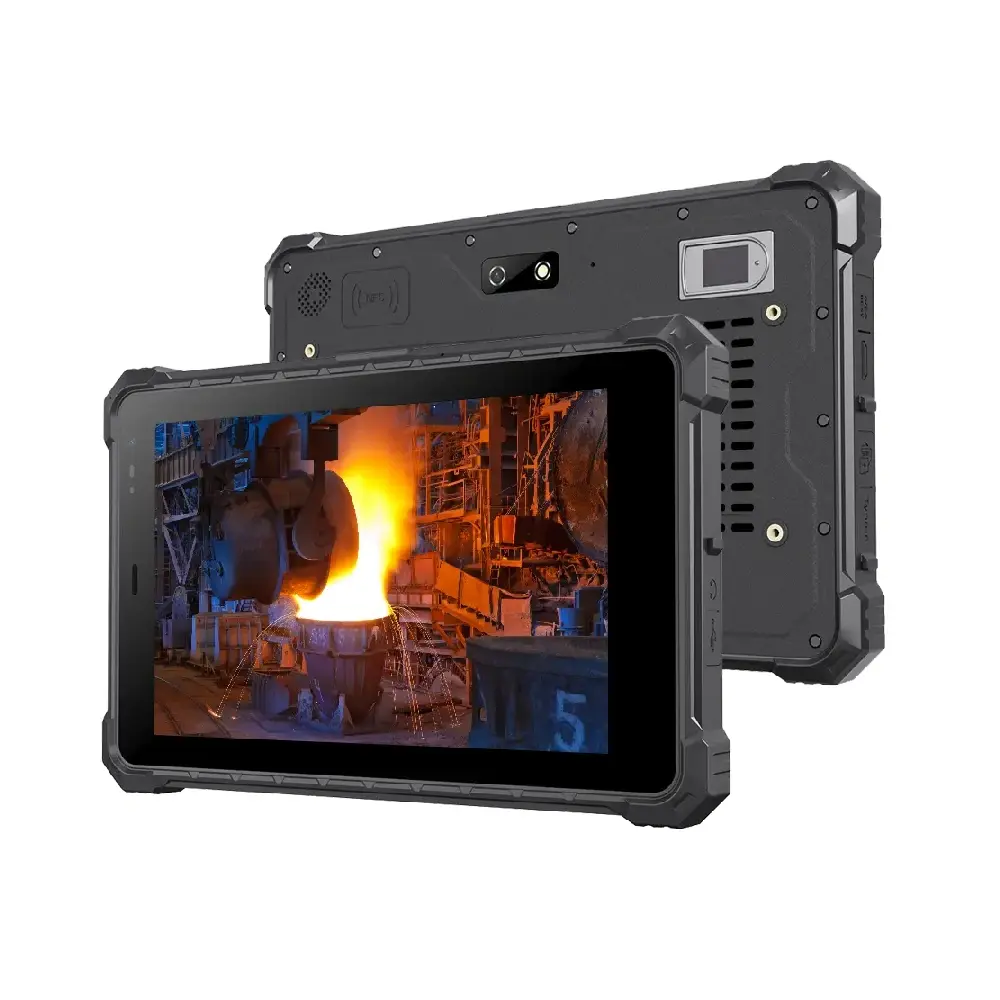

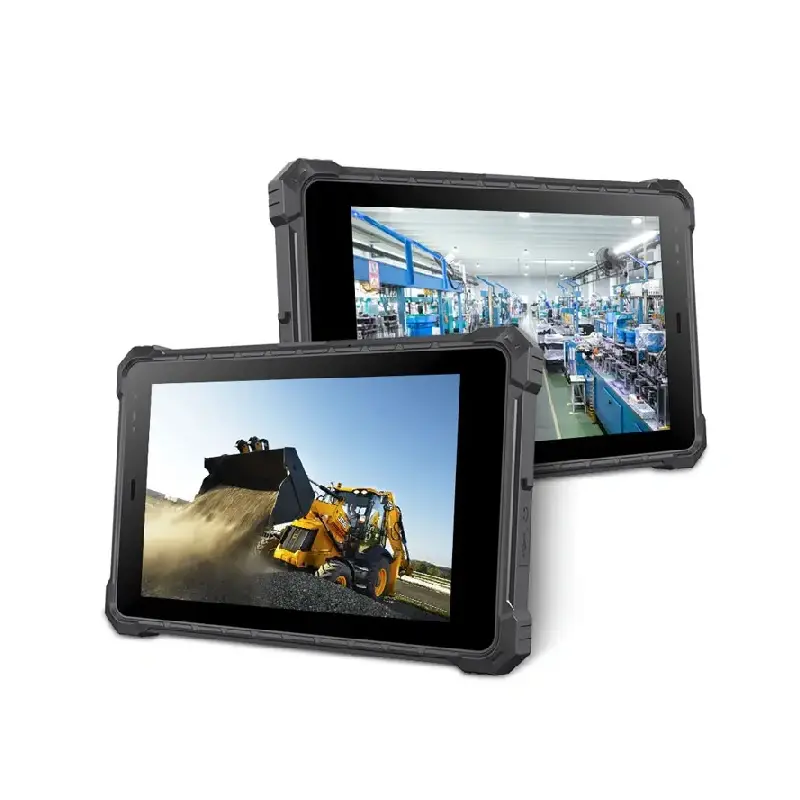

W80Y 16+256GB i7 10510Y IP68 Three Proof Rugged Tablet

W80Y 8+128GB i5 10210Y

Category:

Model W80Y
Explosion-proof(optional ) Petrochemical Class II,Mining Class I,Coal Safety Class I
Size weight 227*142*22.5mm/830g
Wall hole pitch / screw 180x64mm/ M3*4.5mm
color Black, color can be customized
screen size 8inch
screen resolution 1920*1200
screen brightness 700cd/㎡
TP touch screen 10-point touch G+G, hardness ≥7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen)
Battery 7.6V 5550mAh high voltage lithium battery, non-removable, battery life ≥7h (1080P+50% brightness)
  Camera Front camera: 5.0MP fixed focus
Rear camera: 12MP auto focus
Buttons Power button*1
Volume keys*2, Vol+, Vol-
Custom keys*2, P key, F key
Hardware
configeration
Speaker, receiver, microphone *2, speaker 1W/8Ω aluminum film,  waterproof speaker;
*1,  MIC,waterproof rating
CPU Intel(R) Core(TM) i7-10510Y Quad Core 8 Thread  1.2GHz-4.5GHz
GPU Intel® UHD Graphics for 10th Gen Intel® Processors
RAM/ROM 16G+256GB (M.2 SSD)
TPM Built-in TPM Security chip
Gravity sensor YES
Operation system Windows 11,   Windows 10、Ubuntu20.04.6、Debian12.5 (Optional )
Wireless connection WIFI WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI
Bluetooth Bluetooth 5.0  transmit distance:10m
3G/4G
(custom function)
LTE-FDD:B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71
LTE-TDD:B38/39/40/41
WCDMA:B1/2/4/5/6/8/19
5G
(custom function)
-EA:Region:EMEA,Australia,Japan,Korea
5G SA&NSA:
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79
LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32
LTE-TDD:B34/B38/B39/B40/B41/B42
WCDMA:B1/B5/B8-CN:Region:China
5G SA&NSA:
N1/N28/N41/N78/N79
LTE-FDD:B1/B3/B5/B8/B28
LTE-TDD:B34/B38/B39/B40/B41
WCDMA:B1/B8-NA:Region: North America
5G NR :
N2/N5/N7/N12/N13/N14/N25/N38/N41/N48/N66/N71/N77/N78
LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE-TDD:B38/B41/B42/B43/B48
WCDMA:B2/B4/B5
GPS GPS、Beidou, Galileo、GLONASS
Date collection 1D/2D scanner
(custom function)
(N1):0.3M Pixels+Code 39 5mil 65~150mm+Red light
Read code system:
2D:PDF417, QR Code, Micro QR, Data Matrix
1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey(N670)1.0M Pixels+Code 39 5mil 45~200mm+Cross laser
Read code system::
2D:QR Code, Data Matrix, PDF417,Han letter code,Dotcode
1D:UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar,MSI/MSI PLESSEY, GS1 DataBar
OCR:Support OCR-A,OCR-B
ID card (custom function) Standard second-generation offline Ministry of Public Security certified ID card reader module
UHF (custom function) (optional )
distance1:≤3M,Service frequency 840-960MHz
distance2:≤5M,Service frequency 860-960MHz
NFC High frequency (custom function) 13.56MHZ  adapt 14443A/14443B/15693 protocals
Fingerprint (custom function) 1: Ordinary industrial fingerprint
2: Fingerprint certified by the Ministry of Public Security
3: FBI certified fingerprint
Ports TYPE-C *1,Type-C USB3.0
Type -A *1,Type-A USB3.0
Earphone Jack *1,3.5mmStandard headphone jack
TF Card *1,Maximum support 256GB expansion
SIM Card *1,Standard Micro SIM card slot
HDMI *1,Micro HDMI
DC port *1, 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm)
POGO PIN *1,12Pin USB+charger
RJ45 *1,100/1000M
Product reliability Drop height 1.2m  Free fall to wooden floor
Working temperature -20℃~60℃ (custom-30℃~60℃)
Storage temperature -30℃~70℃ (custom-40℃~70℃)
Humidity Humidity: 95% Non-Condensing
Certificates IP68, 3C, CE, US military standard-810G certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test
Adapter 12V-4A,DC interface adapter
2 points Strap(Free)
4 points Strap(Optional)
Backplate bracket(Optional)
Clip bracket(Optional)
 Tempered Film(Optional)
Base (optional purchase)
Full aluminum alloy desktop bracket (optional)
Portable waterproof case (optional)
