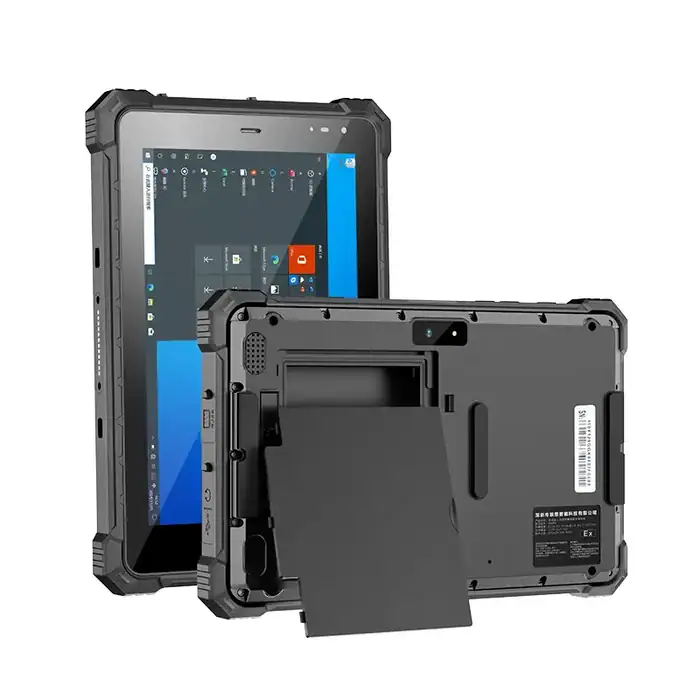

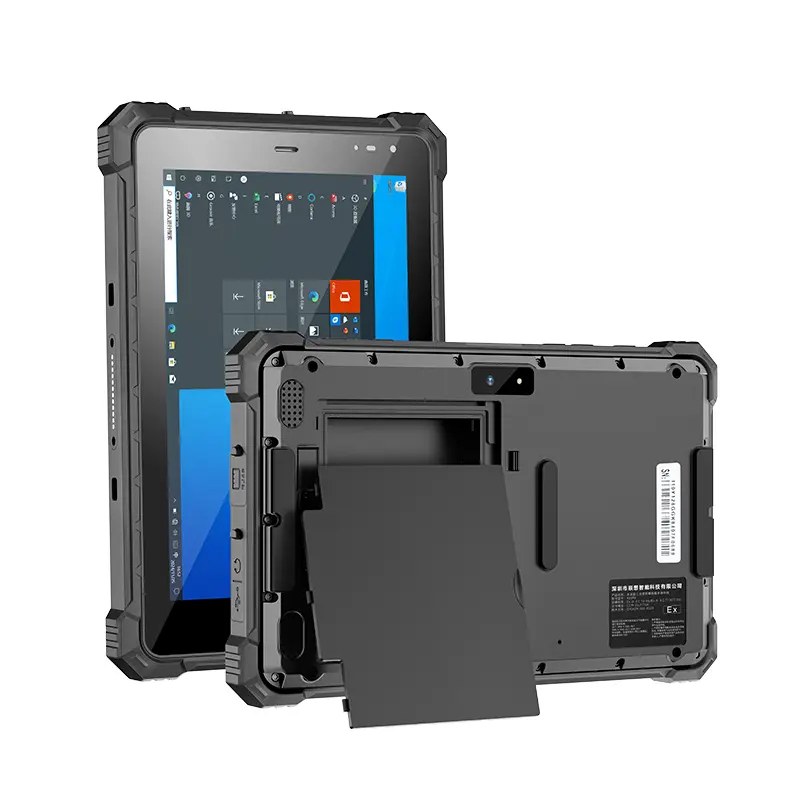

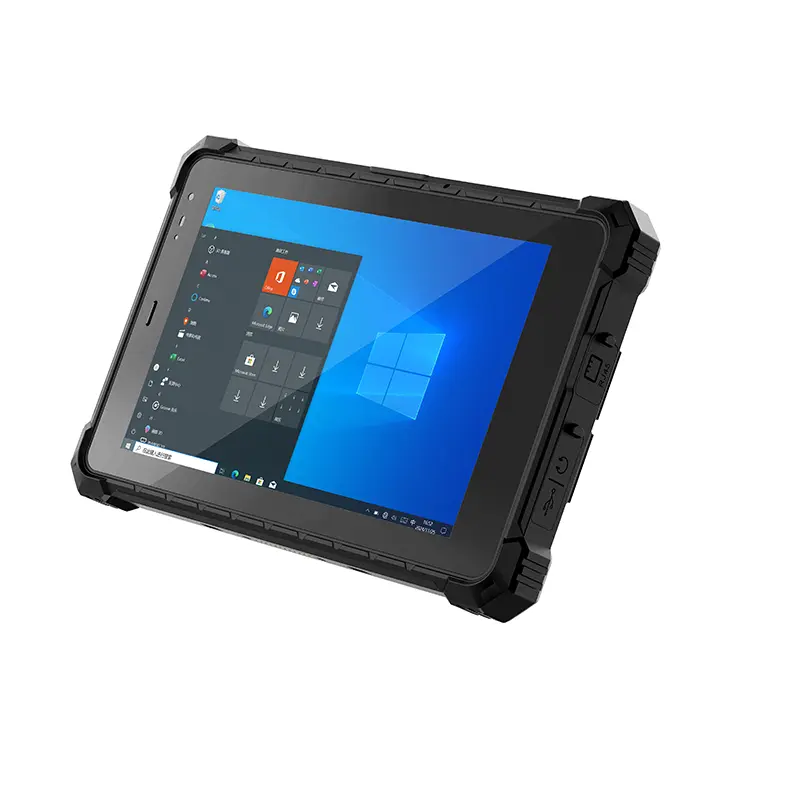

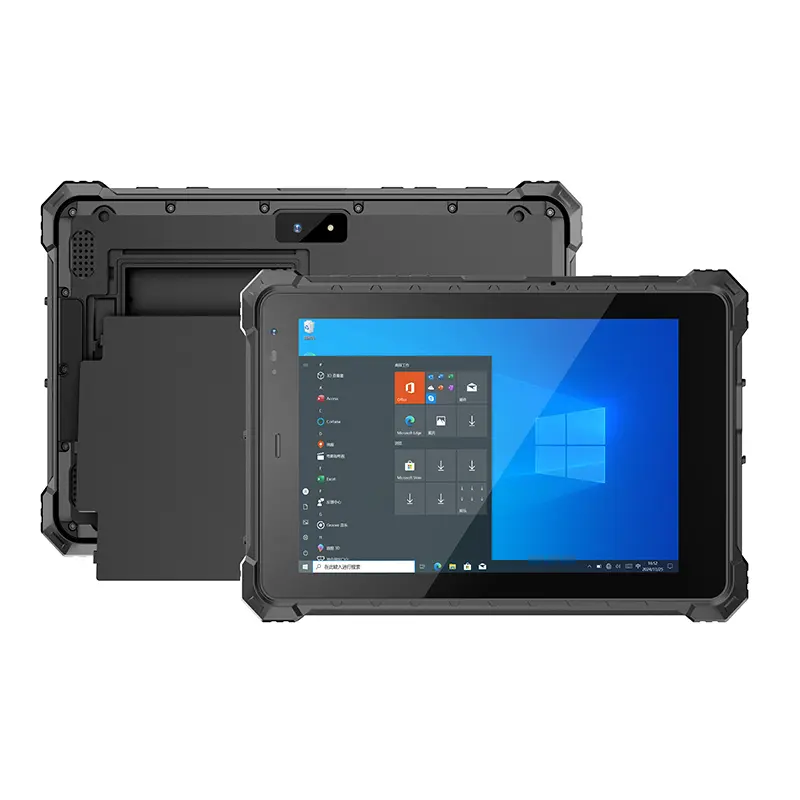

W80NX N5100 IP68 Three Proof Rugged Tablet

W80NX N5100 IP65 8inch 8+128GB Win10

Category:

Product form
Model W80NX
Explosion-proof(optional ) Petrochemical Class II
Configure 8+128G HD Highlight
8+128G FHD Highlight
16+256G FHD Highlight
Size weight Bare metal: 232.2*151.3*30.4mm/893.5g With packaging accessories: 334*175*61mm/1529.3g
color Black, color can be customized
screen size 8inch
screen resolution IPS 1280*800 /1920*1200
screen brightness 700cd/㎡
TP touch screen Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen)

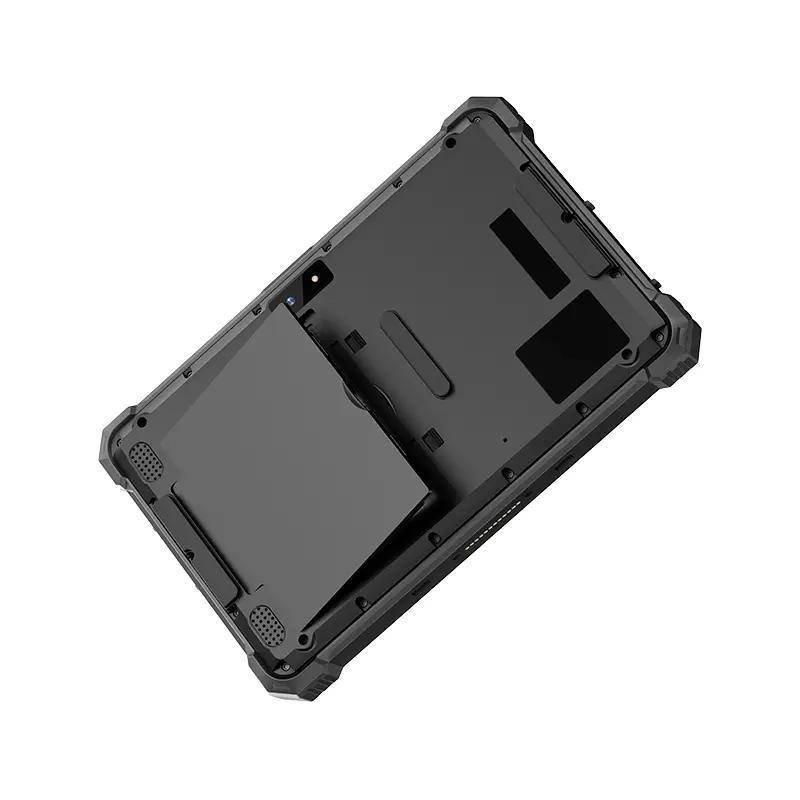

Battery 7.6V 4700mAh high voltage lithium batter,detachable
Camera Front camera: 5.0MP fixed focus
Rear camera: 8MP auto focus
Buttons Power button*1
Volume keys*2, Vol+, Vol-
Custom keys*2, P key, F key
Hardware
configeration
Speaker, receiver, microphone *2, speaker 1W/8Ω aluminum film,  waterproof speaker;
*1,  MIC,waterproof rating
CPU Intel JASPER LAKE N5100 Quad Core 4 Thread  1.1GHz-2.8GHz
RAM/ROM 8G+128GB   custom 16G+256GB
TPM Built-in TPM Security chip
Gravity sensor Support
Operation system Windows 10,   Optional Windows 11、Ubuntu 22.04.5
Wireless connection WIFI WIFI 802.11(a/b/g/n/ac/ax) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI6
Bluetooth Bluetooth 5.2  transmit distance:10m
2G/3G/4G
(custom function)
LTE-FDD:B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71
LTE-TDD:B38/39/40/41
WCDMA:B1/2/4/5/6/8/19
5G
(custom function)
-EA:Region:EMEA,Australia,Japan,Korea
5G SA&NSA:
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79
LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32
LTE-TDD:B34/B38/B39/B40/B41/B42
WCDMA:B1/B5/B8-CN:Region:China
5G SA&NSA:
N1/N28/N41/N78/N79
LTE-FDD:B1/B3/B5/B8/B28
LTE-TDD:B34/B38/B39/B40/B41
WCDMA:B1/B8-NA:Region: North America
5G NR :
N2/N5/N7/N12/N13/N14/N25/N38/N41/N48/N66/N71/N77/N78
LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE-TDD:B38/B41/B42/B43/B48
WCDMA:B2/B4/B5
Positioning system GPS、GLONASS  ,Optional Single-System BeiDou Positioning
Date collection 1D/2D scanner
(custom function)
Standard version (N1) 0.3M pixels + depth of field Code 39 5mil 65~150mm + red light
Reading code system:
2D: PDF417, QR Code, Micro QR, Data Matrix
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN- 128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-PlesseyHigh-end version (N670) 1.0M pixels + depth of field Code 39 5mil 45~200mm + cross laser
Read code system::
2D:QR Code, Data Matrix, PDF417,Han letter code,Dotcode
1D:UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar,MSI/MSI PLESSEY, GS1 DataBar
OCR:Support OCR-A,OCR-B
NFC High frequency (custom function) 13.56MHZ  adapt 14443A/14443B/15693 protocals

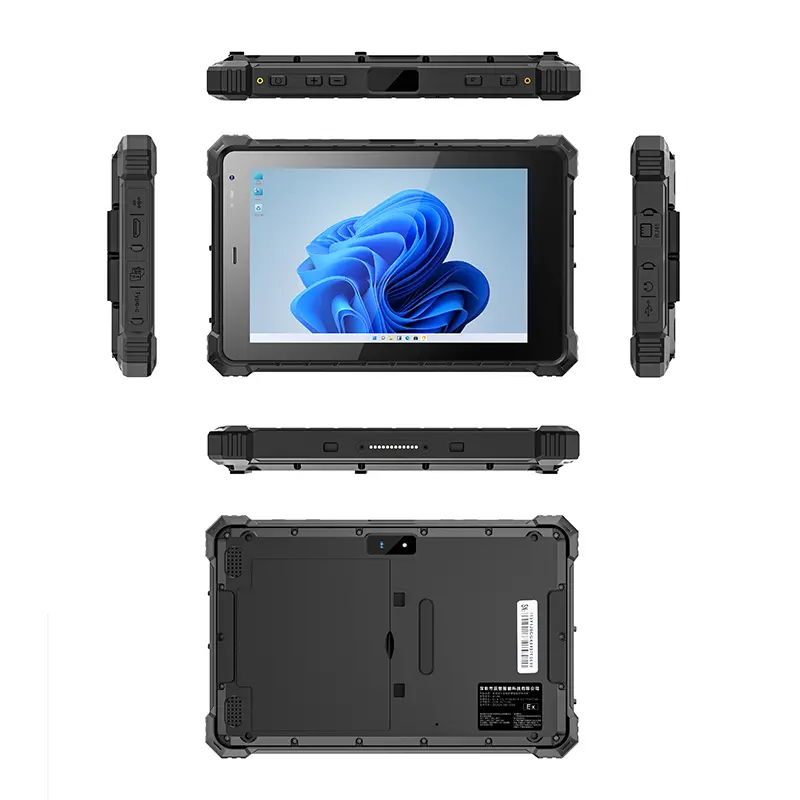

Ports TYPE-C *1,USB3.0 Support PD charging
Type -A *1,USB3.0
Earphone Jack *1,3.5mmStandard headphone jack
TF Card *1,Maximum support 256GB expansion
SIM Card *1,Standard Micro SIM card slot
HDMI *1,Micro HDMI
DC port *1, 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm)
RJ45 *1

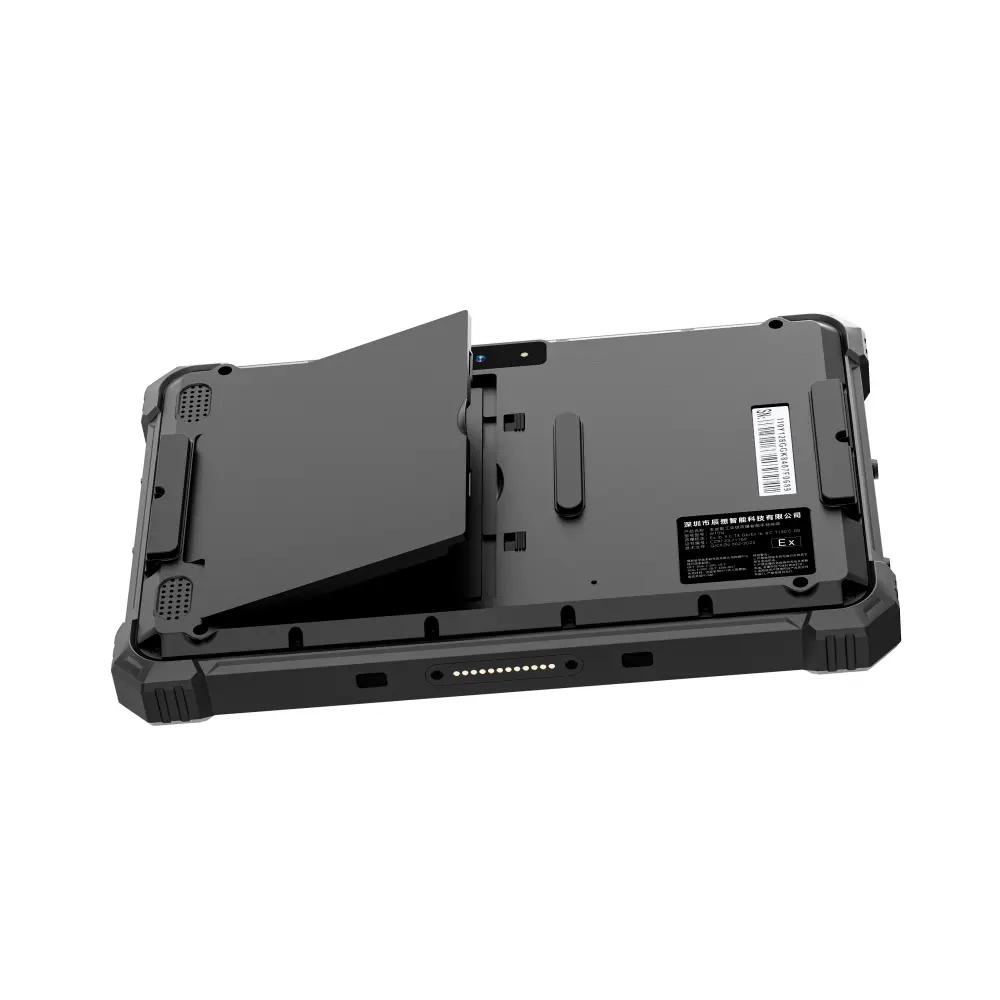

POGO PIN *1,12Pin USB+charger
Mainboard reserved expansion interface Interface requirements:3.3V-1A/5V-1A power supply, UART interface, interface level 3.3V, USB2.0 interface,5V 1A power supply
Product reliability Drop height Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test
Working temperature -20℃~60℃
Storage temperature -30℃~60℃
Humidity Humidity: 95% Non-Condensing
Certificates IP67, 3C, CE, US military standard-810H certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test
Adapter 12V-4A,DC interface adapter
2 points Strap(Free)
4 points Strap(Optional)
Carry handle(Optional)
Clip bracket(Optional)
 Tempered Film(Optional)
Base (optional purchase) 待实物图
Full aluminum alloy desktop bracket (optional)
Portable waterproof case (optional)
