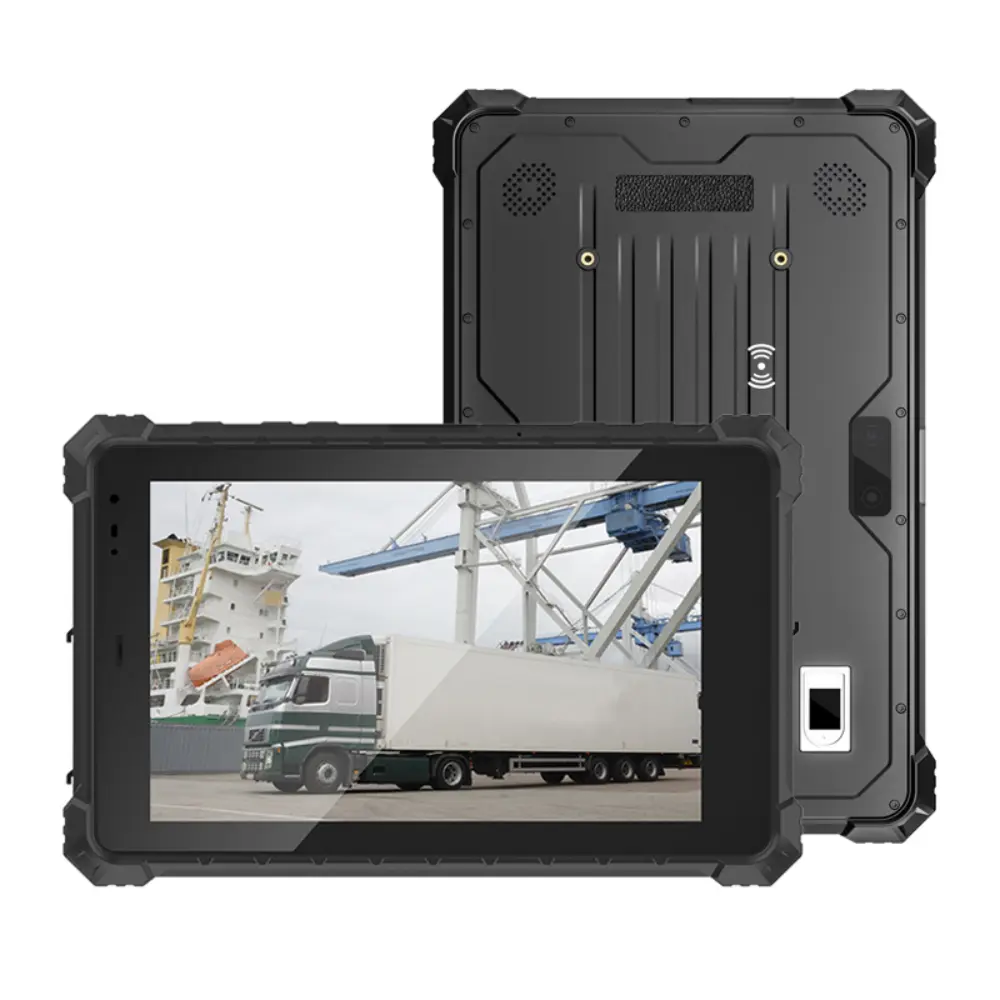

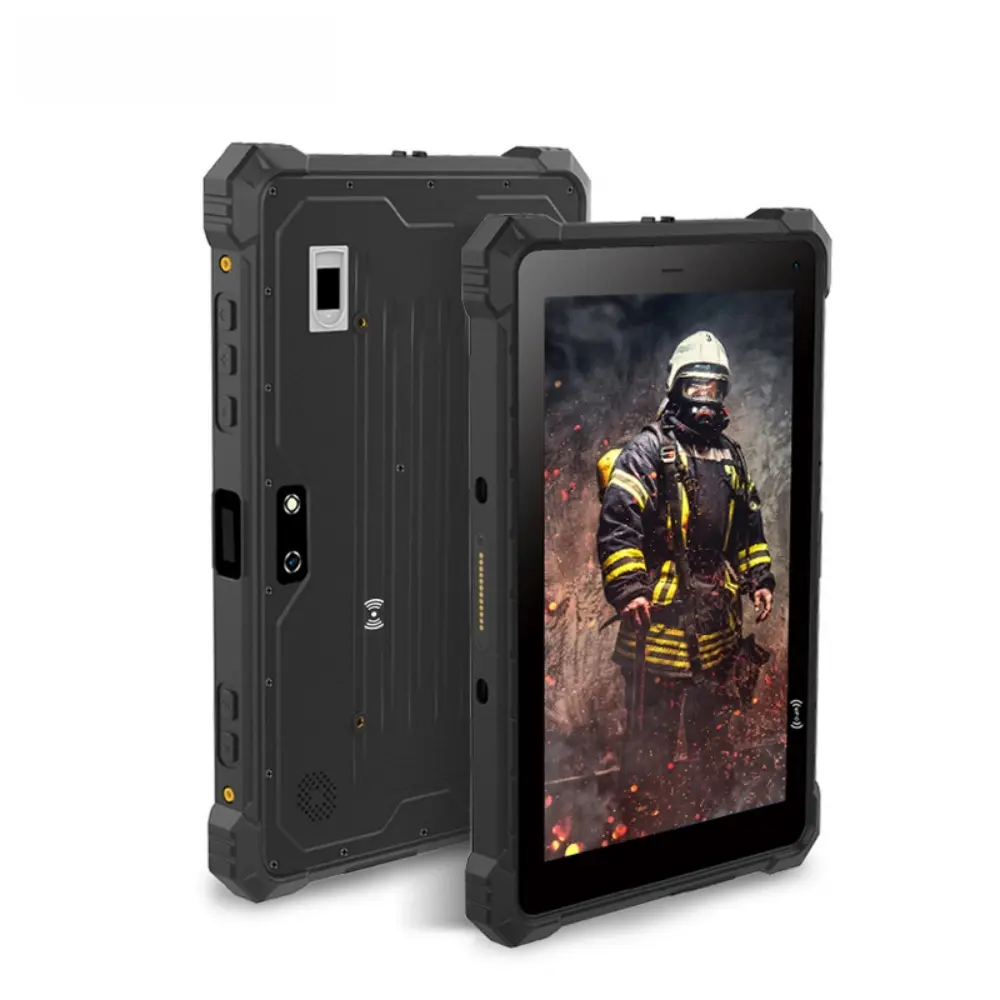

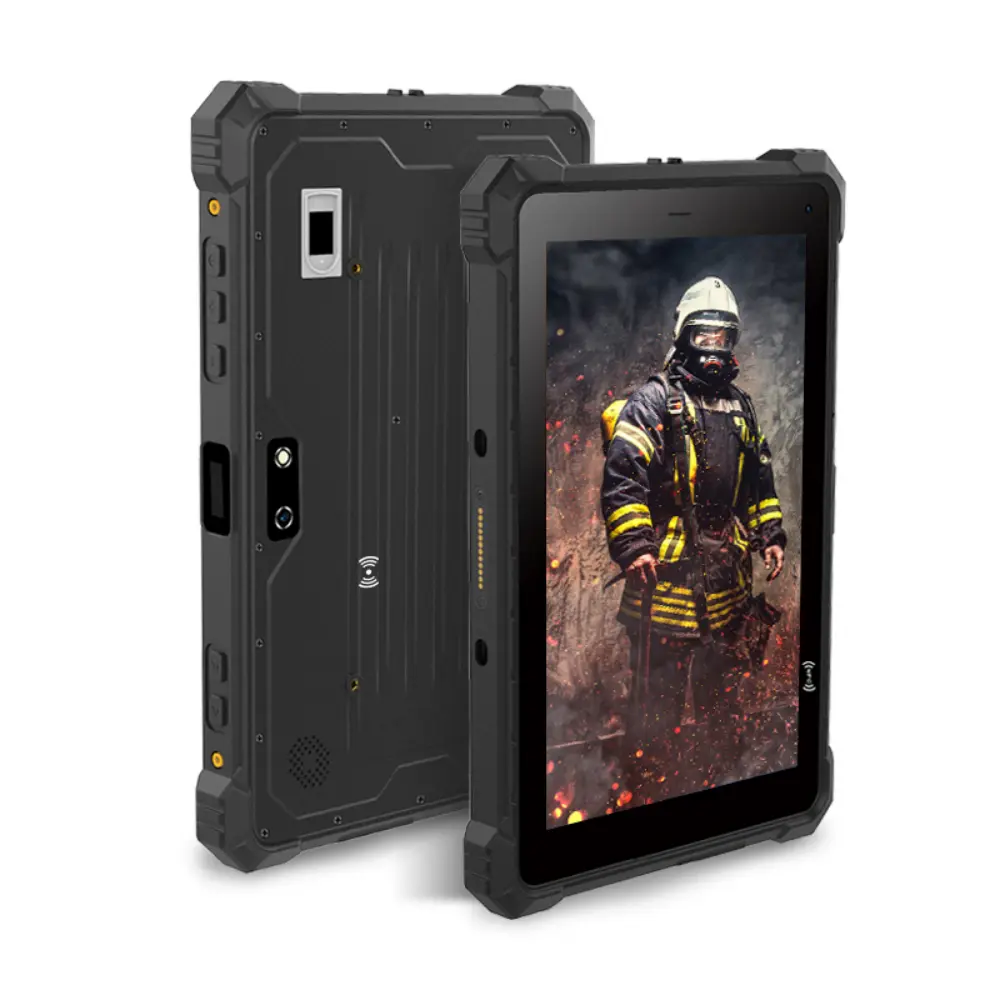

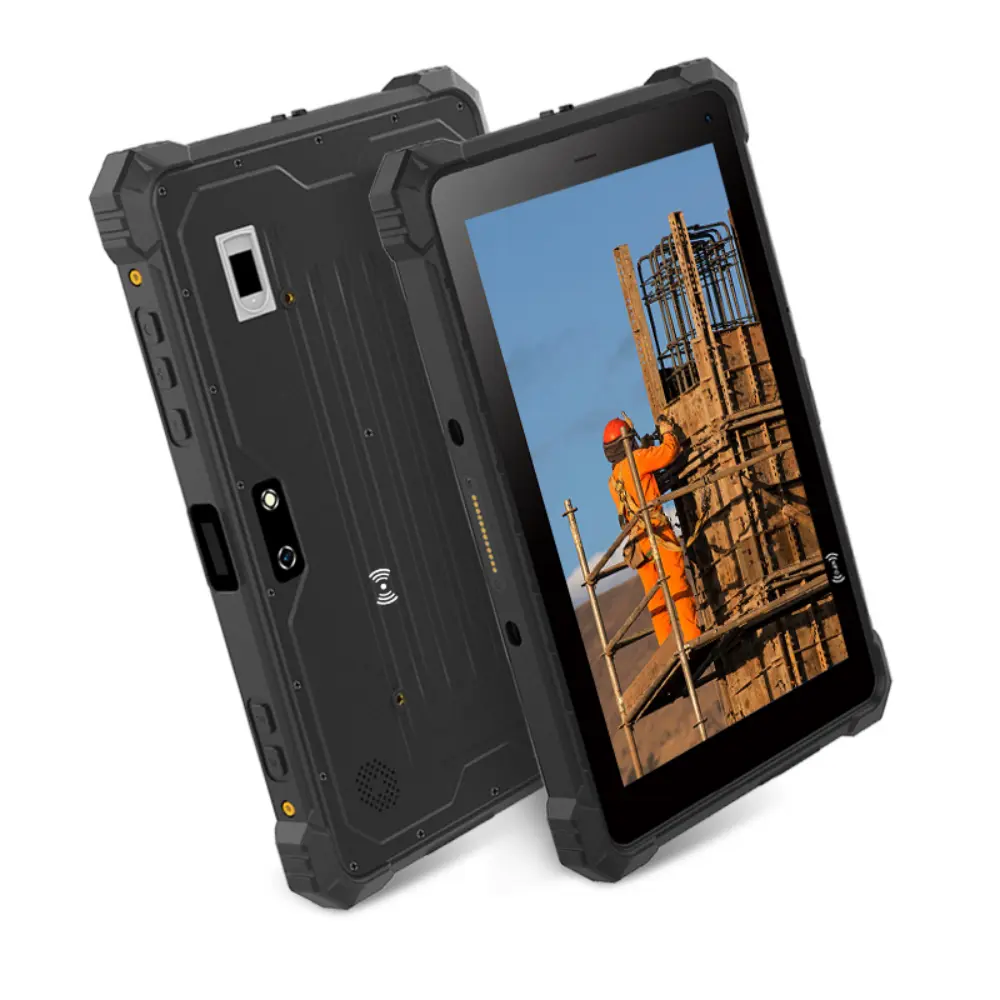

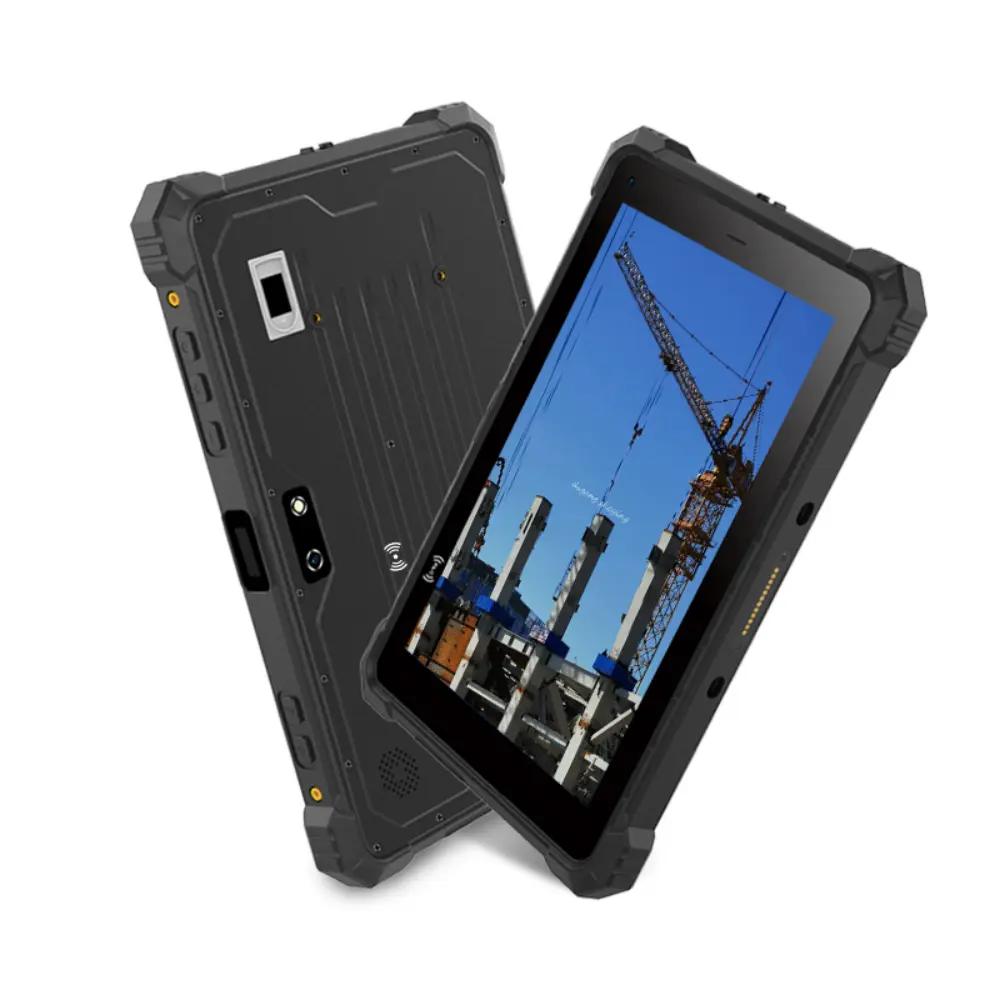

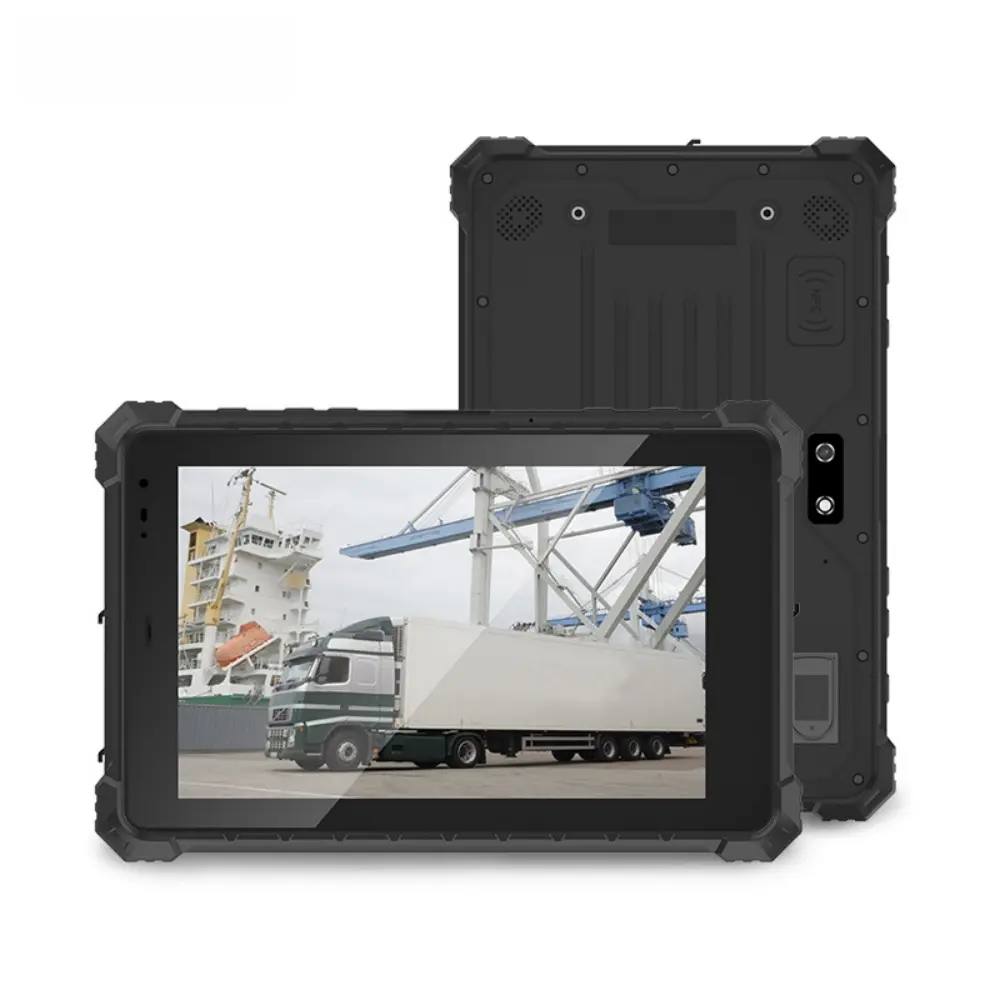

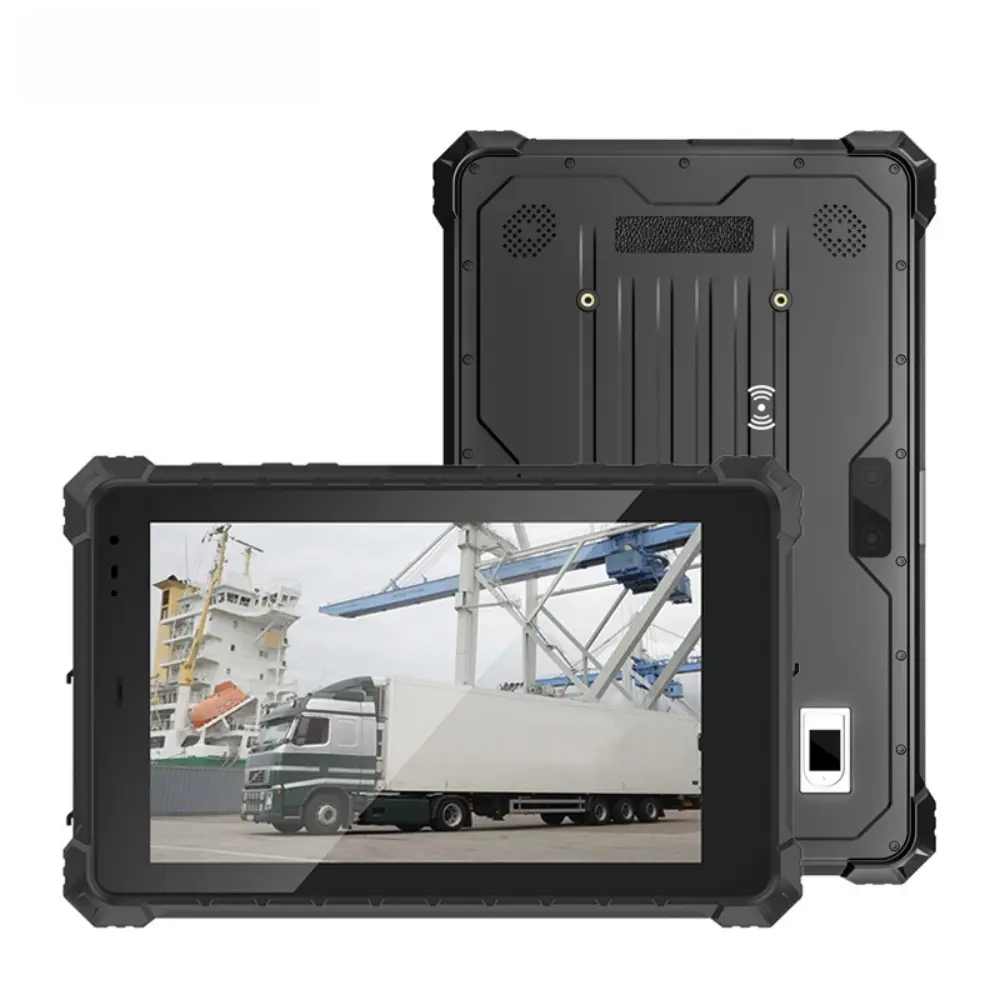

Model A10ST
Explosion-proof(optional ) Petrochemical Class II,Mining Class I,Coal Safety Class I
Configure 4+64G   HD Highlight
8+128G FHD Highlight
Customized 4+64G   FHD Highlight
8+128G HD Highlight
Size weight Bare metal: 276.0*180.5*22.5mm/1147g With packaging accessories: 371*213*61mm/1755g
Standard Packing Specification: Quantity: 10 pcs/carton;Dimension: 44*33*39cm;Gross Weight: 18.3kg
Wall hole pitch / screw 154×71.5mm/ M3*4.5mm

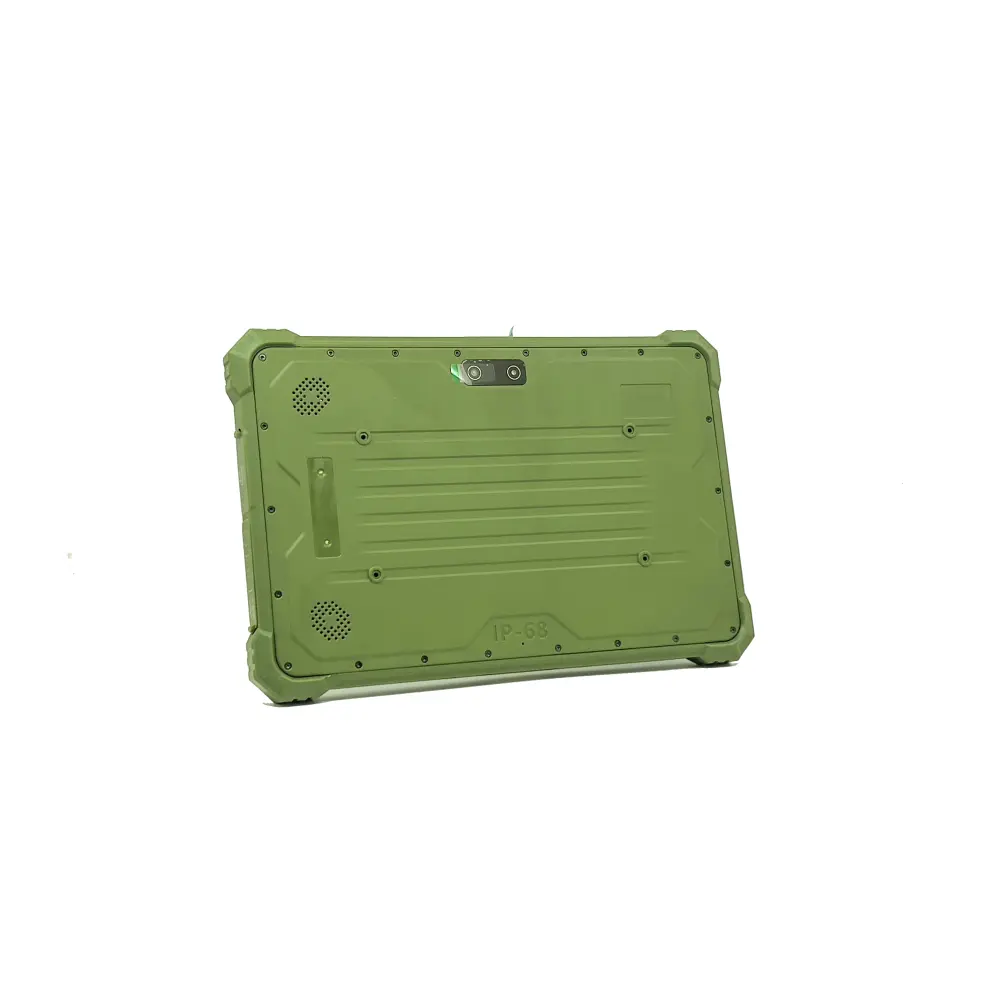

Color Black,color customizable
Screen size 10.1 inch
Resolution IPS 1280*800 /1920*1200
Screen brightness 700cd/㎡, can be customized1000cd/㎡
Tp touch screen 10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen)
Battery 10000mAh, 3.8v high-voltage lithium battery, non-removable, battery life ≥10h (1080P+50% brightness)
camera Front camera: 8MP fixed focus(custom16MP)
Rear camera: 16MP auto focus  1A true flash
Buttons Power button*1
Volume keys*2, Vol+, Vol-
Custom keys*2, P key, F key
Hardware
configeration
Speaker, receiver, microphone *2, speaker 1.2W/8Ω aluminum film,  waterproof speaker;
*1, waterproof handset
*1,  MIC,waterproof rating
CPU MTK6771,octa core,2.0GHZ
RAM/ROM 4GB+64GB/  8GB+128GB(optional)
Gravity sensor YES
compass YES
Gyro YES
Light sensor YES
Distance sensor YES
Fm Radio YES
System Operation system Android 10
Wireless connection WIFI WIFI 802.11(a/b/g/n/ac)  Frequency 2.4G+5.8G Dual frequency WIFI
Bluetooth Bluetooth 4.2 (BLE) class1 transmit distance:10m
2G/3G/4G GSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
TD-SCDMA: B38/B39/B40/B41
CDMA2000
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66/B71
LTE-TDD: B38/B39/B40/B41
GPS GPS、Beidou,Galileo、GLONASS
NFC I²C interface, 13.56MHZ supports 14443A/14443B/15693 and other protocols, which is consistent with the NFC application of Android phone type
(The card reading area is default on the back of the fuselage and can be customized in the front)
Date collection 1D/2D scanner
(function customizable)
Standard version (N1) 0.3M pixels + depth of field Code 39 5mil 65~150mm + red light
Reading code system:
2D: PDF417, QR Code, Micro QR, Data Matrix
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN- 128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-PlesseyHigh-end version (N670) 1.0M pixels + depth of field Code 39 5mil 45~200mm + cross laser
Read code system::
2D:QR Code, Data Matrix, PDF417,Han letter code,Dotcode
1D:UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar,MSI/MSI PLESSEY, GS1 DataBar
OCR:Support OCR-A,OCR-B
Id card identification(custom function) Standard second-generation offline Ministry of Public Security certified ID card reader module
UHF(custom function) (optional )
distance1:≤3M,Service frequency 840-960MHz
distance2:≤5M,Service frequency 860-960MHz
distance3:≤15M,Service frequency 840-960MHz
LF(custom function) support 125kHz    distance:1-3cm
Finger print identification
(custom function)
1: Ordinary industrial fingerprint
2: Fingerprint certified by the Ministry of Public Security
3: FBI certified fingerprint
Intercom hand microphone (customized function) Customized optional aviation plug or serial port connection
RTK High-Precision Positioning (Custom Function)​ Positioning Accuracy
Standalone (RMS): Horizontal 1.5 m  Vertical 2.5 m
DGPS (RMS):​Horizontal 0.4 m Vertical 0.8 m
RTK (RMS):​Horizontal 1 cm + 1 ppm  Vertical  1.5 cm + 1 ppm

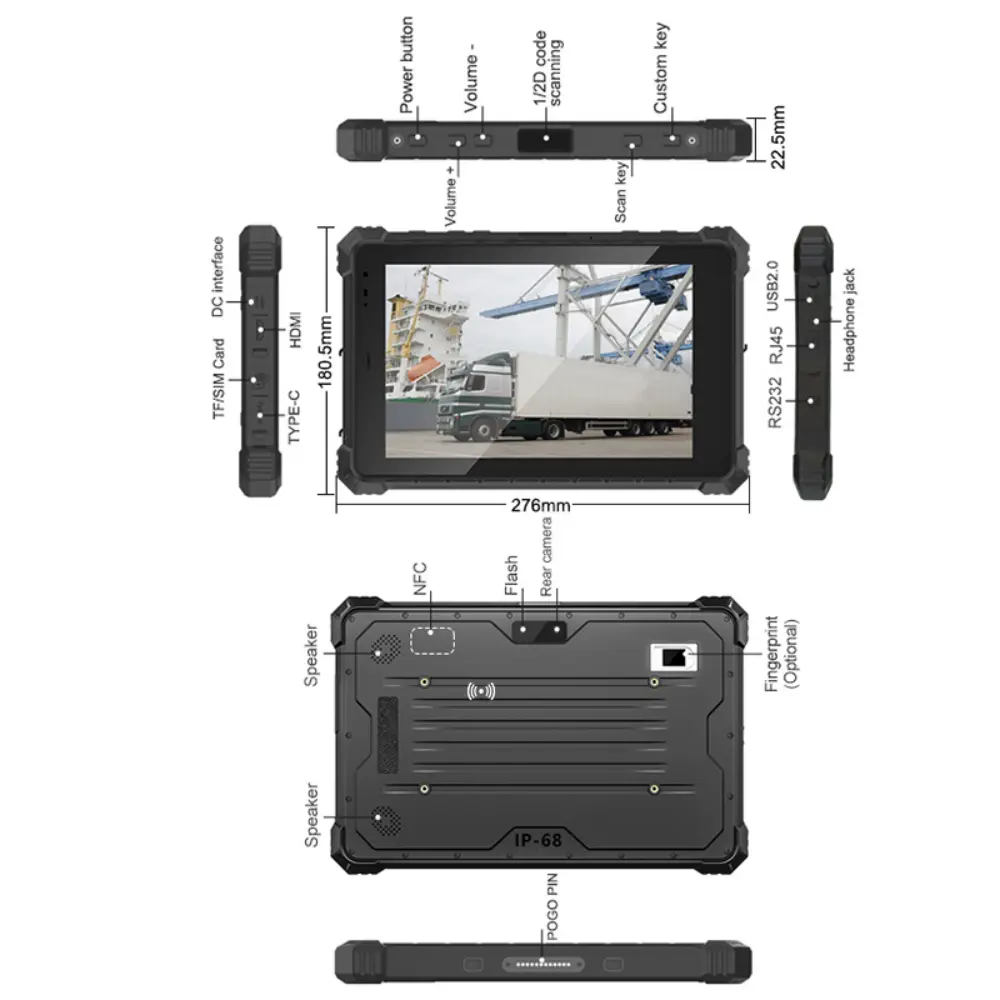

Ports TYPE-C *1,Type-C USB2.0 adapt OTG
Type -A *1,Type-A USB2.0
Earphone Jack *1,3.5mm Standard Earpiece jack
TF Card *1,Maximum support 256GB expansion
SIM Card *1,Standard Micro SIM card slot
MINI HDMI *1,Mini HDMI
DC  jack *1,  5V/3A   3.5mm
POGO PIN *1   ,12Pin USB+Charge
RS232(serial port) *1
RJ45 jack *1
Mainboard reserved expansion interface Interface requirements:3.3V-1A/5V-1A power supply, UART interface, interface level 3.3V, USB2.0 interface,5V 1A power supply
Product reliability Drop height 1.2m Free fall to wooden floor
Working temperature -20℃~60℃ (custom-30℃~60℃)
Storage temperature -30℃~70℃ (custom-40℃~70℃)
Humidity Humidity: 95% Non-Condensing
Certificates IP68,3C,CE,US military standard-810G certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test
Other CE-NB YES
MIL-STD-810G YES
CCC YES
Adaptor 5V/3A,DC interface adapter
Option accessories Strap/charging base/stand
2 points Strap(Free)
4 points Strap(Optional)
Backplate bracket(Optional)
Clip bracket(Optional)
Extended interface car mount (optional)
 Tempered Film(Optional)
Base (optional purchase)
Full aluminum alloy desktop bracket (optional)
Portable waterproof case (optional)
Leather case(optional)
