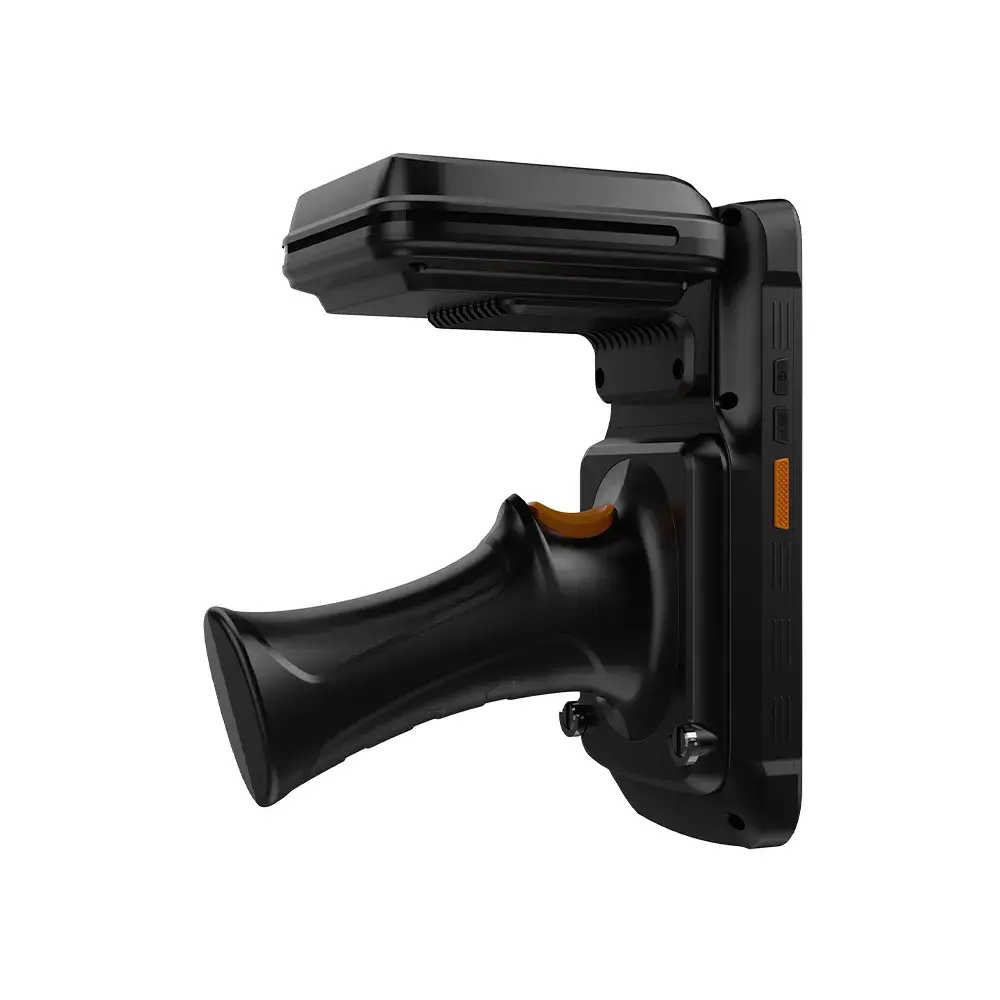

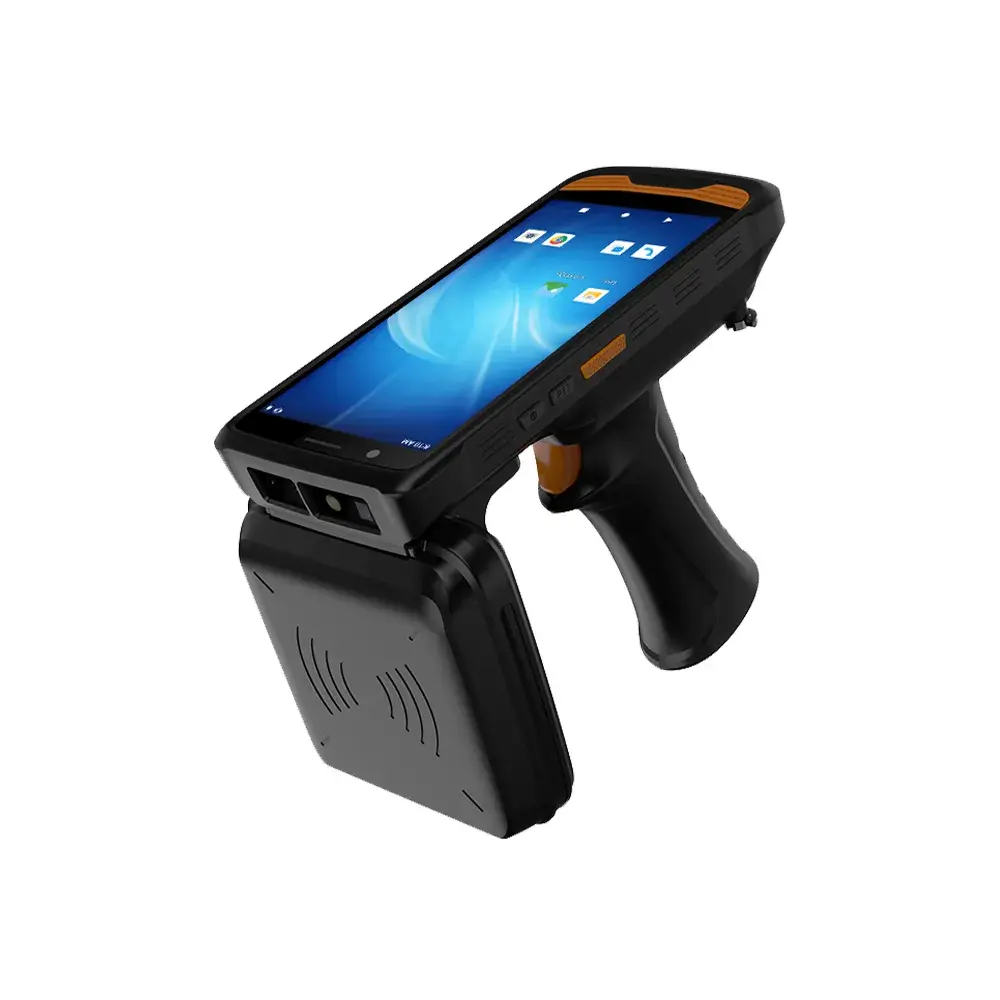

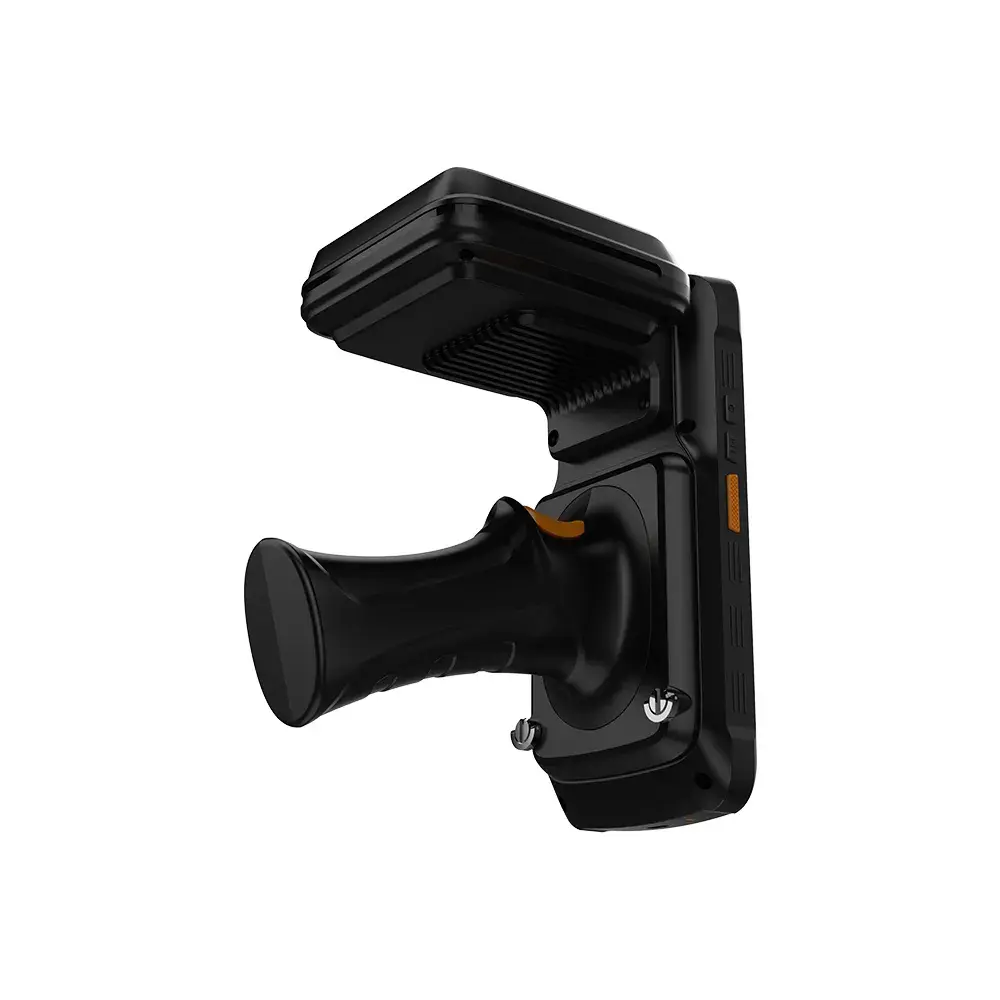

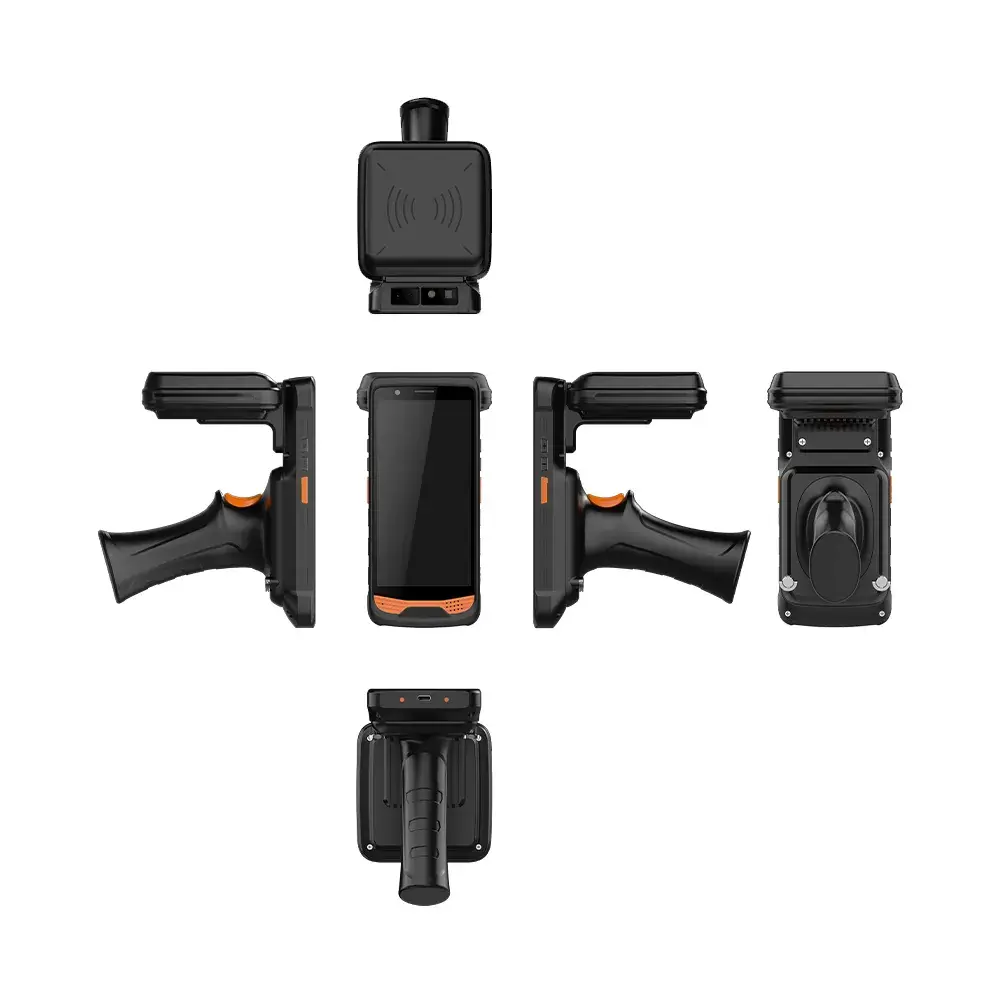

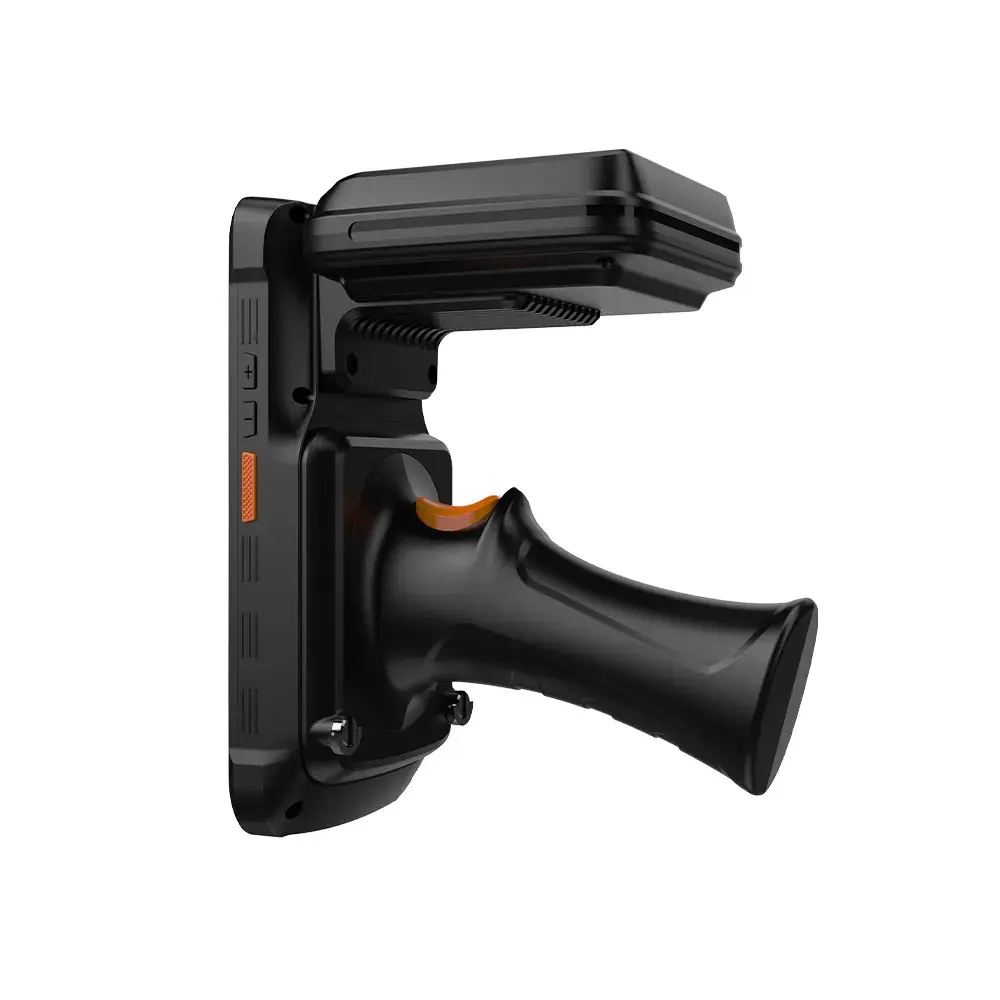

R366C-S Handheld Mobile Terminals
UHF RFID handheld terminal for inventory accuracy, asset tracking, and field identification.
5.5 inch Qualcomm Octa-core processor Impinj E710
Physical Parameter
| Size | 170mm * 79mm * 22.6mm |
| Weight | <700g |
| Display Screen | 5.5 inch IPS HD+ screen(720*1440) |
| Touching Screen | Multi-touch screen |
| Battery Capacity | 3.8V/10000mAh detachable |
| Interface | Nano-SIM*2 TF*1 PSAM*2 (optional) Type-C support OTG support Power Delivery |
| Audio | Loudspeaker Microphone Support voice calls |
| Camera | Front 8 MP(optional) Rear 16 MP autofocus camera with flash |
| Notify | Tricolor breathing light motor |
| Side Key | Power button Volume button+ Volume button- SCAN button*2 |
| Sensor (Optional) | Gravity sensor/Gyroscope sensor/ Magnetic sensor |
Performance parameter
| CPU | QualcommSM6225 Octa-core 2.4Ghz |
| OS | Android 13.0 |
| RAM+ROM | 4+64GB |
| Extra Memory | Expansible through TF, support 256GB |
Environmental Parameter
| Operating Temperature | -10°C-50°C |
| Storage Temperature | -40°C-70°C |
| Environment Humidity | 5%RH-95%RH(No condensation) |
Accessories
| Standard Accessories | Power adapter*1 USB data line*1 Battery*1 Protective film*1 Manual*1 |
Communication Transmission
| WLAN | Dual-band WiFi (2.4GHz/5Ghz) Support IEEE 802.11 a/b/g/n/ac/ax ready |
| WWAN | CN Version (China/India) 2G: GSM: GSM/GPRS/EDGE EGSM900/DCS1800 3G: WCDMA: B1/B8 4G: FDD-LTE: B1/B3/B5/B8; TDD-LTE: B34/B38/B39/B40/B41(2535-2655MHz) EAU Version (Europe/The Middle East/Africa/Korea/Thailand/Australia) 2G: GSM: GSM850/EGSM900/PCS1900/DCS1800 3G: WCDMA: B1/B2/B5/B8 4G:FDD-LTE: B1/B3/B5/B7/B8/B20/B28; TDD-LTE: B38/B40/B41(2496-2690MHz) |
| Bluetooth | BT5.1 |
| GNSS | GPS/GLONASS/BeiDou |
UHF Function
| Module | Impinj E710 |
| Frequency | FCC(America)902-928MHz; or ETSI(Europe)865-868MHz; or SRRC-MII(China)840-845MHz 920-925MHz |
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Reading Distance | ≤10m 4dbi antenna |
| Rates | ≥900tags/s |
Optional Function
| 2D Scanning Engine | Scanning Accuracy: ≥3mil |
| PSAM | Protocol: ISO/IEC 7816-1/2/3/4 Channels: PSAM slot *2 |
