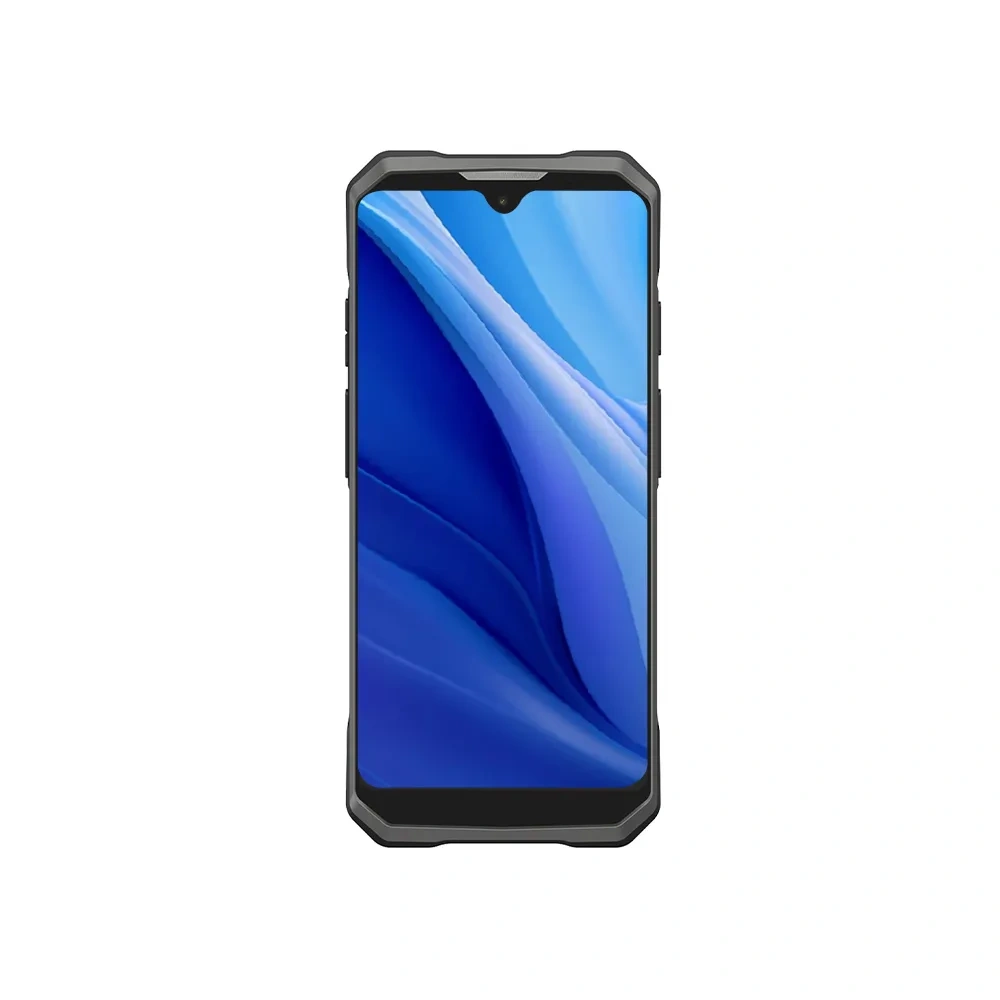

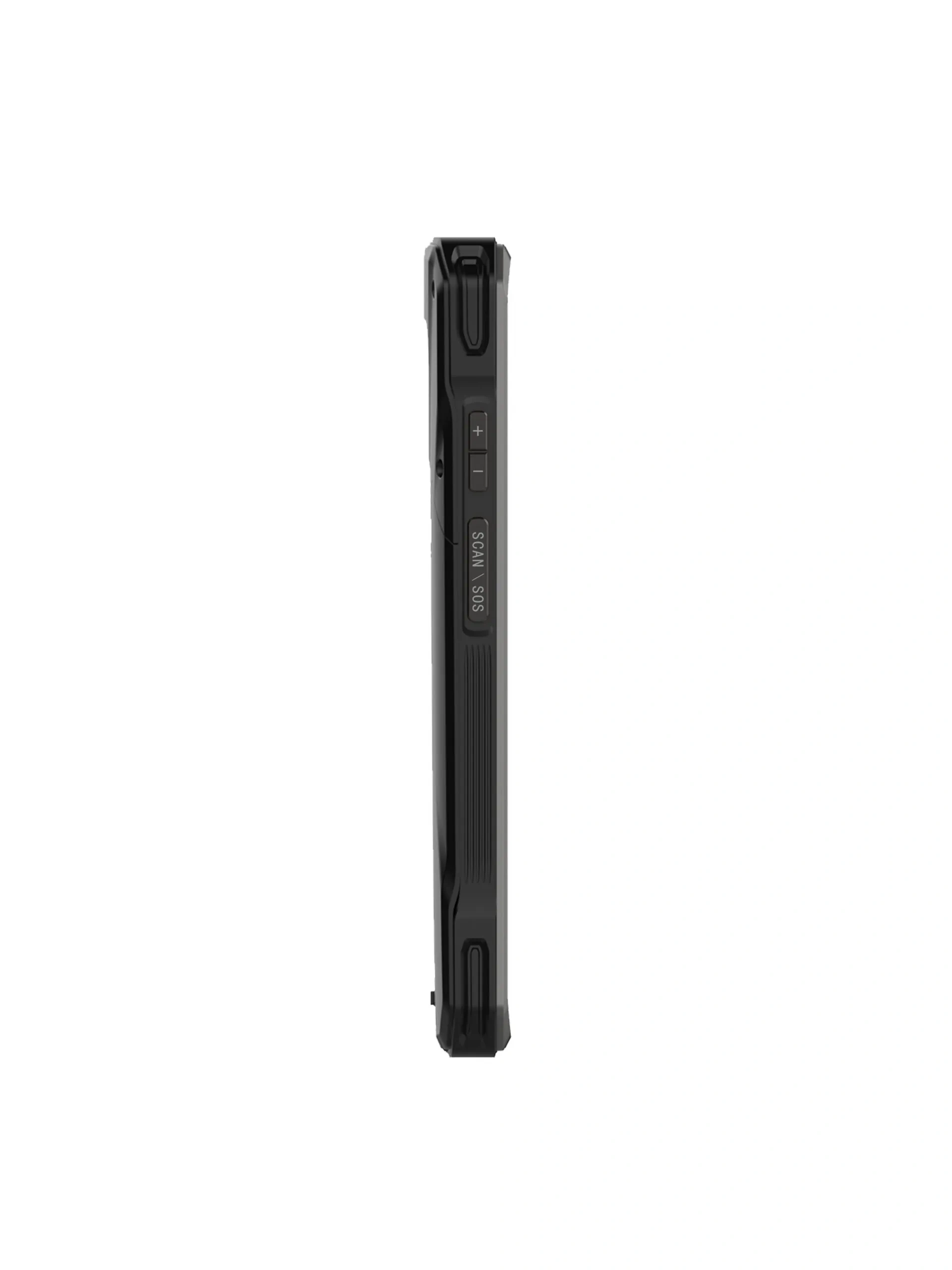

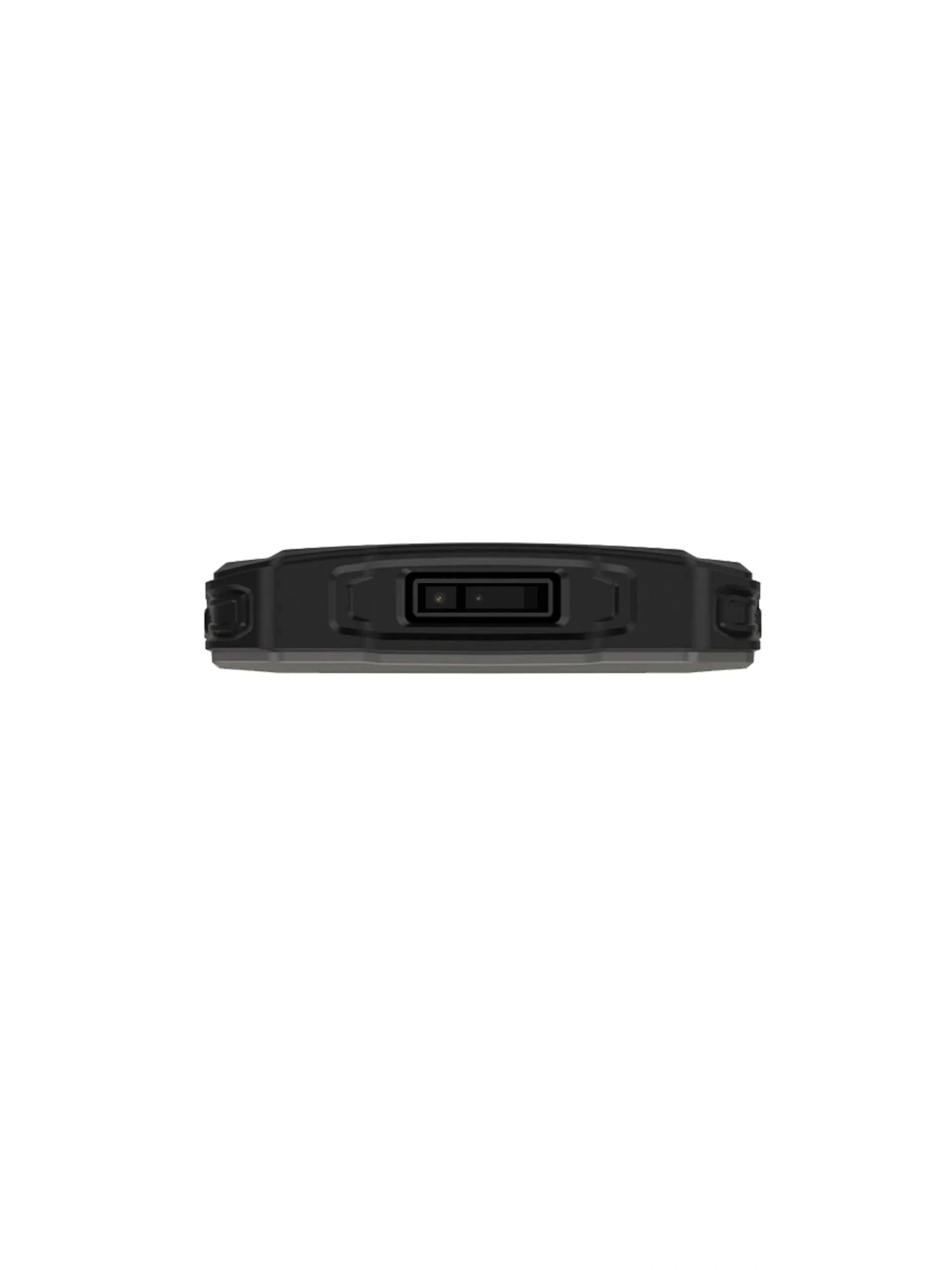

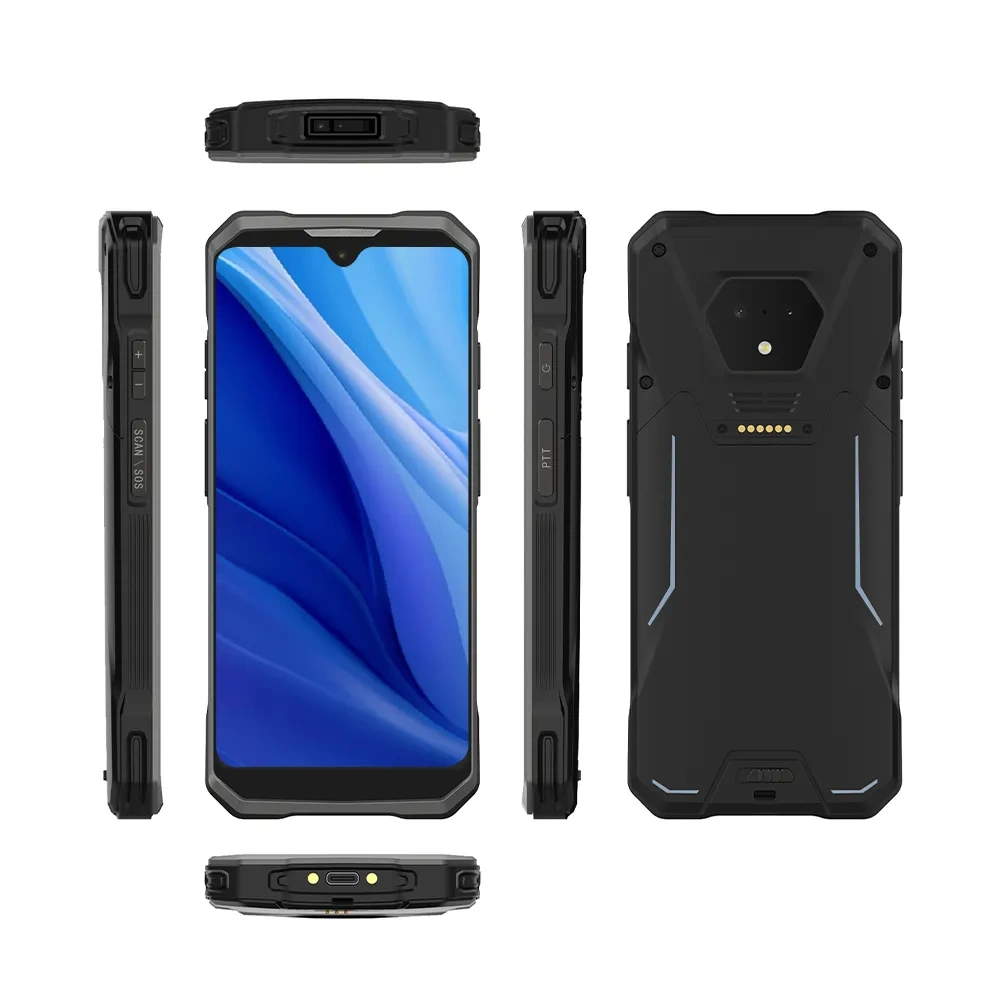

RS51 Handheld Mobile Terminals

Enterprise handheld terminal for mixed-environment deployments with strong wireless connectivity.

Physical Parameter

Size 172mm*76.6mm*16.5mm
Weight <500g
Display Screen 6.3 inch IPS FHD+ screen((1080*2340)
Touching Screen 5 point G+F+F capacitive screen
Battery Capacity 3.8V /5000mAh detachable
Interface Nano-SIM*2 TF*1(2/3) Type-C support OTG support Power Delivery 2pins Pogo Pin
Audio Loudspeaker Microphone Support voice calls
Camera Front 8 MP Rear 16 MPautofocus camera with flash
Notify Tricolor breathing light motor
Key Power button Volume button+ Volume button- SCAN button Fn
Sensor Gravity sensor/Gyroscope sensor/ Magnetic sensor

Communication Transmission

WLAN Dual-band WIFI (2.4GHz/5Ghz)Support IEEE 802.11 a/b/g/n/ac/ax ready
WWAN CN Version (China/India)2G: GSM: GSM/GPRS/EDGE EGSM900/DCS18003G: WCDMA: B1/B84G: FDD-LTE: B1/B3/B5/B8;TDD-LTE: B34/B38/B39/B40/B41(2535-2655MHz)EAU Version (Europe/The Middle East/Africa/Korea/Thailand/Australia)2G: GSM: GSM850/EGSM900/PCS1900/DCS18003G: WCDMA: B1/B2/B5/B84G:FDD-LTE: B1/B3/B5/B7/B8/B20/B28;TDD-LTE: B38/B40/B41(2496-2690MHz)
Bluetooth BT5.1
GNSS GPS/Glonass/Galileo

Standard function

NFC Frequency: 13.56MHz Protocol standard: ISO14443A/B,ISO15693, NFC Label standard: M1(S50 S70) CPU NFTags Read-write distance: 2-3cm

Performance parameter

CPU QualcommSM6225 Octa-core 2.4Ghz
OS Android 13.0
RAM+ROM 4+64GB
Extra Memory Expansible through TF, support 256GB

Accessories

Standard Accessories Power adapter*1 USB data line*1 Battery*1 Protective film*1 Manual*1 Wrist strap*1

Optional Function

2D Scanning Engine Scanning Accuracy: ≥3mil
Independent Beidou Support independent Beidou positioning, RTK accurate positioning

Environmental Parameter

Operating Temperature -10°C-50°C
Storage Temperature -40°C-70°C
Environment Humidity 5%RH-95%RH(No condensation)
Ingress Protection IP67
Dropping Height 1.2M
